IGNITION COIL & SPARK PLUG / GLOW PLUG

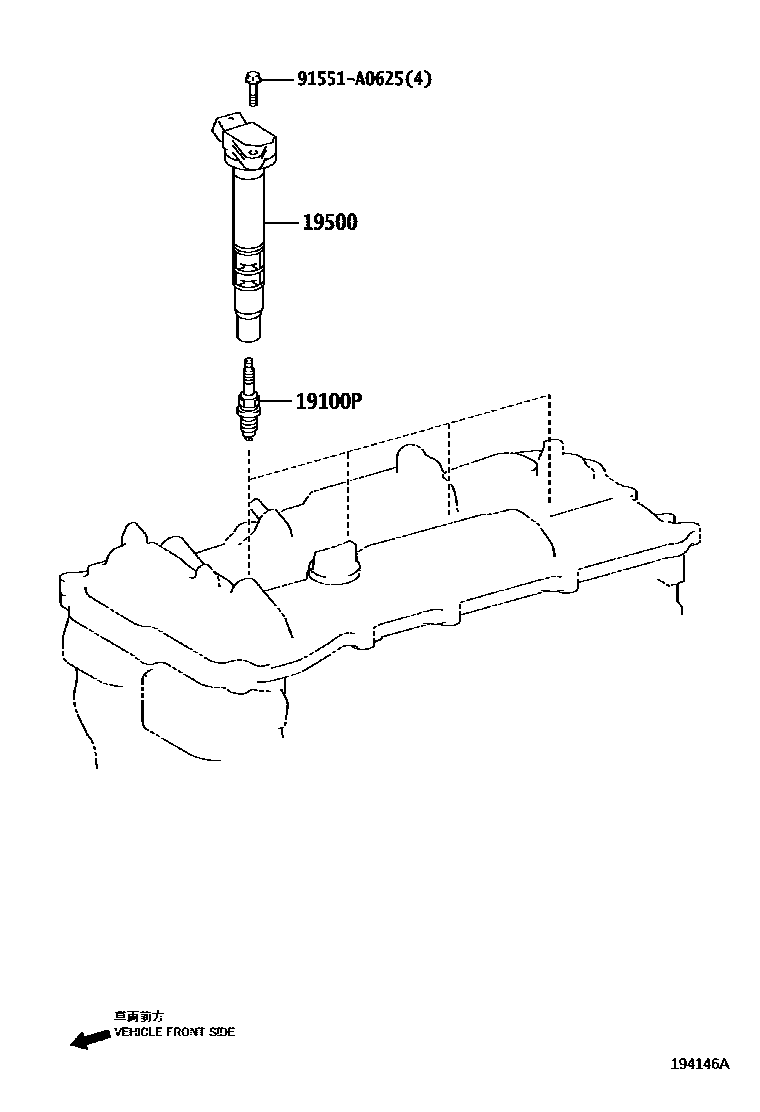

Parts diagram

19100PPLUG, SPARK

main90919-01249×6i201304-201508

FK20HBR11

main90919-01263×4i201304-201508

FK20HBR8

main90919-01276×4i201508-201610

DILFR7K9G

19500COIL ASSY, IGNITION

main90919-02256×4i201304-201508

main90919-02269×4i201610-201804

91551A0625

main91551-A0625

3 parts on this diagram · 3 diagrams in section
