V-BELT

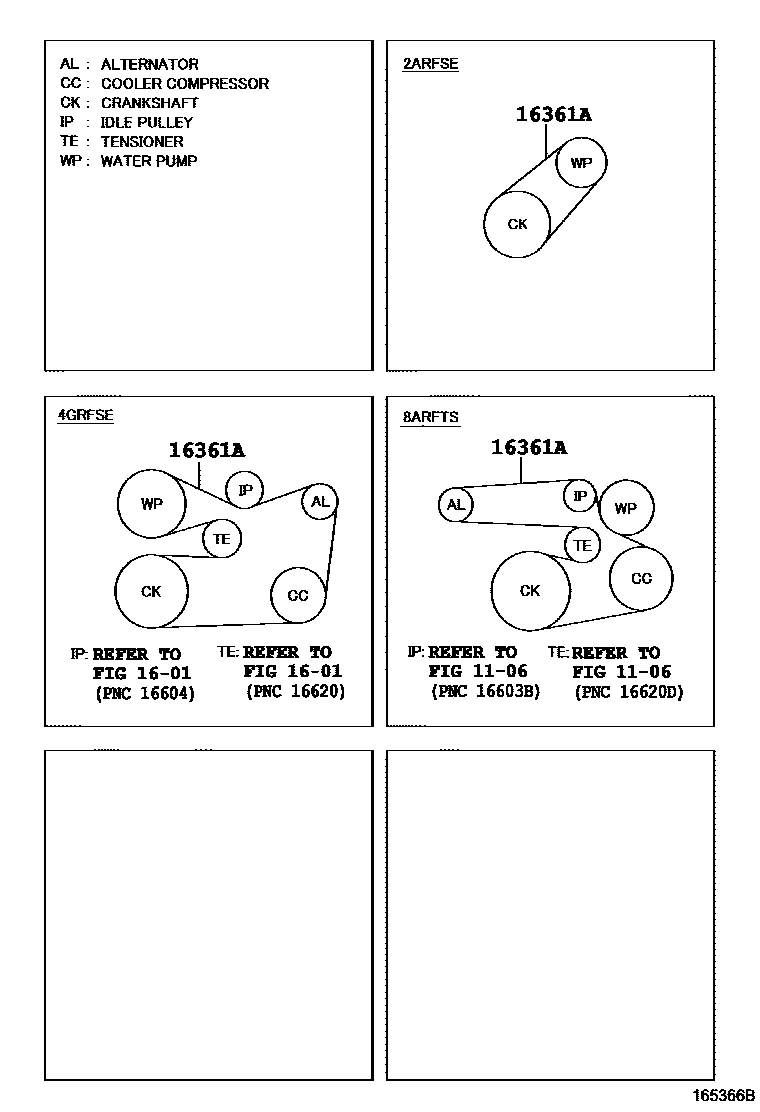

Parts diagram
1106
1601
16361ABELT, V(FOR FAN & ALTERNATOR)
main90916-02714i201304-201511
sub90916-02742
main90916-02733i201508-201804
main90916-02742i201512-201610
main99367-C1550i201304-201508
sub99367-K1550

3 parts on this diagram · 1 diagram in section
