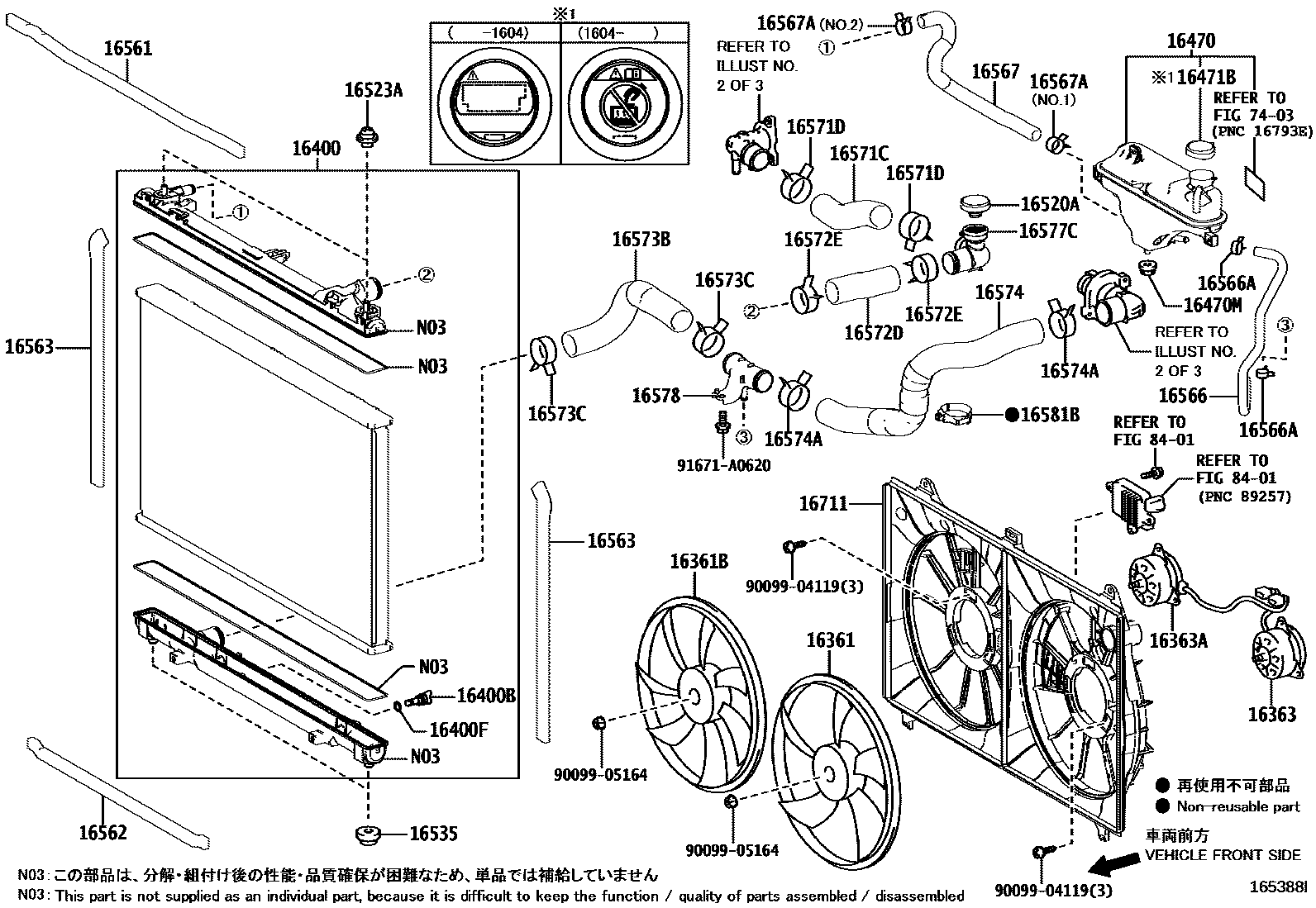

RADIATOR & WATER OUTLET
16361FAN
ISRAEL SPEC&TOWING PACKAGE-WITHOUT
16361BFAN, NO.2
ISRAEL SPEC&TOWING PACKAGE-WITHOUT
16363MOTOR, COOLING FAN
ISRAEL SPEC&TOWING PACKAGE-WITHOUT
16363AMOTOR, COOLING FAN, NO.2
ISRAEL SPEC&TOWING PACKAGE-WITHOUT
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
16562SEAL, RADIATOR TO SUPPORT, NO.2
16563SEAL, RADIATOR TO SUPPORT, NO.3
16566ACLIP(FOR RESERVE TANK OUTLET)
16567HOSE(FOR RADIATOR RESERVE TANK)
16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)
NO.1:REFER ILLUST.
NO.1,2:REFER ILLUST.
NO.2:REFER ILLUST.
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16574HOSE, RADIATOR, NO.4
16574ACLIP, RADIATOR HOSE, NO.4
16577CPIPE, RADIATOR
16578PIPE, RADIATOR, NO.2
16581CLAMP, HOSE(FOR WATER HOSE)
16581BCLAMP, HOSE(FOR RADIATOR HOSE)
16711SHROUD, FAN
ISRAEL SPEC&TOWING PACKAGE-WITHOUT
7403
8401
9009904119
main90099-04119
9009905164
main90099-05164
91671A0620
main91671-A0620
39 parts on this diagram · 13 diagrams in section
