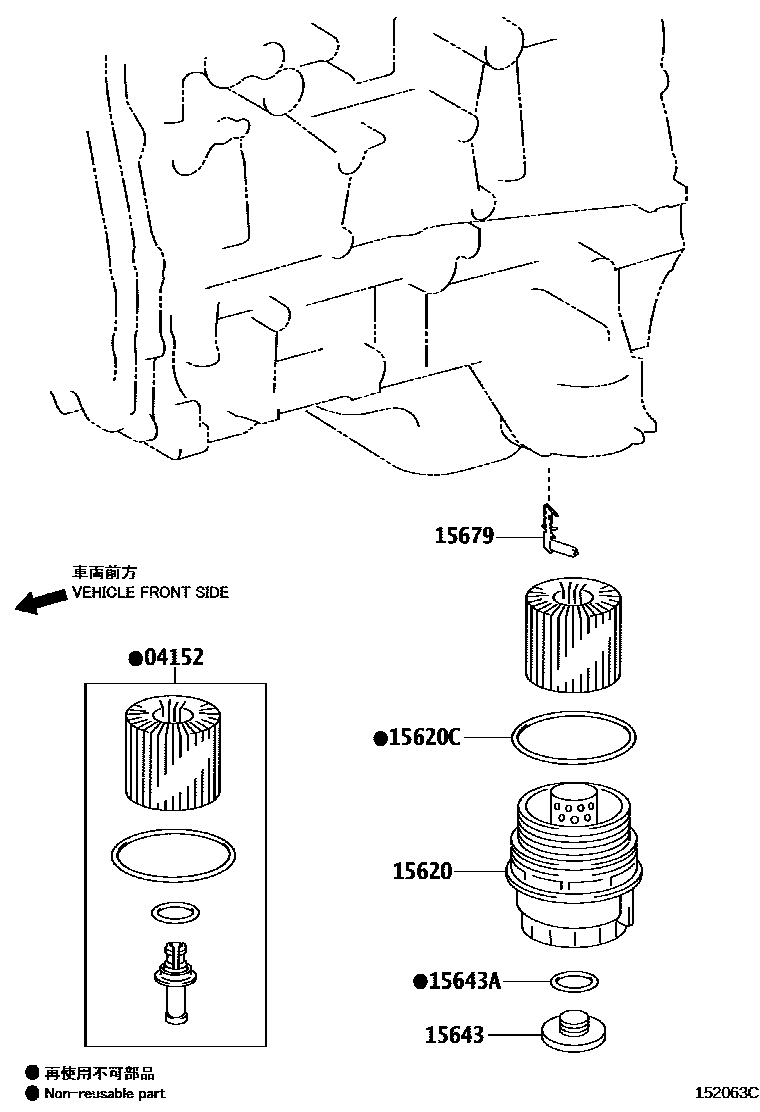

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-31080i4GRFSE..GSE30201304-201508

main04152-31090i2ARFSE..AVE30201304-202009

15620CAP ASSY, OIL FILTER

main15620-31040i4GRFSE..GSE30201304-201508

main15620-36020i2ARFSE..AVE30201304-201804

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2ARFSE..AVE30201304-201804

15643PLUG, OIL FILTER DRAIN

main15643-31050i2ARFSE..AVE30201304-201804

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2ARFSE..AVE30201304-201804

15679CLIP, OIL FILTER BRACKET

main15679-37010i2ARFSE..AVE30201304-201408

sub15679-37011

main15679-37011i2ARFSE..AVE30201409-201804

6 parts on this diagram · 2 diagrams in section
