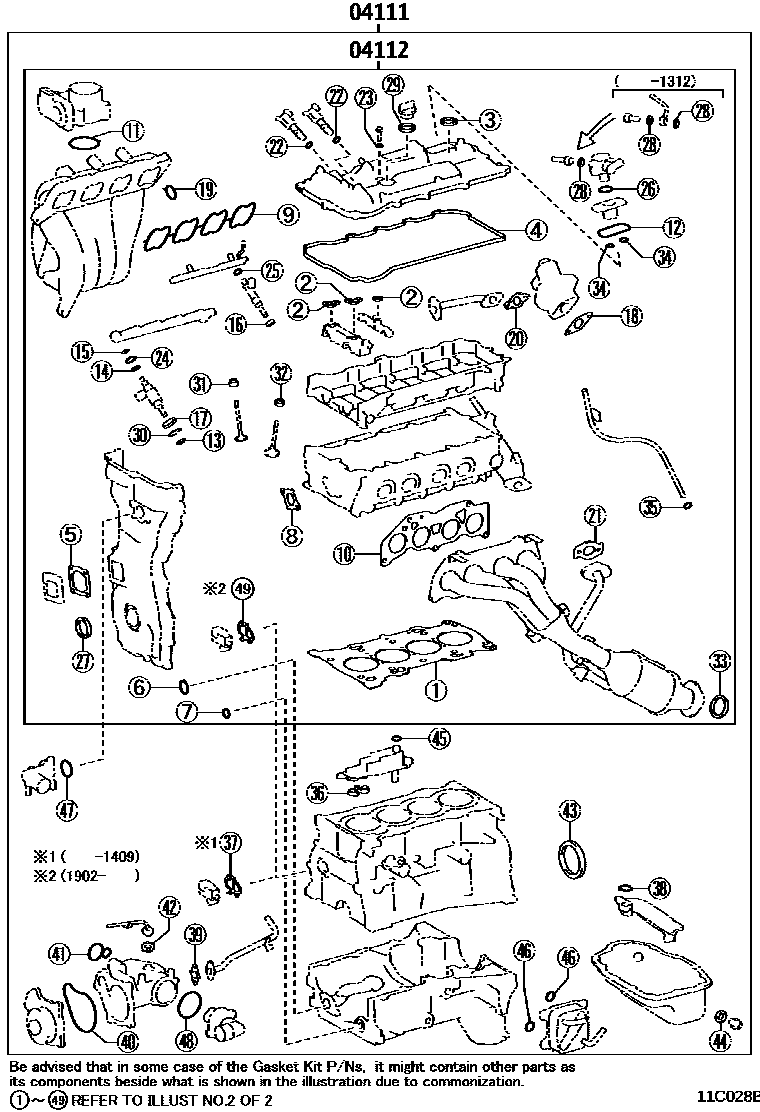

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-31B40i4GRFSE..GSE30201304-201508

sub04111-31A93

main04111-36180i2ARFSE..AVE30201304-201309

sub04111-36181

main04111-36181i2ARFSE..AVE30201309-201312

sub04111-36182

main04111-36210i2ARFSE..AVE30201312-201409

sub04111-36211

main04111-36211i2ARFSE..AVE30201409-201610

main04111-36290i8ARFTS..ASE30201508-201710

sub04111-36291

main04111-36291i8ARFTS..ASE30201710-202004

main04111-36400i8ARFTS..ASE30202004

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31800i4GRFSE..GSE30201304-201508

sub04112-31632

main04112-36150i2ARFSE..AVE30201304-201312

sub04112-36151

main04112-36160i2ARFSE..AVE30201312-201409

sub04112-36161

main04112-36161i2ARFSE..AVE30201409-201902

sub04112-36162

main04112-36162i2ARFSE..AVE30201902

main04112-36240i8ARFTS..ASE30201508-201710

sub04112-36241

main04112-36241i8ARFTS..ASE30201710-202004

main04112-36350i8ARFTS..ASE30202004

2 parts on this diagram · 6 diagrams in section
