SHORT BLOCK ASSEMBLY

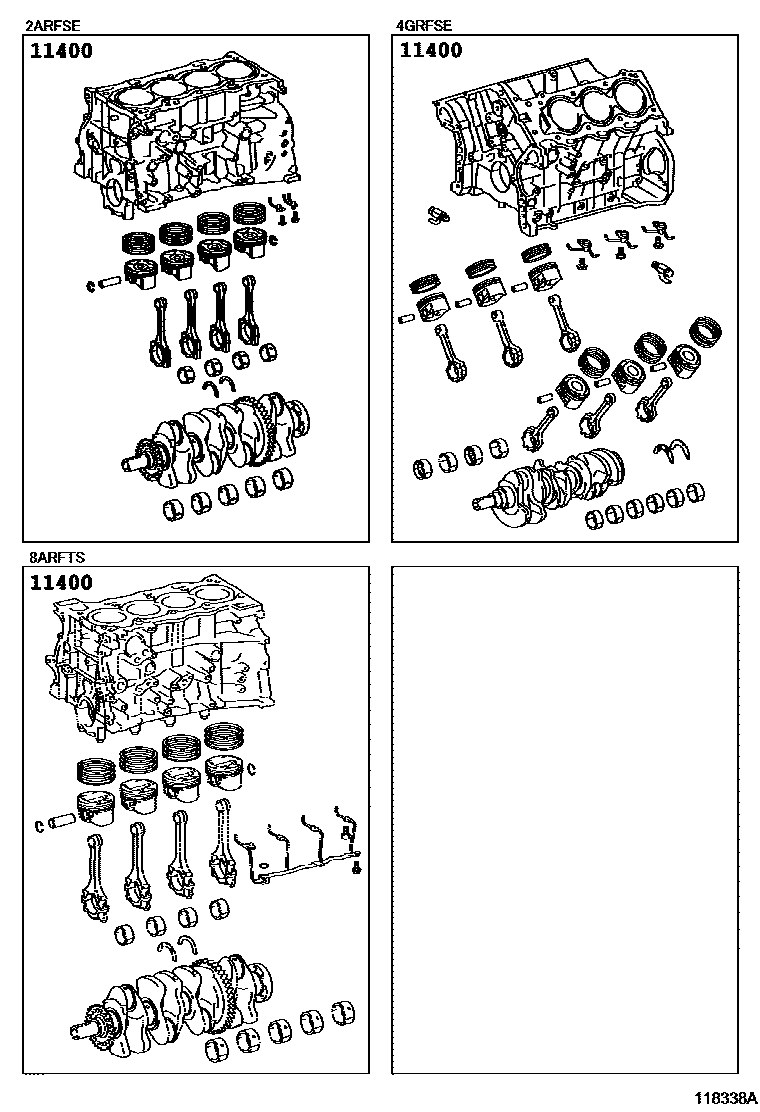

Parts diagram

11400BLOCK ASSY, SHORT

main11400-31050i201304-201403

main11400-36090i201304-201403

main11400-36130i201508-201610

main11400-36190i201610-201804

main11400-39025i201407-201411

main11400-39035i201403-201406

main11400-39045i201411-201508

main11400-36100i201304-201403

EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)

1 parts on this diagram · 1 diagram in section
