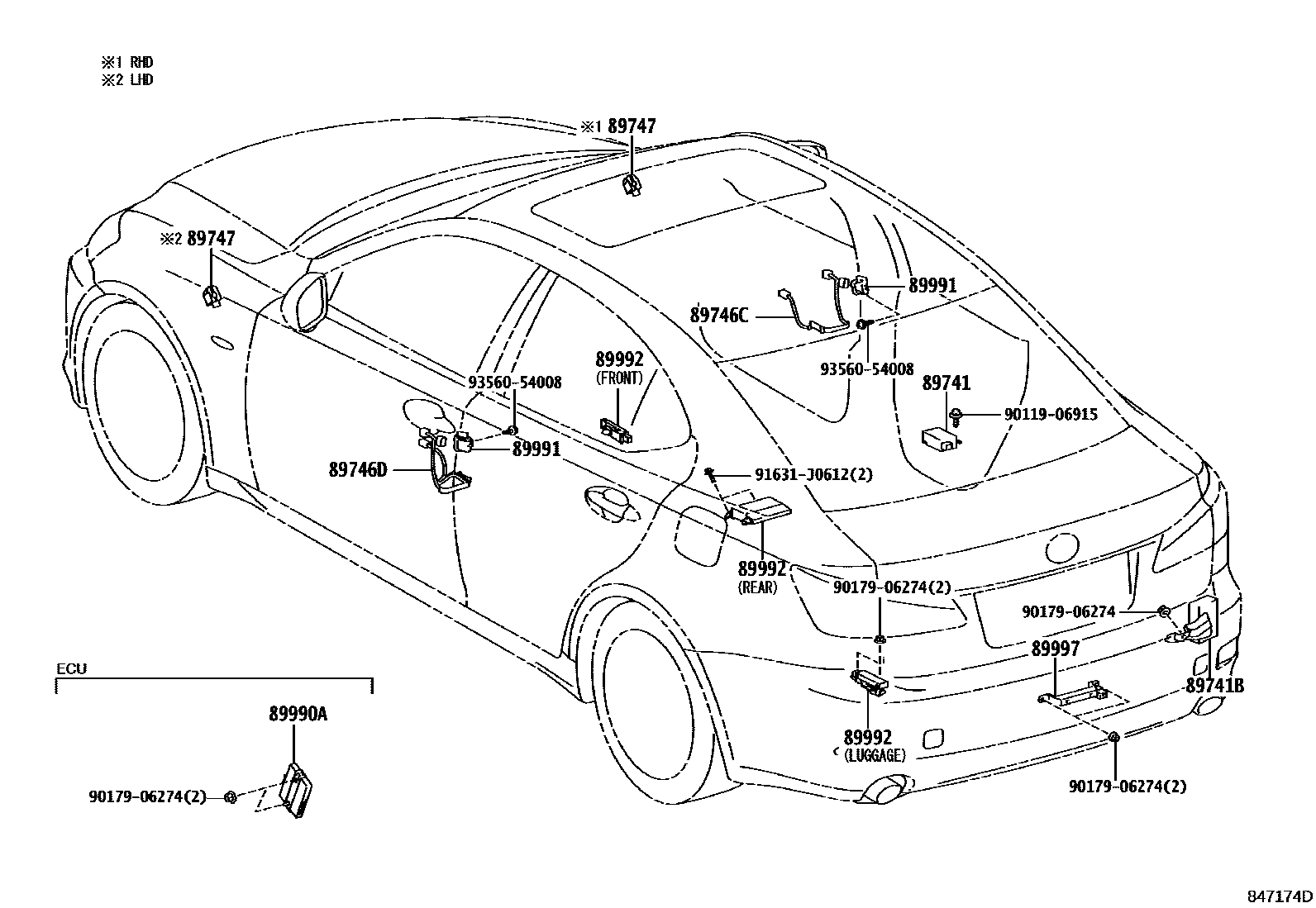

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-53030iGSE21201008-201208

NEW ZEALAND SPEC&ELECTRICAL KEY(2)+CARD TYPE(1)

main89740-53050iALE20200508-200512

AUSTRALIA SPEC

main89740-53051iALE20,GSE20200512-200704

main89740-53052iALE20,GSE20200705-200802

main89740-53053iALE20,GSE20200803-200808

main89740-53320iALE20,GSE20201005-201008

sub89740-53321

main89740-53400supersedes 89740-53370iGSE21201208

SOUTH AFRICA SPEC

sub89740-53401

main89740-53130iGSE20..RHD..ATM200808-201008

HONG KONG SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)

main89740-53151iGSE20..LHD201108-201208

CHILE SPEC&WIRELESS DOOR LOCK-WITH(PANIC)

main89740-53410iGSE20..RHD201208

HONG KONG SPEC

main89740-53420iGSE20..LHD201208

CHILE SPEC&WIRELESS DOOR LOCK-WITH(PANIC)

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-53060iALE20..RHD..SPO200808-200908

main89740-53040iGSE20..LHD..ATM200808-201008

TAIWAN SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)

main89740-53140iGSE20..RHD..ATM200808-201008

HONG KONG SPEC&KEY PLATE-ELECTRICAL KEY(2)+CARD TYPE(1)

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-53010iALE20..LHD..SPO;ALE20,GSE20..LUX200808-201008

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-53020iALE20,GSE2#201008

89747BUZZER, WIRELESS DOOR LOCK

main89747-48020iALE20,GSE20200508-200609

main89747-52010iALE20,GSE20200610-200808

89990ACOMPUTER ASSY, SMART KEY

main89990-53010iALE20,GSE20200508-200512

main89990-53011iALE20,GSE20200601-200604

main89990-53012iALE20,GSE20200605-200607

sub89990-53017

main89990-53013iALE20,GSE20200607-200611

main89990-53014iALE20,GSE20200612-200708

main89990-53015iALE20,GSE20200708-200801

main89990-53016iALE20,GSE20200802-200808

sub89990-53230

main89990-53030iALE20,GSE20200808-200908

main89990-53070iALE20,GSE20200908-200909

main89990-53071iALE20,GSE20200910-201004

main89990-53130iALE20,GSE2#201008-201103

main89990-53131iALE20,GSE2#201108-201208

main89990-53132iGSE2#201209

sub89990-53370

main89990-53170iALE20,GSE2#201103-201108

sub89990-53171

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iALE20,GSE20200508-200808

RH

main89991-30050iALE20,GSE20200508-200808

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30080iALE20,GSE20200908-201008

REAR

main89992-30090iALE20..LHD..SPO;ALE20,GSE20..LUX200808-201008

FRONT

main89992-30100iALE20,GSE20200508-200808

REAR

main89992-53010iALE20..RHD..SPO200808-200908

LUGGAGE

89997ANTENNA, ELECTRICAL KEY

main89997-30070iALE20,GSE2#201108

main89997-41010iALE20,GSE2#201008-201108

9011906915

main90119-06915

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054008

main93560-54008

13 parts on this diagram · 1 diagram in section
