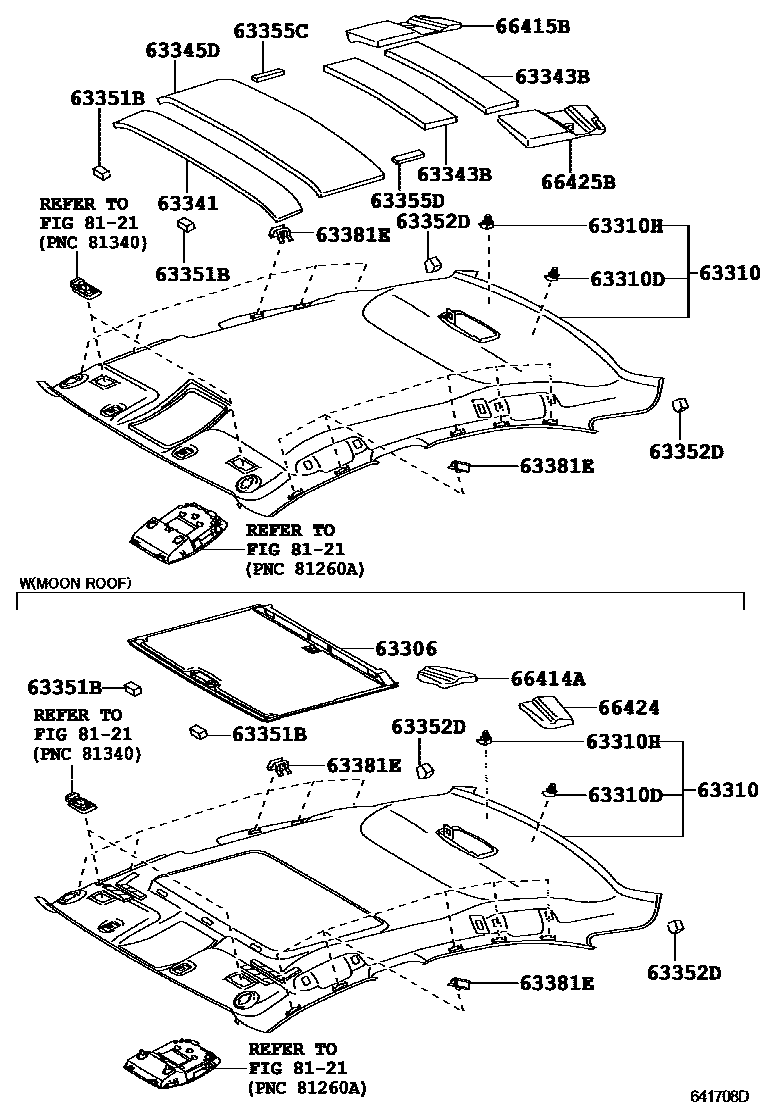

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-53030

63310HEADLINING ASSY, ROOF

main63311-53130-A0iALE20,GSE20200508-200808

IVORY,TRIM0#

sub63311-53210

main63311-53130-A1iALE20,GSE20200808-201304

ECRU,TRIM0#

sub63311-53210

main63311-53130-B0iALE20,GSE20200508-200808

LT.GRAY,TRIM1#,2#

sub63311-53210

main63311-53130-C0iALE20,GSE2#201008-201304

BLACK,TRIM2#

sub63311-53210

main63311-53210-B0iALE20,GSE20200808-201304

LT.GRAY,TRIM1#,2#

sub63311-53130

63310DCLIP, ROOF HEADLINING

main90467-09126iALE20,GSE2#200508-201008

63310HCLIP(FOR ROOF HEADLINING)

main90467-10181iALE20,GSE20200508-201008

63341PAD, ROOF SILENCER, NO.1

main63341-53030iALE20,GSE20200508-201008

63343BPAD, ROOF SILENCER, REAR

main63343-53020iALE20,GSE20200508-201008

63345DPAD, ROOF SILENCER, CENTER

main63345-53010iALE20,GSE2#200508-201008

63351BPAD, ROOF HEADLINING

main63351-53020iALE20,GSE20200508-201008

63352DPAD, ROOF HEADLINING, NO.2

main63352-53020iALE20,GSE20200508-201008

63355CPAD, ROOF HEADLINING, RH

main63355-53040iALE20,GSE20200508-201008

63355DPAD, ROOF HEADLINING, LH

main63355-53040iALE20,GSE20200508-201008

63381ERETAINER, ROOF HEADLINING TRIM, FRONT

main63381-30091iALE20,GSE20200508-201008

66414ASPACER, SIDE RAIL, REAR RH

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-53020iALE20,GSE20200508-201008

66424SPACER, SIDE RAIL, REAR LH

main66424-53040

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-53020iALE20,GSE20200508-201008

8121

17 parts on this diagram · 1 diagram in section
