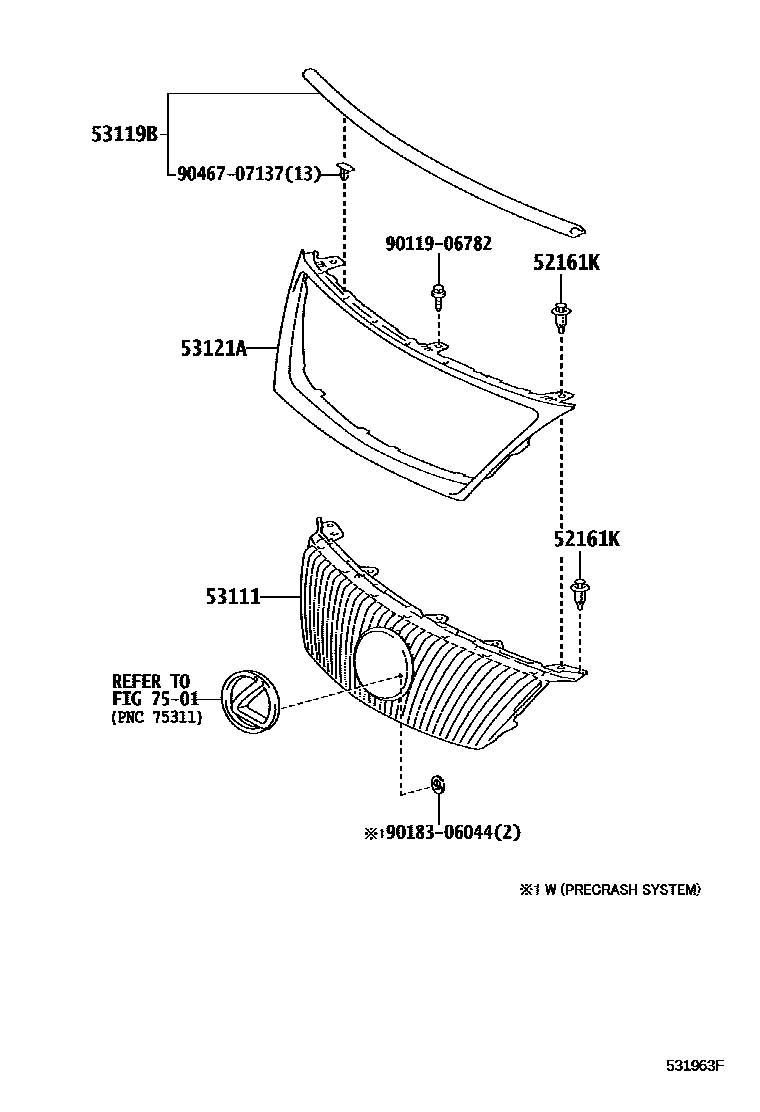

RADIATOR GRILLE
52161KPIECE, FRONT BUMPER
sub52161-0K040
53111GRILLE, RADIATOR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH(MILLI-WAVE RADAR TYPE)
NO PAINT REQ.,AUSTRALIA SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&CRUISE CONTROL-WITH(RADAR)
NO PAINT REQ.,VERSION F
NO PAINT REQ.,NEW ZEALAND SPEC&VERSION F&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&CRUISE CONTROL-WITH(RADAR)
NO PAINT REQ.,ISRAEL,REUNION SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH(RADAR)
NO PAINT REQ.,NEW ZEALAND SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISECONTROL-WITH(RADAR)
NO PAINT REQ.,AUSTRALIA SPEC&F PACKAGE&CRUISE CONTROL-WITH
sub53112-53902
NO PAINT REQ.,NEW ZEALAND SPEC&FB PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA &*PB)&CRUISE CONTROL-WITH(RADAR)
NO PAINT REQ.,NEW ZEALAND SPEC&ART WORKS
53119BPROTECTOR, RADIATOR GRILLE
53121AMOULDING, RADIATOR GRILLE
RUSSIA SPEC&LUXURY PACKAGE&HEADLAMP-DISCHARGE WITH/AUTO LEVELING
CROATIA SPEC&VERSION F
RUSSIA SPEC
FB PACKAGE&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&CRUISE CONTROL-WITH(RADAR)
7501
9011906782
main90119-06782
9018306044
main90183-06044
9046707137
main90467-07137
8 parts on this diagram · 3 diagrams in section
