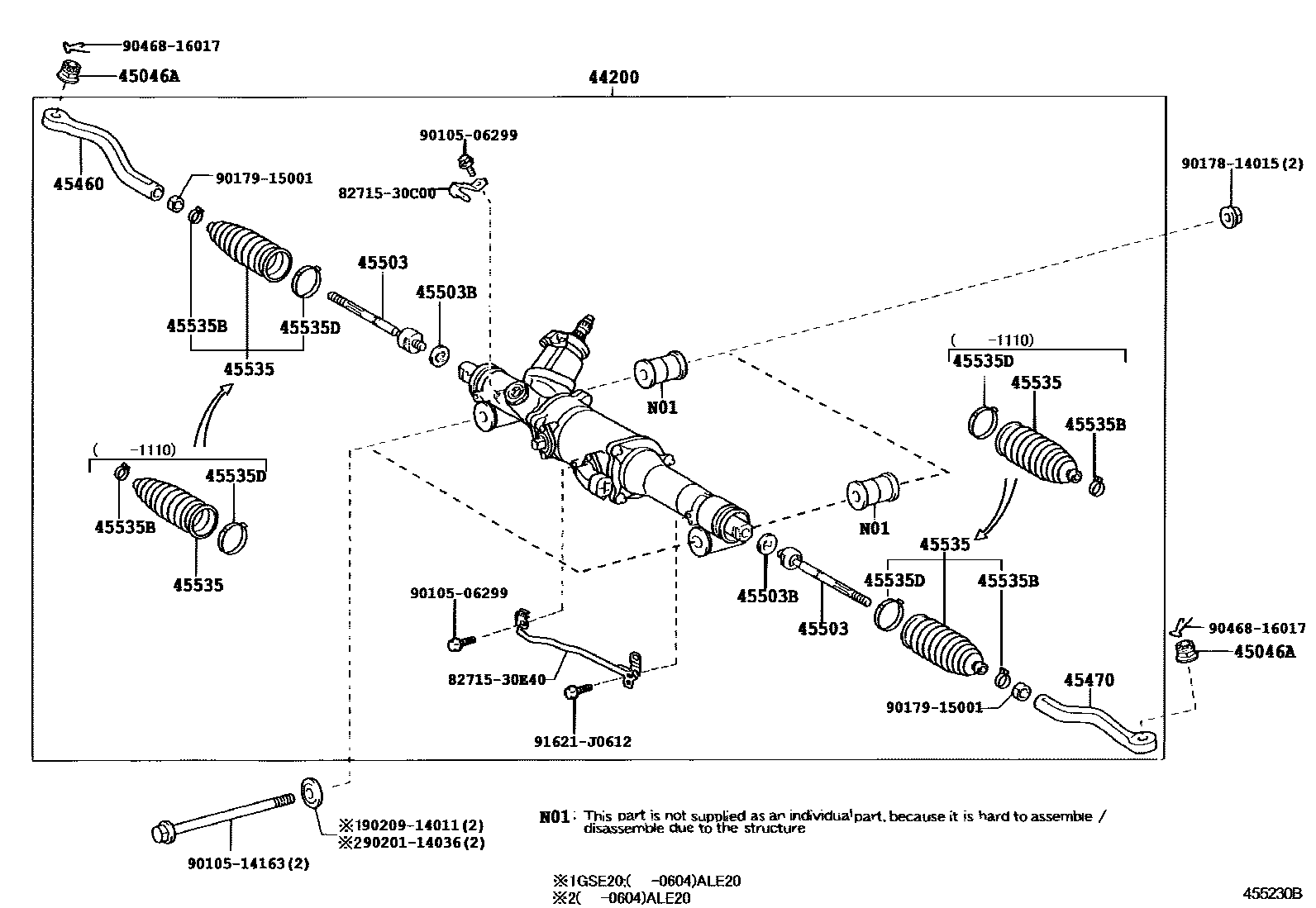

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-53060iGSE20..RHD200508-200607

main44200-53070iALE20..RHD200511-200608

main44200-53080iALE20,GSE20..LHD200508-200607

main44200-53110iGSE20..RHD200808-201008

sub44200-53111

main44200-53120iALE20..RHD200808-201008

sub44200-53121

main44200-53130iALE20,GSE20..LHD200608-200808

main44200-53131iALE20,GSE20..LHD201206-201304

main44200-53270iGSE2#..RHD201110-201304

sub44200-53111

main44200-53280iALE20..RHD201110-201208

sub44200-53121

main44200-53290iALE20,GSE20..LHD201110-201206

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002×2iALE20,GSE20200508-200808

45460ROD ASSY, TIE, RH

main45463-30130iALE20,GSE20200508-200808

45470ROD ASSY, TIE, LH

main45464-30060iALE20,GSE20200508-200808

45503END SUB-ASSY, STEERING RACK

main45503-30070×2iALE20,GSE20200508-200808

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011×2iALE20,GSE20200508-200808

OD=40

45535BOOT, STEERING RACK, NO.1

main45535-30030×2iALE20,GSE20200508-200808

main45535-59045×2iALE20,GSE2#201110

sub45535-59065

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iALE20,GSE20200508-200808

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016×2iALE20,GSE20200508-200808

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530E40BRACKET,WIRING HARNESS CLAMP

main82715-30E40

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020114036

main90201-14036

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

19 parts on this diagram · 2 diagrams in section
