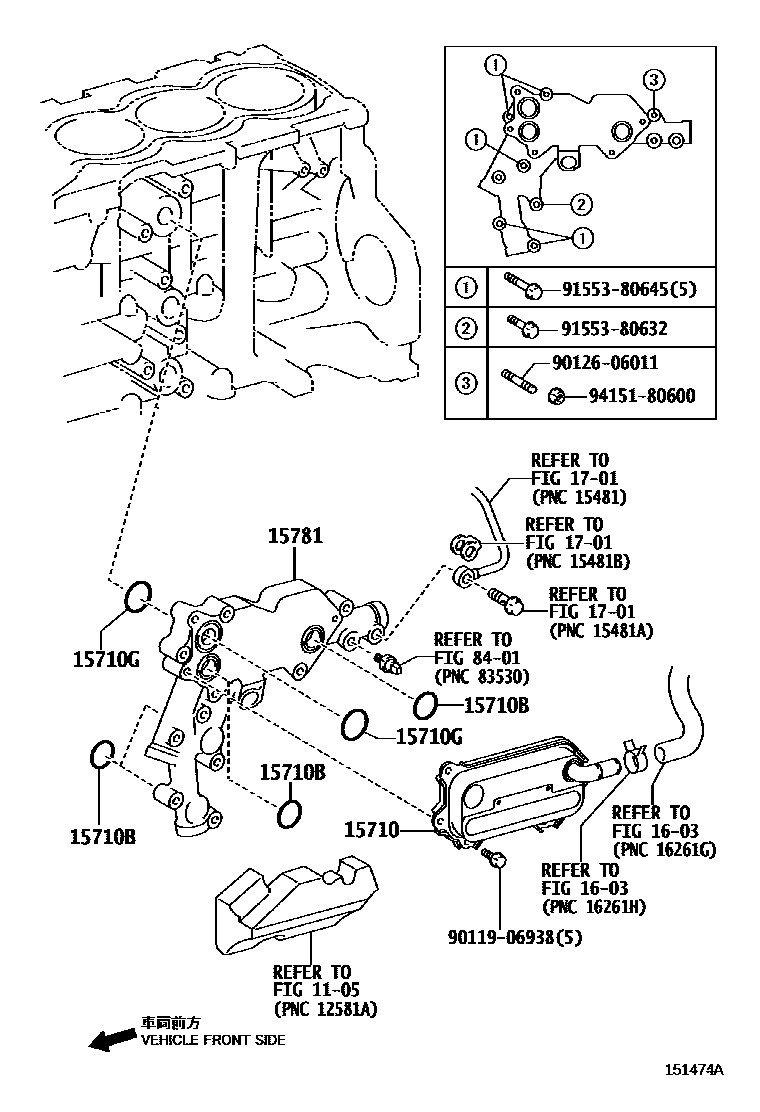

ENGINE OIL COOLER

0001 1 0002 1 0003 1

1105

15710COOLER ASSY, OIL

main15710-0R010i2ADFHV..ALE20200511-201010

sub15710-0R011

main15710-0R011i2AD#..ALE20201010-201208

15710BRING, O(FOR OIL COOLER)

main90301-24018i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

15710GRING, O, NO.2

main90301-29013i2ADFHV..ALE20..LUX;2ADFHV..ALE20..LHD..SPO200511-201208

15781BRACKET, OIL COOLER, NO.1

main15781-26010i2ADFHV..ALE20200511-200611

sub15781-26011

main15781-26011i2ADFHV..ALE20200611-200811

sub15781-26030

sub91551-80635

main15781-26030i2ADFHV..ALE20200811-201011

main15781-26031i2AD#..ALE20201011-201208

1603

1701

8401

9011906938

main90119-06938

9012606011

main90126-06011

9155380632

main91553-80632

9155380645

main91553-80645

9415180600

main94151-80600

13 parts on this diagram · 3 diagrams in section
