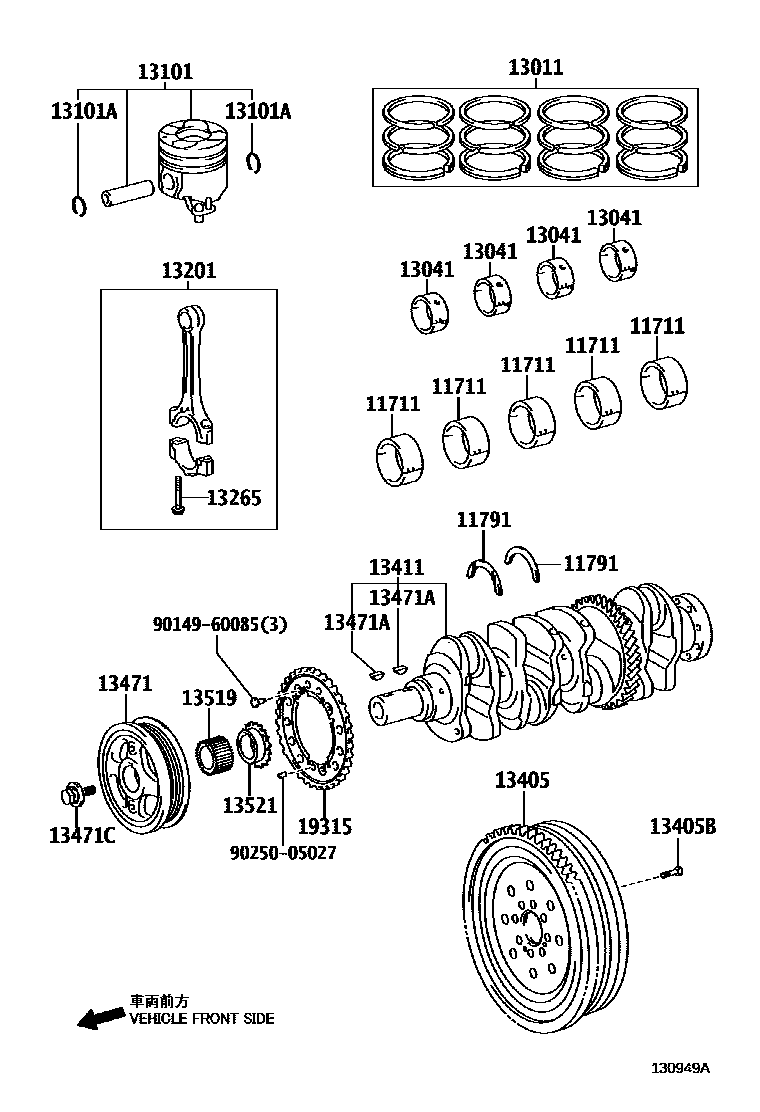

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,NO.2,REFER R/M
MARK2,NO.2,REFER R/M
MARK3,NO.2,REFER R/M
MARK4,NO.2,REFER R/M
MARK5,NO.2,REFER R/M
MARK1,(L):REFER R/M
MARK2,(L):REFER R/M
MARK3,(L):REFER R/M
MARK4,(L):REFER R/M
MARK5,(L):REFER R/M
MARKA,(L):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK5,(J):REFER R/M
MARK0,(J):REFER R/M
MARK1,(J):REFER R/M
MARK2,(J):REFER R/M
MARK3,(J):REFER R/M
MARK4,(J):REFER R/M
MARK5,(J):REFER R/M
MARKA,(J):REFER R/M
MARK1,NO.1,REFER R/M
MARK2,NO.1,REFER R/M
MARK3,NO.1,REFER R/M
MARK4,NO.1,REFER R/M
MARK5,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD,(L)
STD,(J)
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK5,(L),REFER R/M
MARK1,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,(J),REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK3,(J),REFER R/M
MARK4,(J),REFER R/M
MARK4,REFER REPAIR MANUAL
MARK5,(J),REFER R/M
MARK5,REFER REPAIR MANUAL
MARK1
MARK2
MARK3
MARK4
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,REFER REPAIR MANUAL
STD,MARK B,REFER REPAIR MANUAL
STD,MARK C,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13405BBOLT, FLYWHEEL SETTING
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
19315PLATE, CRANK ANGLE SENSOR, NO.1
9014960085
main90149-60085
9025005027
main90250-05027
19 parts on this diagram · 2 diagrams in section
