CYLINDER HEAD

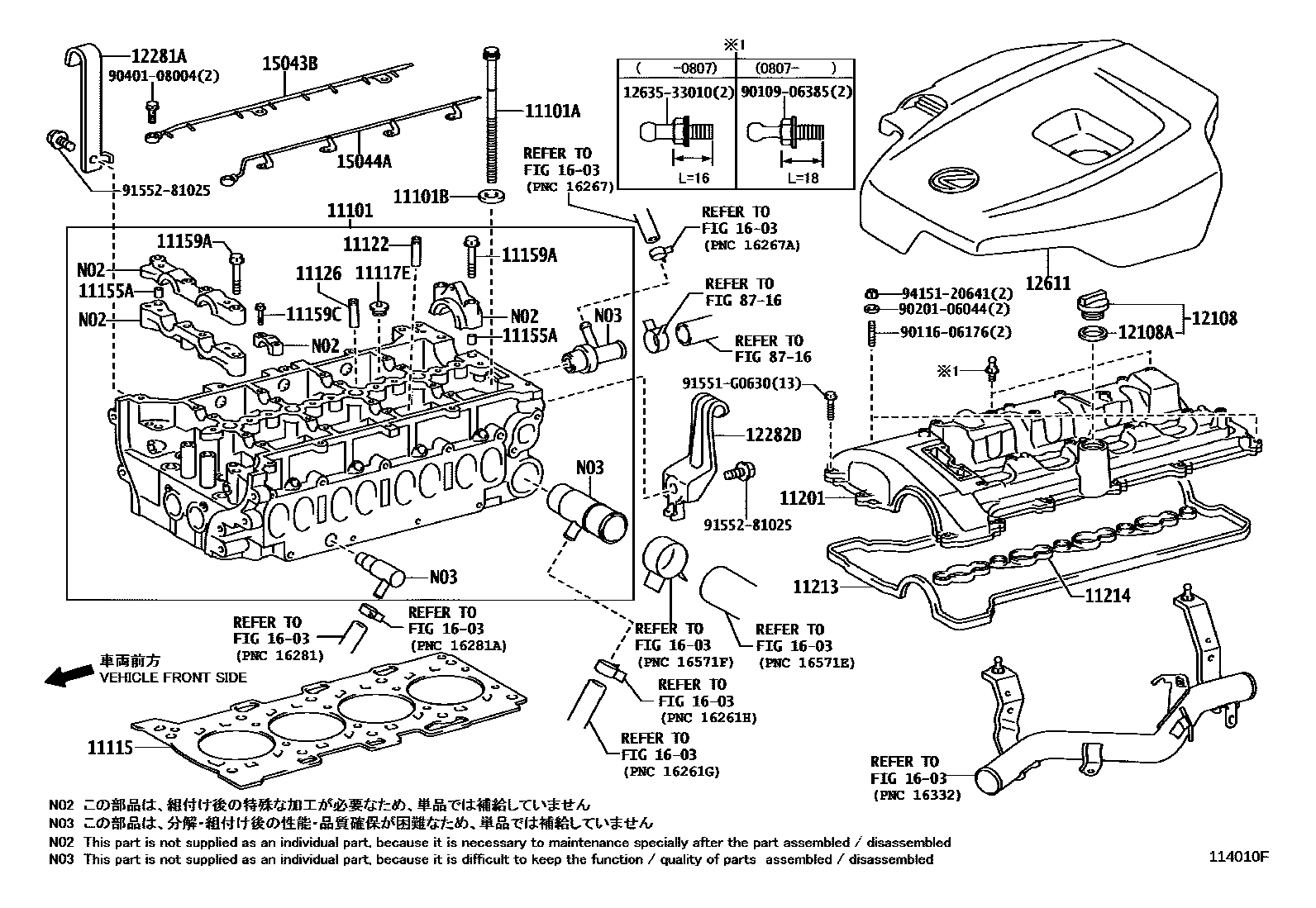

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-29575i200511-201208
sub11101-09375
main11101-39595i200508-201109
sub11101-39596
main11101-39596i201109
sub11101-39597
main11101-39605i201008-201109
sub11101-39607
main11101-39607i201109
sub11101-39608
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02158i200511-201208
sub90910-9U002
main90910-02162i200508-201008
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-11034i200508-201008
main90560-13023i200511-201208
11115GASKET, CYLINDER HEAD
main11115-26051-A0i200511-200709
MARKA,REFER REPAIR MANUAL
sub11115-26052
main11115-26051-B0i200511-200709
MARKB,REFER REPAIR MANUAL
sub11115-26052
main11115-26051-C0i200511-200709
MARKC,REFER REPAIR MANUAL
sub11115-26052
main11115-26051-D0i200511-200709
MARKD,REFER REPAIR MANUAL
sub11115-26052
main11115-26051-E0i200511-200709
MARKE,REFER REPAIR MANUAL
sub11115-26052
main11115-26052-A0i200709-201208
MARKA,REFER REPAIR MANUAL
main11115-26052-B0i200709-201208
MARKB,REFER REPAIR MANUAL
main11115-26052-C0i200709-201208
MARKC,REFER REPAIR MANUAL
main11115-26052-D0i200709-201208
MARKD,REFER REPAIR MANUAL
main11115-26052-E0i200709-201208
MARKE,REFER REPAIR MANUAL
main11115-31051i200508-201008
main11115-31080i201008-201112
main11115-31110i201112
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-14015i200511-201208
main90341-20012i200508-201008
11122BUSH, INTAKE VALVE GUIDE
main11122-0R010i200511-201208
STD
main11122-31041i200508-201008
STD
sub11122-47010
main11122-31050i201008
STD
sub11122-31090
main11123-0R010i200511-201208
O/S 0.05
main11123-31041i200508-201008
O/S 0.05
sub11123-47010
main11123-31050i201008
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-0R010i200511-201208
STD
main11123-0R010i200511-201208
O/S 0.05
main11126-31030i200508-201008
STD
sub11126-31040
main11127-31030i200508-201008
O/S 0.05
sub11127-31040
11155APIN, RING W/HEAD
main90253-11021i200508-201208
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main91551-80860i200511-201208
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main91551-80630i200801-201208
main91551-80632i200511-200801
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-26040i200511-200603
sub11201-26041
sub12261-26021
sub90466-23003
main11201-26041i200603-200807
sub11201-26042
main11201-26042i200807-201008
main11201-26080i201008-201208
main11201-31231i200508-200711
sub11201-31232
main11201-31232i200711-201008
11213GASKET, CYLINDER HEAD COVER
main11213-26010i200511-201208
main11213-31040i200508-201008
11214GASKET, CYLINDER HEAD COVER, NO.2
main11214-26010i200511-201208
main11214-31020i200508-201008
12108CAP SUB-ASSY, OIL FILLER
main12180-0N010i200511-200604
sub12180-21010
main12180-0N010i200604-200908
(L)
sub12180-21010
main12180-21010i200508-201208
main12180-21010i200604-201008
(J)
main12180-21021i201008
12108AGASKET(FOR OIL FILLER CAP)
main90080-43020i200511-200909
(L)
sub90430-37140
main90430-37140i200604-201008
(J)
main90430-37140i201008-201208
(J),(L)
main90430-37140i200508-200808
12281AHANGER, ENGINE, NO.1
main12281-26040i200511-201208
main12281-31070i200508-201208
sub12281-31071
12282DHANGER, ENGINE, NO.2
main12282-26010i200511-201208
main12282-31050i200508-201111
main12282-31160i201111
sub12282-31161
12611COVER, ENGINE, NO.1
main12611-26020i200511-201008
sub12611-26900
main12611-26060i201008-201208
15043BPIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
main15043-0R010i200511-201208
15044APIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
main15044-0R010i200511-201208
1603
8716
1263533010JOINT, ENGINE COVER
main12635-33010
9010906385
main90109-06385
9011606176
main90116-06176
9020106044
main90201-06044
9040108004
main90401-08004
91551G0630
main91551-G0630
9155281025
main91552-81025
9415120641
main94151-20641
