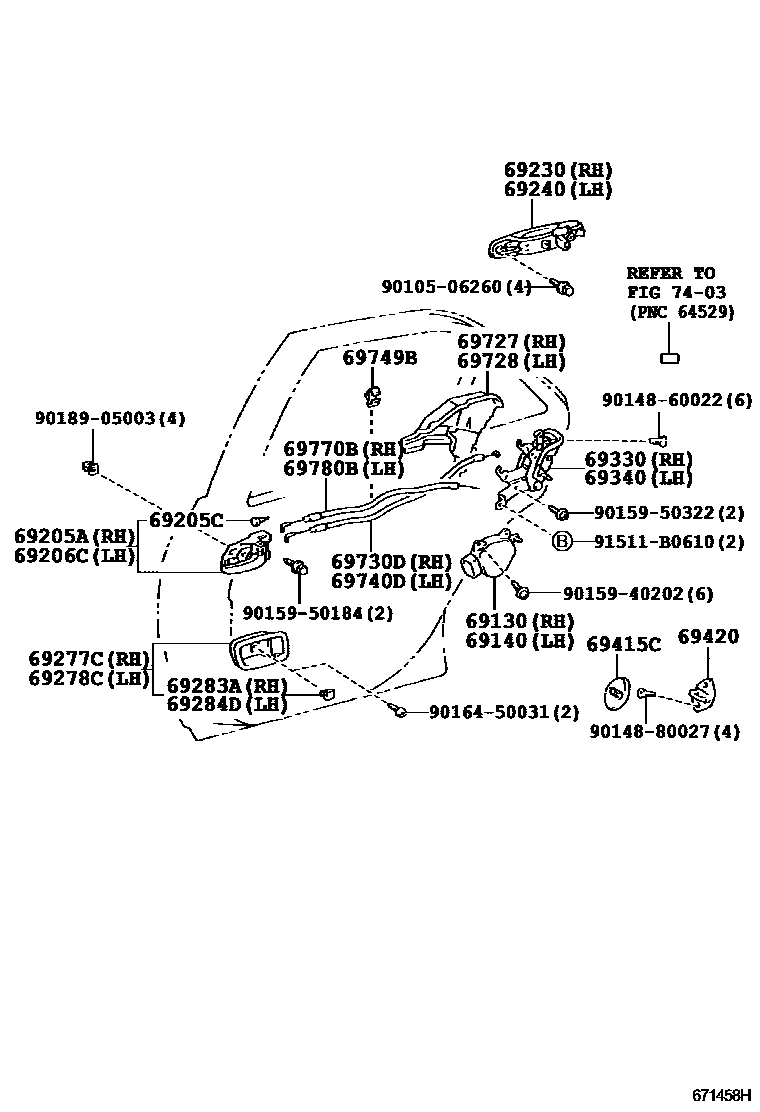

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-51010iGXE10199901-200107

main69130-53030iGXE10..RHD..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-51010iGXE10..ARL;GXE10..LHD199901-200107

main69140-53030iGXE10,JCE10..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-47010-A1iGXE10199901-200107

IVORY,TRIM0#

sub69205-47010

main69205-47010-C0iGXE10,JCE10199901-200107

BLACK,TRIM2#

sub69205-47010

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iGXE10199901-200107

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-47010-A1iGXE10199901-200107

IVORY,TRIM0#

sub69206-47010

main69206-47010-C0iGXE10199901-200107

BLACK,TRIM2#

sub69206-47010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-53010-A0iGXE10199901-200107

SUPER WHITE 2,040

main69230-53010-A1iGXE10199901-200107

SU.WHITE PM,051

main69230-53010-B0iGXE10199901-200107

SILVER ME.,1C0

main69230-53010-B1iGXE10199901-200107

DK.GRAY M.M.,1C6

main69230-53010-C0iGXE10199901-200107

BLACK,202

main69230-53010-D0iGXE10199901-200107

RED M.M.,3N3

main69230-53010-F0iGXE10200005-200107

SUPER BRIGHT YELLOW,576

main69230-53010-G0iGXE10199901-200107

DK. GREEN MC.,6Q7

main69230-53010-J0iGXE10199901-200107

BLUE MC.,8M6

main69230-53030-A0iGXE10,JCE10200107

SUPER WHITE 2,040

main69230-53030-A1iGXE10,JCE10200107

WHITE PEARL CS.,062

main69230-53030-B0iGXE10,JCE10200107

SILVER ME.,1C0

main69230-53030-B1iGXE10,JCE10200107

DK.GRAY M.M.,1C6

main69230-53030-B2iJCE10..SED;GXE10..RHD..SED;GXE10..LHD..ATM200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69230-53030-C0iGXE10,JCE10200107

BLACK,202

main69230-53030-D0iGXE10,JCE10200107

SUPER RED 5,3P0

main69230-53030-E0iGXE10,JCE10200308

BEIGE ME.,4R4

main69230-53030-F0iGXE10,JCE10200107-200308

SUPER BRIGHT YELLOW,576

main69230-53030-F1iGXE10,JCE10200107-200308

GOLD ME.,585

main69230-53030-G0iGXE10,JCE10200107

DARK GREEN MC.,6R4

main69230-53030-J0iGXE10,JCE10200107-200308

DK.BLUE MC.,8N8

main69230-53030-J2iGXE10,JCE10200308

GRAYISH BLUE ME.,8N6

main69230-53030-J3iGXE10,JCE10200308

DK.BLUE M.M.,8P4

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-53010-A0iGXE10199901-200107

SUPER WHITE 2,040

main69240-53010-A1iGXE10199901-200107

SU.WHITE PM,051

main69240-53010-B0iGXE10199901-200107

SILVER ME.,1C0

main69240-53010-B1iGXE10199901-200107

DK.GRAY M.M.,1C6

main69240-53010-C0iGXE10199901-200107

BLACK,202

main69240-53010-D0iGXE10199901-200107

RED M.M.,3N3

main69240-53010-F0iGXE10200005-200107

SUPER BRIGHT YELLOW,576

main69240-53010-G0iGXE10199901-200107

DK. GREEN MC.,6Q7

main69240-53010-J0iGXE10199901-200107

BLUE MC.,8M6

main69240-53030-A0iGXE10,JCE10200107

SUPER WHITE 2,040

main69240-53030-A1iGXE10,JCE10200107

WHITE PEARL CS.,062

main69240-53030-B0iGXE10,JCE10200107

SILVER ME.,1C0

main69240-53030-B1iGXE10,JCE10200107

DK.GRAY M.M.,1C6

main69240-53030-B2iJCE10..SED;GXE10..RHD..SED;GXE10..LHD..ATM200308-200401

SPECIAL EDITION(UK/AUSTRALIA/ASIA),GRAY ME,1D2

main69240-53030-C0iGXE10,JCE10200107

BLACK,202

main69240-53030-D0iGXE10,JCE10200107

SUPER RED 5,3P0

main69240-53030-E0iGXE10,JCE10200308

BEIGE ME.,4R4

main69240-53030-F0iGXE10,JCE10200107-200308

SUPER BRIGHT YELLOW,576

main69240-53030-F1iGXE10,JCE10200107-200308

GOLD ME.,585

main69240-53030-G0iGXE10,JCE10200107

DARK GREEN MC.,6R4

main69240-53030-J0iGXE10,JCE10200107-200308

DK.BLUE MC.,8N8

main69240-53030-J2iGXE10,JCE10200308

GRAYISH BLUE ME.,8N6

main69240-53030-J3iGXE10,JCE10200308

DK.BLUE M.M.,8P4

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-22090-A1iGXE10199901-200107

IVORY,TRIM0#

sub69277-22090

main69277-22090-C0iGXE10199901-200107

BLACK,TRIM2#

sub69277-22090

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-22050-A1iGXE10199901-200107

IVORY,TRIM0#

sub69278-22050

main69278-22050-C0iGXE10199901-200107

BLACK,TRIM2#

sub69278-22050

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iGXE10,JCE10199901-200107

IVORY,TRIM0#

sub69283-30040

main69283-30040-C0iGXE10,JCE10199901-200107

BLACK,TRIM2#

sub69283-30040

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iGXE10199901-200107

IVORY,TRIM0#

sub69284-30040

main69284-30040-C0iGXE10199901-200107

BLACK,TRIM2#

sub69284-30040

69330LOCK ASSY, REAR DOOR, RH

main69330-53020iGXE10..ARL;GXE10..LHD199901-200307

sub69330-53021

main69330-53021iGXE10,JCE10..ARL;GXE10,JCE10..LHD200307

main69330-53030iGXE10,JCE10..EUR199901-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

sub69330-53031

main69330-53031iGXE10,JCE10..EUR200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69340LOCK ASSY, REAR DOOR, LH

main69340-53020iGXE10199901-200307

sub69340-53021

main69340-53021iGXE10,JCE10..ARL;GXE10,JCE10..LHD200307

main69340-53030iGXE10,JCE10..EUR199901-200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

sub69340-53031

main69340-53031iGXE10,JCE10..EUR200307

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69415CCOVER, DOOR LOCK STRIKER, REAR

main69415-30020iGXE10200005-200107

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20110iGXE10199901-200005

main69410-51010iGXE10200005-200107

69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH

main69727-53010iGXE10..ARL;GXE10..LHD199901-200107

main69727-53020iGXE10..RHD..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH

main69728-53010iGXE10,JCE10..ARL;GXE10,JCE10..LHD199901-200107

main69728-53020iGXE10..RHD..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-53010iGXE10199901-200107

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-53010iGXE10,JCE10199901-200107

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30050iGXE10199901-200107

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-53010iGXE10,JCE10..ARL;GXE10,JCE10..LHD199901-200107

main69770-53050iGXE10,JCE10..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-53020iGXE10,JCE10..ARL;GXE10,JCE10..LHD199901-200107

main69770-53060iGXE10..RHD..EUR199901-200107

W(SUB KEY PLATE = W/KEY LESS ENTRY SWITCH)

7403

9010506260

main90105-06260

9014860022

main90148-60022

9014880027

main90148-80027

9015940202

main90159-40202

9015950184

main90159-50184

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

91511B0610

main91511-B0610

32 parts on this diagram · 1 diagram in section
