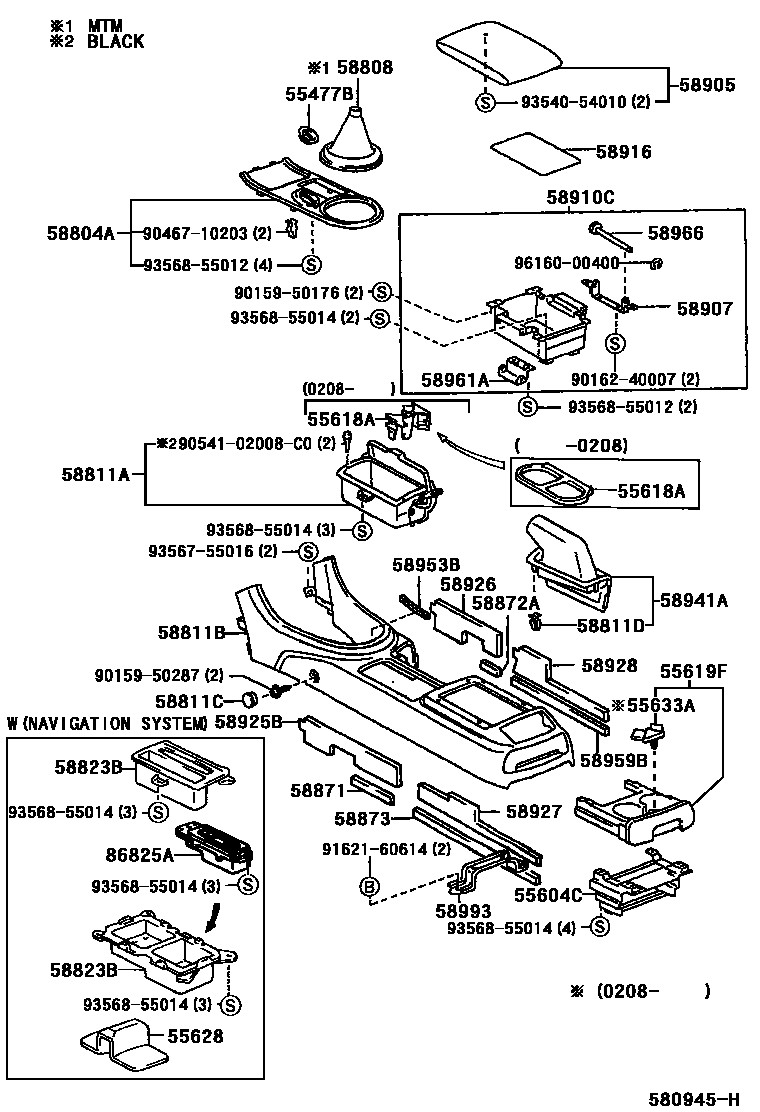

CONSOLE BOX & BRACKET
55477BBEZEL, CIGARETTE LIGHTER HOLE
55604CHOLDER SUB-ASSY, CONSOLE BOX CUP
W(FRONT ARMREST)
W(FRONT ARMREST)
55619FHOLDER, CONSOLE BOX CUP, NO.2
BLACK,TRIM0#,2#
W(FRONT ARMREST),BLACK,TRIM0#,2#
W(FRONT ARMREST),BLACK,TRIM0#,2#
55628KNOB, CONSOLE BOX CUP HOLDER
55633ASUPPORT, INSTRUMENT PANEL CUP HOLDER, NO.1
BLACK,TRIM0#,2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
BLACK,TRIM0#,2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,2#
58811ABOX, CONSOLE, FRONT
BLACK,TRIM0#,2#
58811BBOX, CONSOLE
BLACK/GARY,TRIM0#,2#
BLACK/BLACK,TRIM0#
58811CCAP(FOR CONSOLE)
58811DCLIP(FOR CONSOLE BOX)
58823BBOX, CONSOLE COMPARTMENT
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58871CUSHION, CONSOLE BOX
58872ACUSHION, CONSOLE BOX, NO.2
58873CUSHION, CONSOLE BOX, NO.3
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
W(GPS NAVIGATION SYSTEM),BLACK,TRIM0#,2#
LEATHER SEAT & W(FRONT ARMREST),IVORY,TRIM0#
LEATHER SEAT & W(FRONT ARMREST),BLACK,TRIM2#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
W(FRONT ARMREST),BLACK,TRIM0#,2#
W(FRONT ARMREST),BLACK,TRIM0#,2#
W(FRONT ARMREST),BLACK,TRIM0#,2#
58916MAT, BOX BOTTOM
W(FRONT ARMREST)
58925BINSULATOR, CONSOLE BOX, UPPER
58926INSULATOR, CONSOLE BOX, LOWER
58927INSULATOR, CONSOLE COMPARTMENT DOOR
58928INSULATOR, CONSOLE BOX REAR DOOR
58941ACOVER, PARKING BRAKE HOLE
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
58953BPACKING, BOX PANEL
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58966SHAFT, BOX DOOR HINGE
58993BRACKET, CONSOLE BOX MOUNTING, REAR
W(FRONT ARMREST)
86825AHOLDER, NAVIGATION CONTROLLER
9015950176
main90159-50176
9015950287
main90159-50287
9016240007
main90162-40007
9046710203
main90467-10203
9054102008C0
main90541-02008C0
9162160614
main91621-60614
9354054010
main93540-54010
9356755016
main93567-55016
9356855012
main93568-55012
9356855014
main93568-55014
9616000400
main96160-00400
42 parts on this diagram · 3 diagrams in section
