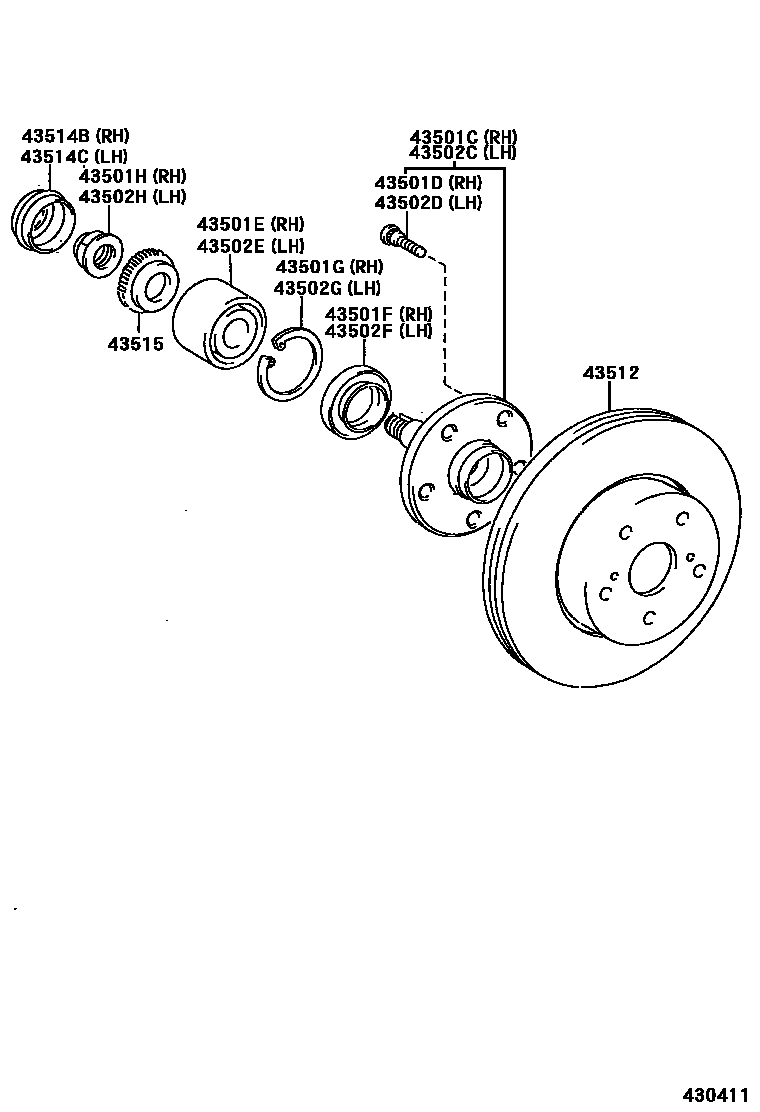

FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-22080iGXE10,JCE10199901-200107

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iGXE10..EUR199901-200107

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-32035iGXE10199901-200107

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-48013iGXE10199901-200107

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iGXE10199901-200107

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22022iGXE10199901-200107

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-22080iGXE10199901-200107

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iGXE10199901-200107

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-32035iGXE10199901-200107

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-48013iGXE10199901-200107

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iGXE10199901-200107

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22022iGXE10199901-200107

43512DISC, FRONT

main43512-50100iGXE10,JCE10..LHD..SED..ATM199901-200202

TAIWAN SPEC

main43512-50100iGXE10..ARL199901-200001

main43512-50100iGXE10..ARL200001-200202

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main43512-50110iGXE10..EUR199901-200003

sub43512-53020

main43512-50111iGXE10200003-200007

sub43512-50120

main43512-50112iGXE10,JCE10200007-200309

sub43512-53020

main43512-53010iGXE10,JCE10..LHD..SED..ATM200202

TAIWAN SPEC

sub43512-50100

main43512-53010iGXE10,JCE10..LHD..SED..ATM200202

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

sub43512-50100

main43512-53020iGXE10,JCE10200309

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-22040iGXE10199901-200005

main43514-53010iGXE10200005-200107

WHITE MARK

main43514-53010iGXE10,JCE10200107

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-22040iGXE10199901-200005

main43514-53010iGXE10200005-200107

WHITE MARK

main43514-53010iGXE10,JCE10200107

43515ROTOR, SKID CONTROL, FRONT

main43515-22030iGXE10199901-200107

16 parts on this diagram · 1 diagram in section
