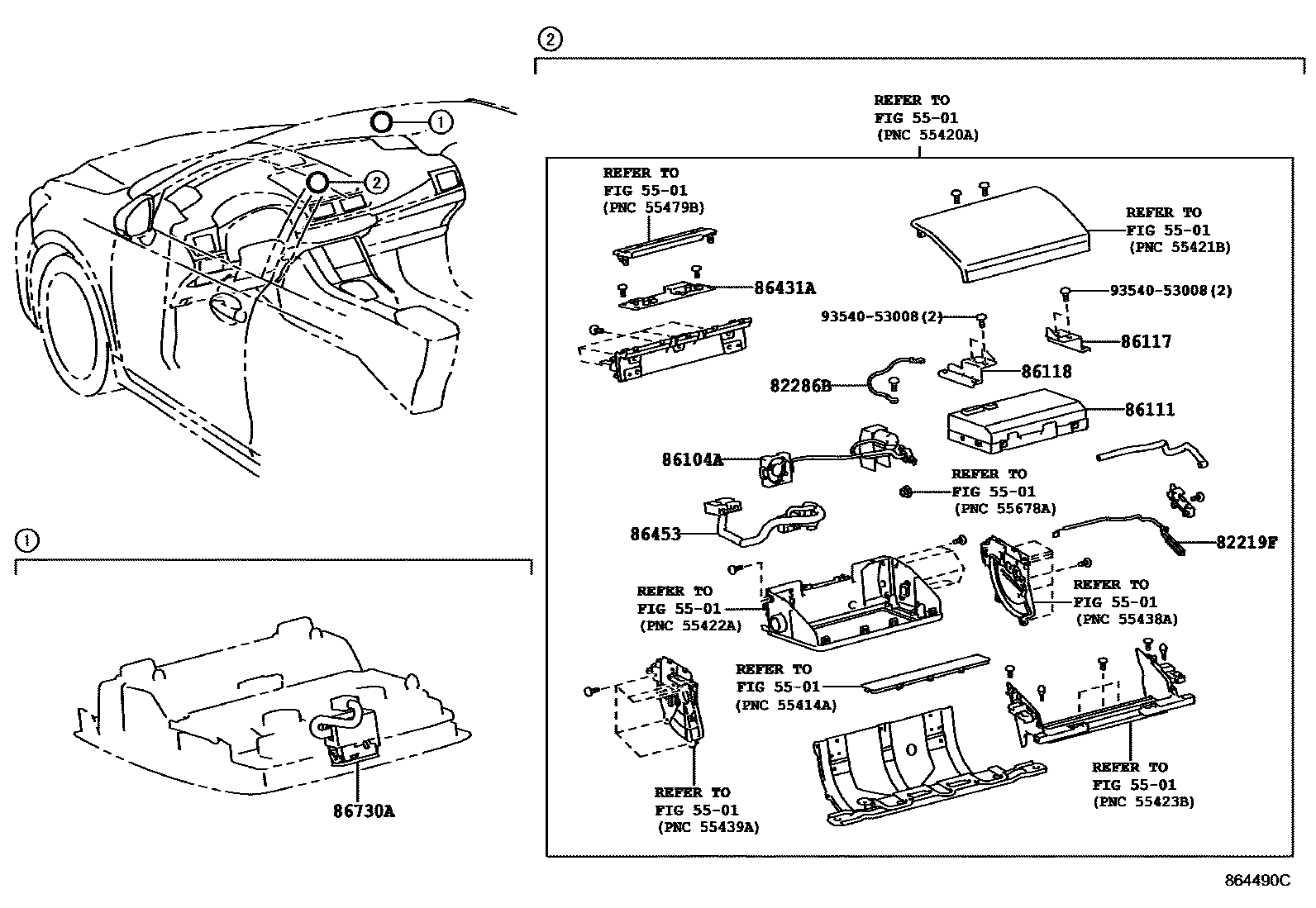

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

5501

82219FWIRE, SENSOR

82286BWIRE, EARTH, NO.2

86104ACONTROLLER SUB-ASSY, MULTI-DISPLAY

86111MULTI-DISPLAY

main86110-76010

main86111-76020

main86110-76020

main86110-76021

main86111-76030

main86111-76080

main86111-76081

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-76010

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-76010

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-76020

main86431-76021

main86431-76022

main86431-76023

main86431-76050

main86431-76060

main86431-76070

main86431-76090

main86431-76100

main86431-76101

86431ABOARD, DISPLAY MODULE

86453WIRE, MULTI-MEDIA MODULE

main86453-76010

main86453-76020

86730AMICROPHONE ASSY, TELEPHONE

main86730-20060iZWA10..RHD..E201012-201312

CAR TELEPHONE-WITHOUT

main86730-20060iZWA10..RHD..B201012-202007

CAR TELEPHONE-BLUETOOTH TEL

main86730-60050iZWA10..LHD..E201012-202009

CAR TELEPHONE-BLUETOOTH TEL

main86730-60050iZWA10..LHD..B201012-201312

CAR TELEPHONE-WITHOUT

9354053008

main93540-53008

12 parts on this diagram · 12 diagrams in section
