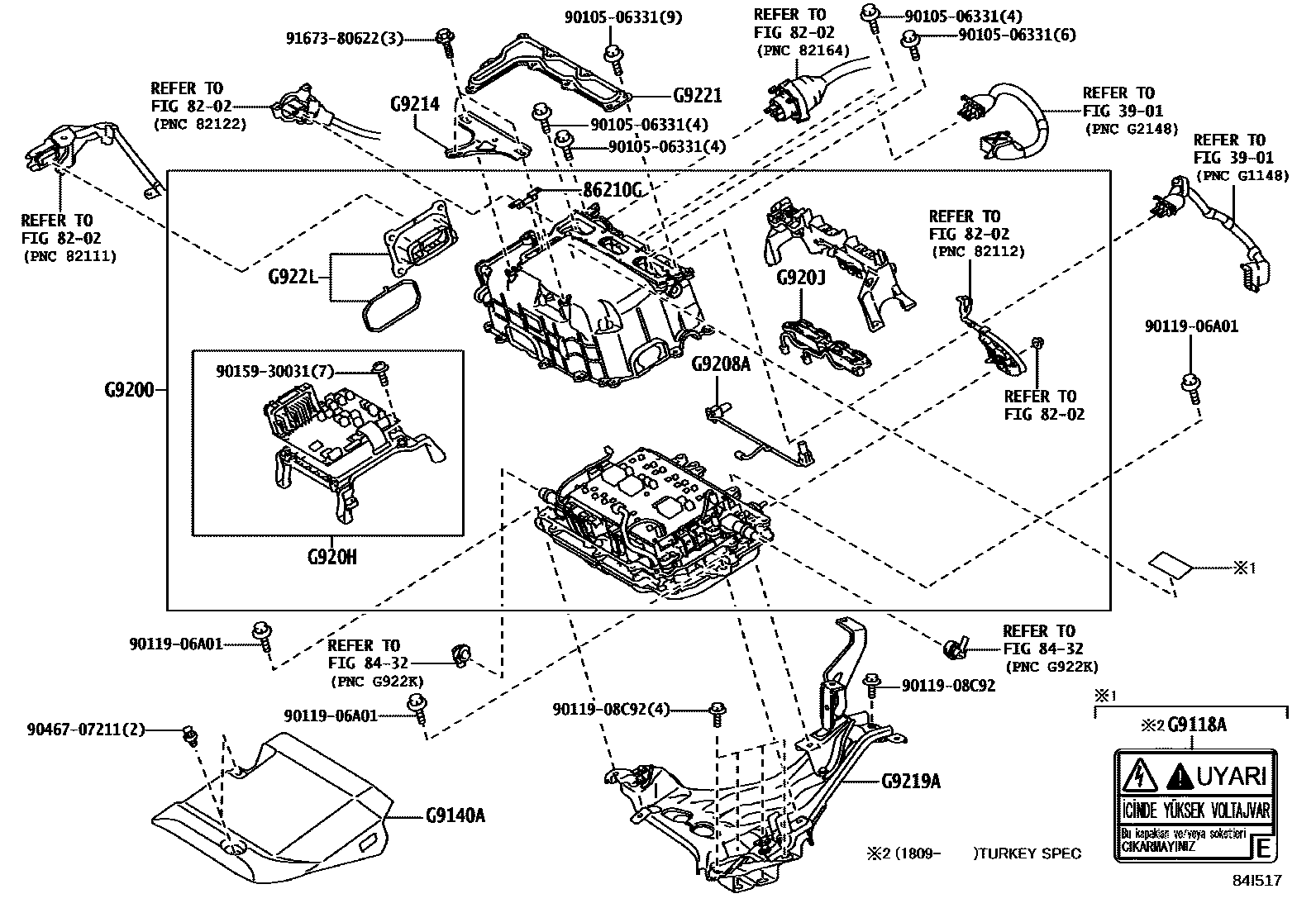

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8432INVERTER COOLING

→ Go to FIG 84-32

86210GFUSE, HIGH VOLTAGE

main90982-11050iZWA10201105-202009

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9140ACOVER ASSY, INVERTER, LH

G9200INVERTER ASSY, W/CONVERTER

mainG920079015iZWA10201108-201305

mainG920079025iZWA10201306-201408

mainG920079035iZWA10201408-202009

mainG92A076020iZWA10201012-201107

G9208AWIRE SUB-ASSY, INVERTER

mainG920847090iZWA10201012-202009

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H47030iZWA10201012-201802

mainG920H47150iZWA10201803-202009

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZWA10201012-202009

G9214BRACKET, INVERTER, NO.1

mainG921476010iZWA10201012-202009

G9219ABRACKET, INVERTER TRAY

mainG911047011iZWA10201012-201308

mainG911047030iZWA10201309-202009

G9221COVER, INVERTER

mainG902247041iZWA10201012-202009

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZWA10201012-202009

9010506331

main90105-06331

9011906A01

main90119-06A01

9011908C92

main90119-08C92

9015930031

main90159-30031

9046707211

main90467-07211

9167380622

main91673-80622

20 parts on this diagram · 3 diagrams in section
