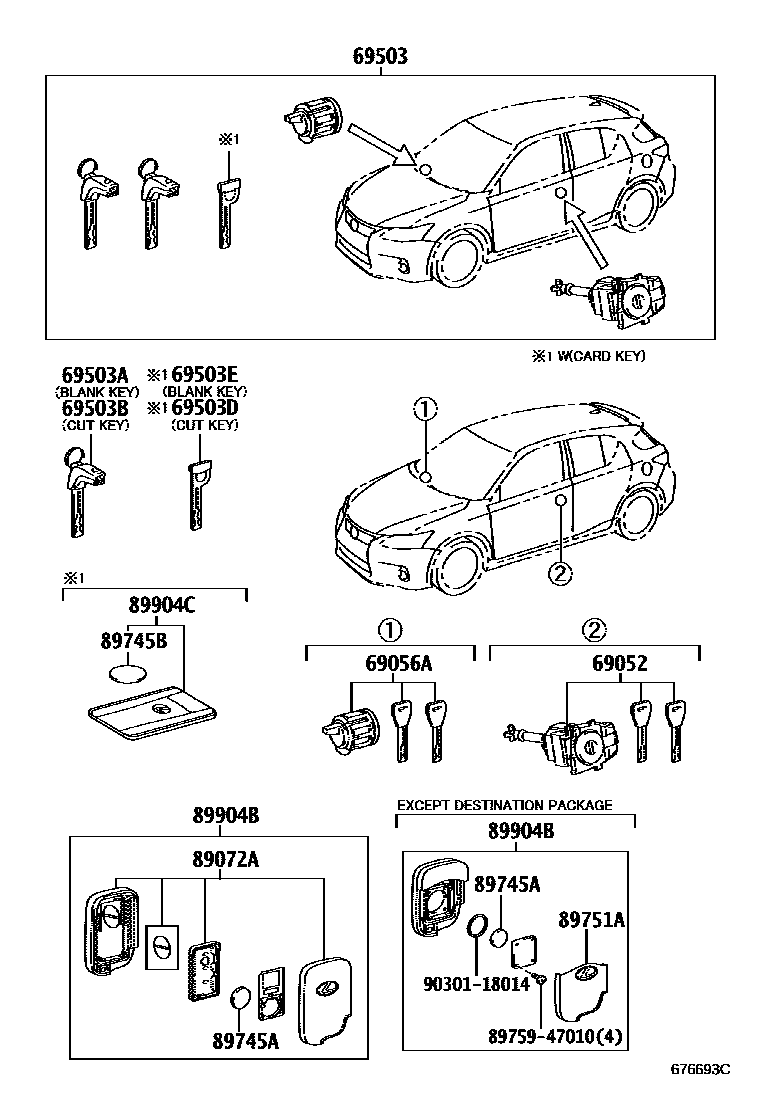

LOCK CYLINDER SET

0001 1 0002 1

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-76010iZWA10..LHD201012-202009

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-50160iZWA10201012-202009

69503CYLINDER SET, LOCK

main69005-76010iZWA10..RHD201012-202007

main69005-76030iZWA10..LHD201012-202009

69503AKEY, BLANK

main69515-50260iZWA10201012-202009

BLANK KEY

69503BKEY, CUT

main69515-50240iZWA10201012-202009

MASTER KEY

69503DKEY, CUT(CARD KEY)

69503EKEY, BLANK(CARD KEY)

main69515-50270iZWA10201012-202009

BLANK KEY

sub69515-30350

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

89745ABATTERY, TRANSMITTER

main89745-52030iZWA10201012-202009

89745BBATTERY, TRANSMITTER(CARD KEY)

89751ACOVER, TRANSMITTER HOUSING

main89751-48340iZWA10201012-202009

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-48521iZWA10201012-202009

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

8975947010SCREW, DOOR CONTROL TRANSMITTER

main89759-47010

9030118014

main90301-18014

15 parts on this diagram · 2 diagrams in section
