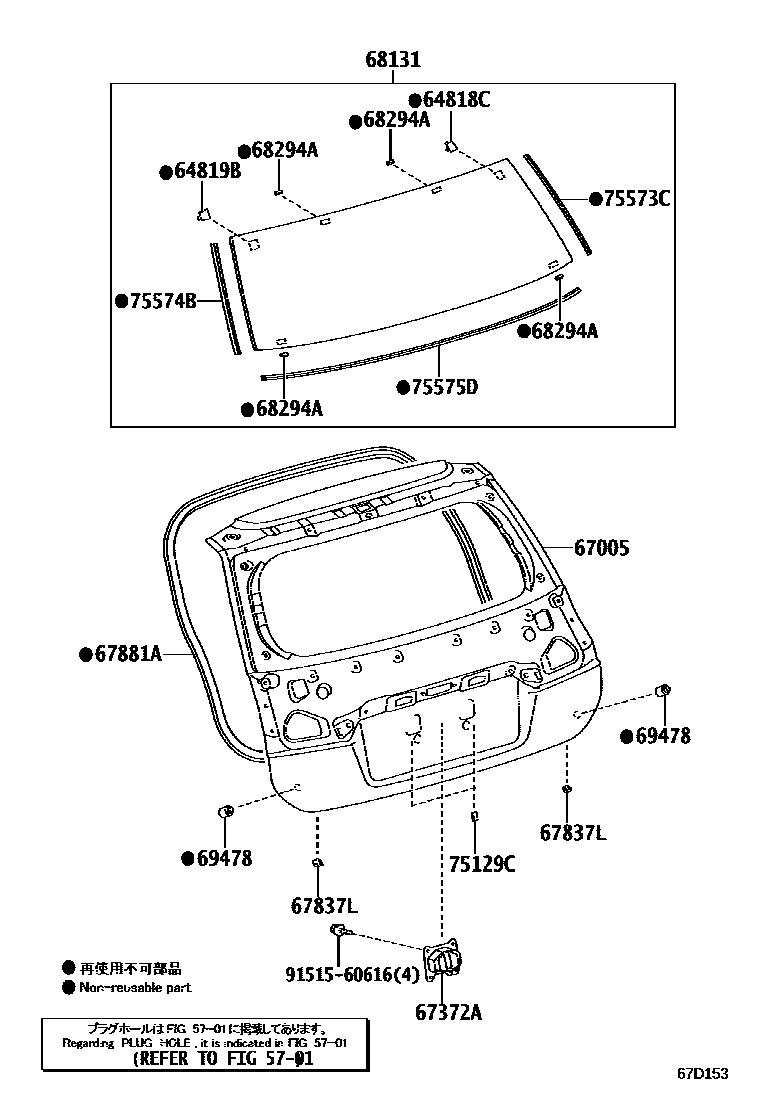

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-76010iZWA10201012-202009

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-76010iZWA10201012-202009

67005PANEL SUB-ASSY, BACK DOOR

main67005-76030iZWA10201012-202009

67372AWEIGHT, BACK DOOR

main67372-76010iZWA10201012-202009

67837LSEAL, DOOR DUST PROOF

main67837-48100iZWA10201510-202009

main67837-76010iZWA10201012-201509

sub67837-48100

67881AWEATHERSTRIP, BACK DOOR

main67881-76010iZWA10201012-202009

68131GLASS, BACK DOOR

main68105-76030iZWA10..B201012-201312

AUDIO-AM/FM CD 6SPEAKER

main68105-76030iZWA10..B201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main68105-76040iZWA10..E201012-201312

main68105-76040iZWA10..E201312-202009

*UVCEHT,T=3.1,GREEN

main68105-76200iZWA10..B201312-202009

*UVCEHT,T=3.1,GREEN

main68105-76200iZWA10..B201312-202009

*UVCEHT,T=3.1,GREEN,AUDIO-AM/FM & CD & 6SPEAKER

main68105-76200iZWA10..B201312-202009

*UVCEHT,T=3.1,GREEN,AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main68105-76200iZWA10..B201312-202009

*UVCEHT,T=3.1,GREEN,AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030iZWA10201012-202009

69478CUSHION, BACK DOOR LOWER STOPPER

main69478-47010iZWA10201012-202009

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iZWA10201012-201205

main75129-30010iZWA10201205-202009

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-76010iZWA10201012-202009

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-76010iZWA10201012-202009

75575DMOULDING, BACK WINDOW, LOWER

main75575-76010iZWA10201012-202009

9151560616

main91515-60616

15 parts on this diagram · 2 diagrams in section
