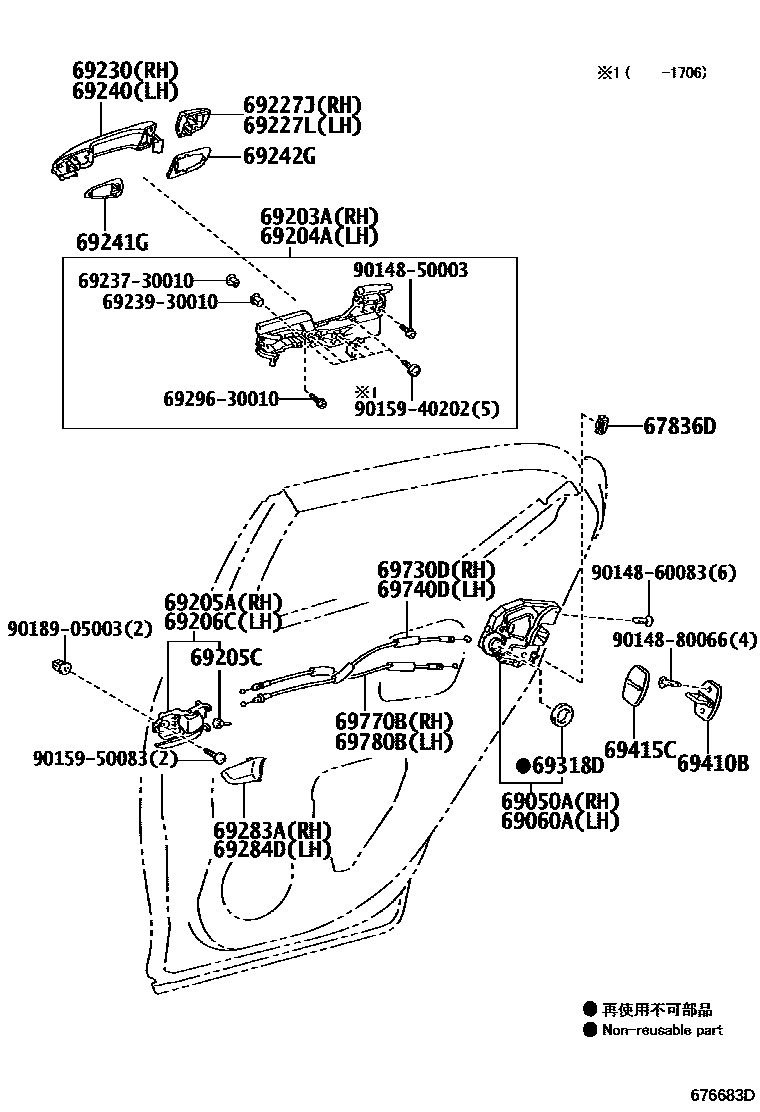

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69415CCOVER, DOOR LOCK STRIKER, REAR
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015940202
main90159-40202
9015950083
main90159-50083
9018905003
main90189-05003
32 parts on this diagram · 1 diagram in section
