EPC Data

FRONT DOOR LOCK & HANDLE

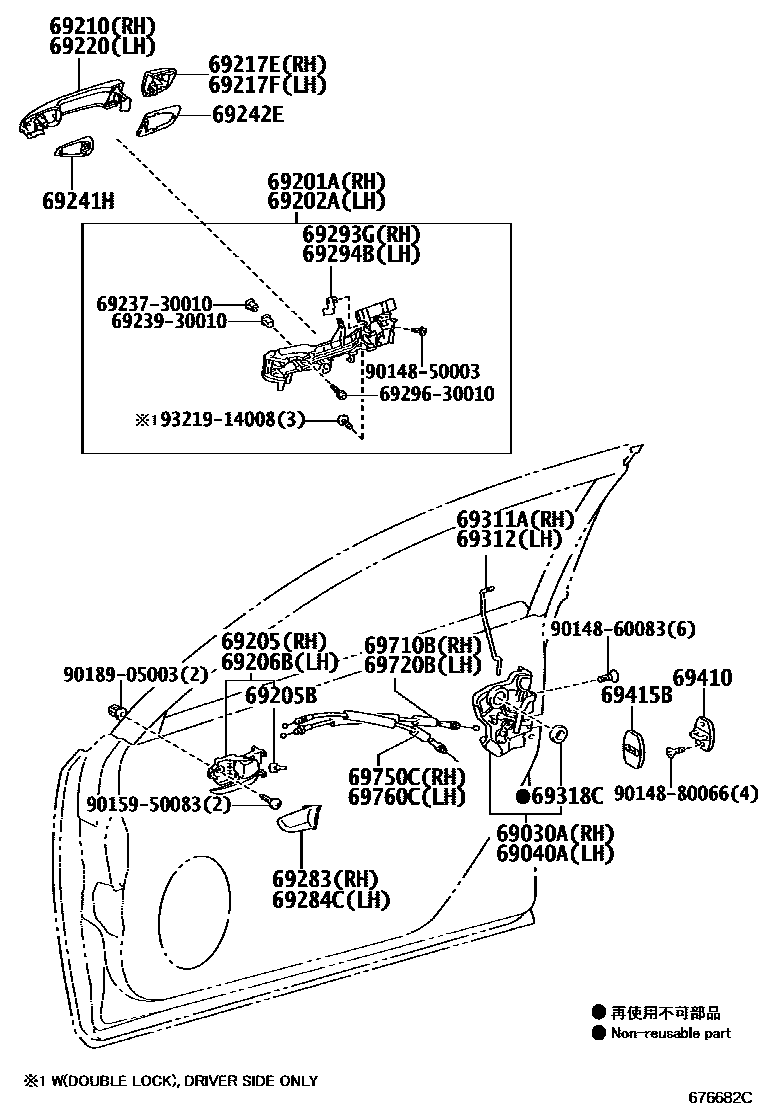

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-42221i201012-201208
main69030-53080i201012-202007
main69030-60240i201208-202009
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-42241i201012-202009
main69040-53090i201012-201208
main69040-60220i201208-202007
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-48011i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON)
sub69201-48012
main69201-48011i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON)
sub69201-48012
main69201-48011i201312-201705
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON)
sub69201-48012
main69201-48011i201312-201705
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON)
sub69201-48012
main69201-48012i201706-202009
main69201-76010i201012-201705
sub69201-76011
main69201-76011i201706-202007
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-48011i201012-201705
sub69202-48012
main69202-48012i201706-202009
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-75010-C0i201012-201312
BLACK,TRIM0#,2#,3#,4#,8#
main69205-75010-C0i201312-202009
BLACK,TRIM0#,2#,3#,4#,5#,8#
main69205-75010-C0i201312-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i201012-202009
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-75010-C0i201012-201312
BLACK,TRIM0#,2#,3#,4#,8#
main69206-75010-C0i201312-202009
BLACK,TRIM0#,2#,3#,4#,5#,8#
main69206-75010-C0i201312-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-48040-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69210-48040
main69210-48040-A0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),WHITE PEARL CS.,077
sub69210-48040
main69210-48040-A0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),WHITE PEARL CS.,077
sub69210-48040
main69210-48040-A0i201012-201312
WHITE PEARL CS.,077
sub69210-48040
main69210-48040-A0i201312-201408
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),WHITE PEARL CS.,077 ,2LH
sub69210-48040
main69210-48040-A0i201312-201408
SMART ENTRY(DOOR)-WITH,WHITE PEARL CS.,077 ,2LH
sub69210-48040
main69210-48040-A2i201208-201312
WHITE NOVA GF.,083
sub69210-48040
main69210-48040-A2i201312-202007
WHITE NOVA GF.,083 ,2LJ
sub69210-48040
main69210-48040-A2i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),WHITE NOVA GF.,083
sub69210-48040
main69210-48040-A2i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),WHITE NOVA GF.,083
sub69210-48040
main69210-48040-A3i201408-202007
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69210-48040
main69210-48040-B0i201012-201108
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),DK.GRAY MC.,1G0
sub69210-48040
main69210-48040-B0i201012-201108
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),DK.GRAY MC.,1G0
sub69210-48040
main69210-48040-B0i201012-201108
DK.GRAY MC.,1G0
sub69210-48040
main69210-48040-B2i201012-201208
SILVER M.M.,1G1
sub69210-48040
main69210-48040-B2i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),SILVER M.M.,1G1
sub69210-48040
main69210-48040-B2i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),SILVER M.M.,1G1
sub69210-48040
main69210-48040-B4i201108-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69210-48040
main69210-48040-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69210-48040
main69210-48040-B4i201108-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69210-48040
main69210-48040-B4i201312-202007
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69210-48040
main69210-48040-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69210-48040
main69210-48040-B6i201312-201606
SMART ENTRY(DOOR)-WITH,PLATINUM SILVER ME.,1J4 ,2LK
sub69210-48040
main69210-48040-B6i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),PLATINUM SILVER ME.,1J4 ,2LK
sub69210-48040
main69210-48040-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69210-48040
main69210-48040-B6i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69210-48040
main69210-48040-B6i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69210-48040
main69210-48040-B7i201412-202007
SONIC TITANIUM,1J7 ,2MN
sub69210-48040
main69210-48040-C0i201012-201312
BLACK,212
sub69210-48040
main69210-48040-C0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK,212
sub69210-48040
main69210-48040-C0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLACK,212
sub69210-48040
main69210-48040-C0i201312-202007
BLACK,212 ,2PZ
sub69210-48040
main69210-48040-C1i201312-201508
SMART ENTRY(DOOR)-WITH,BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C1i201012-201508
BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C1i201312-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C1i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C1i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK OPAL MC.,214
sub69210-48040
main69210-48040-C2i201412-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),STARLIGHT BLACK GF.,217
sub69210-48040
main69210-48040-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69210-48040
main69210-48040-C2i201412-201508
SMART ENTRY(DOOR)-WITH,STARLIGHT BLACK GF.,217
sub69210-48040
main69210-48040-C3i201508-202007
GRAPHITE BLACK GF.,223 ,2PZ
sub69210-48040
main69210-48040-D0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),RED MC.CS.,3R1
sub69210-48040
main69210-48040-D0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),RED MC.CS.,3R1
sub69210-48040
main69210-48040-D0i201012-201312
RED MC.CS.,3R1
sub69210-48040
main69210-48040-D0i201312-202007
RED MC.CS.,2LM ,2QA ,3R1
sub69210-48040
main69210-48040-D4i201312-202007
SOLID RED,2LN ,3T2
sub69210-48040
main69210-48040-E2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E2i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E2i201312-201606
SMART ENTRY(DOOR)-WITH,FIRE AGATE M.M.,4V3
sub69210-48040
main69210-48040-E4i201606-202007
AMBER CS.,2PW ,4X2
sub69210-48040
main69210-48040-E5i201708-202007
LAVA ORANGE CS.,2QE ,4W7
sub69210-48040
main69210-48040-F0i201312-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),FLARE YELLOW M.M.,2LP ,5B1
sub69210-48040
main69210-48040-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69210-48040
main69210-48040-F0i201312-201508
SMART ENTRY(DOOR)-WITH,FLARE YELLOW M.M.,2LP ,5B1
sub69210-48040
main69210-48040-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69210-48040
main69210-48040-F0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69210-48040
main69210-48040-F0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69210-48040
main69210-48040-J1i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69210-48040
main69210-48040-J1i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69210-48040
main69210-48040-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69210-48040
main69210-48040-J2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLUE ME.,8U1
sub69210-48040
main69210-48040-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69210-48040
main69210-48040-J2i201012-201312
BLUE ME.,8U1
sub69210-48040
main69210-48040-J2i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),BLUE ME.,2LQ ,8U1
sub69210-48040
main69210-48040-J2i201312-201606
SMART ENTRY(DOOR)-WITH,BLUE ME.,2LQ ,8U1
sub69210-48040
main69210-48040-J2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLUE ME.,8U1
sub69210-48040
main69210-48040-J5i201508-202007
DEEP BLUE MC.,2PK ,8X5
sub69210-48040
main69210-48040-J6i201708-202007
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69210-48040
main69210-48040-J7i201606-202007
SPARKLING METEOR ME.,2PX ,8X9
sub69210-48040
main69210-76010-A0i201312-201408
SMART ENTRY(DOOR)-WITHOUT,WHITE PEARL CS.,077 ,2LH
sub69210-76010
main69210-76010-A0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A0i201012-201312
WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),WHITE PEARL CS.,077
sub69210-76010
main69210-76010-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69210-76010
main69210-76010-A2i201208-201312
WHITE NOVA GF.,083
sub69210-76010
main69210-76010-A2i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),WHITE NOVA GF.,083
sub69210-76010
main69210-76010-A2i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),WHITE NOVA GF.,083
sub69210-76010
main69210-76010-A2i201312-202009
WHITE NOVA GF.,083 ,2LJ
sub69210-76010
main69210-76010-A3i201408-202009
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69210-76010
main69210-76010-B0i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),SILVER M.M.,1G1
sub69210-76010
main69210-76010-B0i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),SILVER M.M.,1G1
sub69210-76010
main69210-76010-B0i201012-201208
SILVER M.M.,1G1
sub69210-76010
main69210-76010-B1i201108-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B1i201108-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B1i201108-201312
MERCURY GRAY MC.,1H9
sub69210-76010
main69210-76010-B1i201312-202009
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69210-76010
main69210-76010-B2i201012-201108
DK.GRAY MC.,1G0
sub69210-76010
main69210-76010-B2i201012-201108
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),DK.GRAY MC.,1G0
sub69210-76010
main69210-76010-B2i201012-201108
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),DK.GRAY MC.,1G0
sub69210-76010
main69210-76010-B4i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),PLATINUM SILVER ME.,1J4 ,2LK
sub69210-76010
main69210-76010-B4i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-B4i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-B4i201208-201312
PLATINUM SILVER ME.,1J4
sub69210-76010
main69210-76010-B4i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69210-76010
main69210-76010-B4i201312-201606
SMART ENTRY(DOOR)-WITHOUT,PLATINUM SILVER ME.,1J4 ,2LK
sub69210-76010
main69210-76010-B5i201412-202009
SONIC TITANIUM,1J7 ,2MN
sub69210-76010
main69210-76010-C0i201012-201312
BLACK,212
sub69210-76010
main69210-76010-C0i201312-202009
BLACK,083 ,212 ,2LJ ,2PZ
sub69210-76010
main69210-76010-C0i201312-202009
BLACK,212 ,2PZ
sub69210-76010
main69210-76010-C0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLACK,212
sub69210-76010
main69210-76010-C0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLACK,212
sub69210-76010
main69210-76010-C1i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C1i201012-201508
BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C1i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C1i201312-201508
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C1i201312-201508
SMART ENTRY(DOOR)-WITHOUT,BLACK OPAL MC.,214
sub69210-76010
main69210-76010-C2i201412-201508
SMART ENTRY(DOOR)-WITHOUT,STARLIGHT BLACK GF.,217
sub69210-76010
main69210-76010-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69210-76010
main69210-76010-C3i201508-202009
GRAPHITE BLACK GF.,223 ,2PZ
sub69210-76010
main69210-76010-D0i201012-201312
RED MC.CS.,3R1
sub69210-76010
main69210-76010-D0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),RED MC.CS.,3R1
sub69210-76010
main69210-76010-D0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),RED MC.CS.,3R1
sub69210-76010
main69210-76010-D0i201312-202009
RED MC.CS.,2LM ,2QA ,3R1
sub69210-76010
main69210-76010-D3i201312-202009
SOLID RED,2LN ,3T2
sub69210-76010
main69210-76010-E0i201012-201606
FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E0i201312-201606
SMART ENTRY(DOOR)-WITHOUT,FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E0i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69210-76010
main69210-76010-E2i201606-202008
AMBER CS.,2PW ,4X2
sub69210-76010
main69210-76010-E3i201708-202008
LAVA ORANGE CS.,2QE ,4W7
sub69210-76010
main69210-76010-E4i202008-202009
BLAZING CARNELIAN CONTRAS,4Y1
sub69210-76010
main69210-76010-F0i201312-201508
SMART ENTRY(DOOR)-WITHOUT,FLARE YELLOW M.M.,2LP ,5B1
sub69210-76010
main69210-76010-F0i201312-201508
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),FLARE YELLOW M.M.,2LP ,5B1
sub69210-76010
main69210-76010-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69210-76010
main69210-76010-F0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69210-76010
main69210-76010-F0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69210-76010
main69210-76010-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69210-76010
main69210-76010-G0i202008-202009
TERRANE KHAKI M.M.,6X4
sub69210-76010
main69210-76010-J0i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),BLUE ME.,2LQ ,8U1
sub69210-76010
main69210-76010-J0i201312-201606
SMART ENTRY(DOOR)-WITHOUT,BLUE ME.,2LQ ,8U1
sub69210-76010
main69210-76010-J0i201312-201606
BLUE ME.,2LQ ,8U1
sub69210-76010
main69210-76010-J0i201012-201312
BLUE ME.,8U1
sub69210-76010
main69210-76010-J0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLUE ME.,8U1
sub69210-76010
main69210-76010-J0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLUE ME.,8U1
sub69210-76010
main69210-76010-J1i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69210-76010
main69210-76010-J1i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69210-76010
main69210-76010-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69210-76010
main69210-76010-J5i201708-202009
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69210-76010
main69210-76010-J6i201508-202009
DEEP BLUE MC.,2PK ,8X5
sub69210-76010
main69210-76010-J7i201606-202008
SPARKLING METEOR ME.,2PX ,8X9
sub69210-76010
main69210-76010-J8i202008-202009
CELESTIAL BLUE GF.,8Y6
sub69210-76010
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-48010-A0i201012-201312
WHITE PEARL CS.,077
sub69217-48010
main69217-48010-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69217-48010
main69217-48010-A2i201312-202007
WHITE NOVA GF.,083 ,2LJ
sub69217-48010
main69217-48010-A2i201208-201312
WHITE NOVA GF.,083
sub69217-48010
main69217-48010-A3i201408-202007
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69217-48010
main69217-48010-B0i201012-201108
DK.GRAY MC.,1G0
sub69217-48010
main69217-48010-B2i201012-201208
SILVER M.M.,1G1
sub69217-48010
main69217-48010-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69217-48010
main69217-48010-B4i201312-202007
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69217-48010
main69217-48010-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69217-48010
main69217-48010-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69217-48010
main69217-48010-B7i201412-202007
SONIC TITANIUM,1J7 ,2MN
sub69217-48010
main69217-48010-C0i201012-201312
BLACK,212
sub69217-48010
main69217-48010-C0i201312-202007
BLACK,212 ,2PZ
sub69217-48010
main69217-48010-C1i201012-201508
BLACK OPAL MC.,214
sub69217-48010
main69217-48010-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69217-48010
main69217-48010-C3i201508-202007
GRAPHITE BLACK GF.,223 ,2PZ
sub69217-48010
main69217-48010-D0i201012-201312
RED MC.CS.,3R1
sub69217-48010
main69217-48010-D0i201312-202007
RED MC.CS.,2LM ,2QA ,3R1
sub69217-48010
main69217-48010-D4i201312-202007
SOLID RED,2LN ,3T2
sub69217-48010
main69217-48010-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69217-48010
main69217-48010-E4i201606-202007
AMBER CS.,2PW ,4X2
sub69217-48010
main69217-48010-E5i201708-202007
LAVA ORANGE CS.,2QE ,4W7
sub69217-48010
main69217-48010-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69217-48010
main69217-48010-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69217-48010
main69217-48010-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69217-48010
main69217-48010-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69217-48010
main69217-48010-J2i201012-201312
BLUE ME.,8U1
sub69217-48010
main69217-48010-J5i201508-202007
DEEP BLUE MC.,2PK ,8X5
sub69217-48010
main69217-48010-J6i201708-202007
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69217-48010
main69217-48010-J7i201606-202007
SPARKLING METEOR ME.,2PX ,8X9
sub69217-48010
main69217-48020-A0i201012-201312
WHITE PEARL CS.,077
sub69217-48020
main69217-48020-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69217-48020
main69217-48020-A2i201312-202009
WHITE NOVA GF.,083 ,2LJ
sub69217-48020
main69217-48020-A2i201208-201312
WHITE NOVA GF.,083
sub69217-48020
main69217-48020-A3i201408-202009
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69217-48020
main69217-48020-B0i201012-201108
DK.GRAY MC.,1G0
sub69217-48020
main69217-48020-B2i201012-201208
SILVER M.M.,1G1
sub69217-48020
main69217-48020-B4i201312-202009
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69217-48020
main69217-48020-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69217-48020
main69217-48020-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69217-48020
main69217-48020-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69217-48020
main69217-48020-B7i201412-202009
SONIC TITANIUM,1J7 ,2MN
sub69217-48020
main69217-48020-C0i201312-202009
BLACK,212 ,2PZ
sub69217-48020
main69217-48020-C0i201312-202009
BLACK,083 ,212 ,2LJ ,2PZ
sub69217-48020
main69217-48020-C0i201012-201312
BLACK,212
sub69217-48020
main69217-48020-C1i201012-201508
BLACK OPAL MC.,214
sub69217-48020
main69217-48020-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69217-48020
main69217-48020-C3i201508-202009
GRAPHITE BLACK GF.,223 ,2PZ
sub69217-48020
main69217-48020-D0i201012-201312
RED MC.CS.,3R1
sub69217-48020
main69217-48020-D0i201312-202009
RED MC.CS.,2LM ,2QA ,3R1
sub69217-48020
main69217-48020-D4i201312-202009
SOLID RED,2LN ,3T2
sub69217-48020
main69217-48020-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69217-48020
main69217-48020-E4i201606-202008
AMBER CS.,2PW ,4X2
sub69217-48020
main69217-48020-E5i201708-202008
LAVA ORANGE CS.,2QE ,4W7
sub69217-48020
main69217-48020-E6i202008-202009
BLAZING CARNELIAN CONTRAS,4Y1
sub69217-48020
main69217-48020-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69217-48020
main69217-48020-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69217-48020
main69217-48020-G0i202008-202009
TERRANE KHAKI M.M.,6X4
sub69217-48020
main69217-48020-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69217-48020
main69217-48020-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69217-48020
main69217-48020-J2i201012-201312
BLUE ME.,8U1
sub69217-48020
main69217-48020-J5i201508-202009
DEEP BLUE MC.,2PK ,8X5
sub69217-48020
main69217-48020-J6i201708-202009
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69217-48020
main69217-48020-J7i201606-202008
SPARKLING METEOR ME.,2PX ,8X9
sub69217-48020
main69217-48020-J8i202008-202009
CELESTIAL BLUE GF.,8Y6
sub69217-48020
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-48010-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69218-48010
main69218-48010-A0i201012-201312
WHITE PEARL CS.,077
sub69218-48010
main69218-48010-A2i201208-201312
WHITE NOVA GF.,083
sub69218-48010
main69218-48010-A2i201312-202007
WHITE NOVA GF.,083 ,2LJ
sub69218-48010
main69218-48010-A3i201408-202007
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69218-48010
main69218-48010-B0i201012-201108
DK.GRAY MC.,1G0
sub69218-48010
main69218-48010-B2i201012-201208
SILVER M.M.,1G1
sub69218-48010
main69218-48010-B4i201312-202007
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69218-48010
main69218-48010-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69218-48010
main69218-48010-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69218-48010
main69218-48010-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69218-48010
main69218-48010-B7i201412-202007
SONIC TITANIUM,1J7 ,2MN
sub69218-48010
main69218-48010-C0i201012-201312
BLACK,212
sub69218-48010
main69218-48010-C0i201312-202007
BLACK,212 ,2PZ
sub69218-48010
main69218-48010-C1i201012-201508
BLACK OPAL MC.,214
sub69218-48010
main69218-48010-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69218-48010
main69218-48010-C3i201508-202007
GRAPHITE BLACK GF.,223 ,2PZ
sub69218-48010
main69218-48010-D0i201312-202007
RED MC.CS.,2LM ,2QA ,3R1
sub69218-48010
main69218-48010-D0i201012-201312
RED MC.CS.,3R1
sub69218-48010
main69218-48010-D4i201312-202007
SOLID RED,2LN ,3T2
sub69218-48010
main69218-48010-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69218-48010
main69218-48010-E4i201606-202007
AMBER CS.,2PW ,4X2
sub69218-48010
main69218-48010-E5i201708-202007
LAVA ORANGE CS.,2QE ,4W7
sub69218-48010
main69218-48010-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69218-48010
main69218-48010-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69218-48010
main69218-48010-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69218-48010
main69218-48010-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69218-48010
main69218-48010-J2i201012-201312
BLUE ME.,8U1
sub69218-48010
main69218-48010-J5i201508-202007
DEEP BLUE MC.,2PK ,8X5
sub69218-48010
main69218-48010-J6i201708-202007
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69218-48010
main69218-48010-J7i201606-202007
SPARKLING METEOR ME.,2PX ,8X9
sub69218-48010
main69218-48020-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69218-48020
main69218-48020-A0i201012-201312
WHITE PEARL CS.,077
sub69218-48020
main69218-48020-A2i201312-202009
WHITE NOVA GF.,083 ,2LJ
sub69218-48020
main69218-48020-A2i201208-201312
WHITE NOVA GF.,083
sub69218-48020
main69218-48020-A3i201408-202009
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69218-48020
main69218-48020-B0i201012-201108
DK.GRAY MC.,1G0
sub69218-48020
main69218-48020-B2i201012-201208
SILVER M.M.,1G1
sub69218-48020
main69218-48020-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69218-48020
main69218-48020-B4i201312-202009
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69218-48020
main69218-48020-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69218-48020
main69218-48020-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69218-48020
main69218-48020-B7i201412-202009
SONIC TITANIUM,1J7 ,2MN
sub69218-48020
main69218-48020-C0i201312-202009
BLACK,212 ,2PZ
sub69218-48020
main69218-48020-C0i201312-202009
BLACK,083 ,212 ,2LJ ,2PZ
sub69218-48020
main69218-48020-C0i201012-201312
BLACK,212
sub69218-48020
main69218-48020-C1i201012-201508
BLACK OPAL MC.,214
sub69218-48020
main69218-48020-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69218-48020
main69218-48020-C3i201508-202009
GRAPHITE BLACK GF.,223 ,2PZ
sub69218-48020
main69218-48020-D0i201312-202009
RED MC.CS.,2LM ,2QA ,3R1
sub69218-48020
main69218-48020-D0i201012-201312
RED MC.CS.,3R1
sub69218-48020
main69218-48020-D4i201312-202009
SOLID RED,2LN ,3T2
sub69218-48020
main69218-48020-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69218-48020
main69218-48020-E4i201606-202008
AMBER CS.,2PW ,4X2
sub69218-48020
main69218-48020-E5i201708-202008
LAVA ORANGE CS.,2QE ,4W7
sub69218-48020
main69218-48020-E6i202008-202009
BLAZING CARNELIAN CONTRAS,4Y1
sub69218-48020
main69218-48020-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69218-48020
main69218-48020-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69218-48020
main69218-48020-G0i202008-202009
TERRANE KHAKI M.M.,6X4
sub69218-48020
main69218-48020-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69218-48020
main69218-48020-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69218-48020
main69218-48020-J2i201012-201312
BLUE ME.,8U1
sub69218-48020
main69218-48020-J5i201508-202009
DEEP BLUE MC.,2PK ,8X5
sub69218-48020
main69218-48020-J6i201708-202009
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69218-48020
main69218-48020-J7i201606-202008
SPARKLING METEOR ME.,2PX ,8X9
sub69218-48020
main69218-48020-J8i202008-202009
CELESTIAL BLUE GF.,8Y6
sub69218-48020
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-48040-A0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),WHITE PEARL CS.,077
sub69220-48040
main69220-48040-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69220-48040
main69220-48040-A0i201312-201408
SMART ENTRY(DOOR)-WITH,WHITE PEARL CS.,077 ,2LH
sub69220-48040
main69220-48040-A0i201312-201408
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),WHITE PEARL CS.,077 ,2LH
sub69220-48040
main69220-48040-A0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),WHITE PEARL CS.,077
sub69220-48040
main69220-48040-A0i201012-201312
WHITE PEARL CS.,077
sub69220-48040
main69220-48040-A2i201208-201312
WHITE NOVA GF.,083
sub69220-48040
main69220-48040-A2i201312-202007
WHITE NOVA GF.,083 ,2LJ
sub69220-48040
main69220-48040-A2i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),WHITE NOVA GF.,083
sub69220-48040
main69220-48040-A2i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),WHITE NOVA GF.,083
sub69220-48040
main69220-48040-A3i201408-202007
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69220-48040
main69220-48040-B0i201012-201108
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),DK.GRAY MC.,1G0
sub69220-48040
main69220-48040-B0i201012-201108
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),DK.GRAY MC.,1G0
sub69220-48040
main69220-48040-B0i201012-201108
DK.GRAY MC.,1G0
sub69220-48040
main69220-48040-B2i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),SILVER M.M.,1G1
sub69220-48040
main69220-48040-B2i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),SILVER M.M.,1G1
sub69220-48040
main69220-48040-B2i201012-201208
SILVER M.M.,1G1
sub69220-48040
main69220-48040-B4i201108-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69220-48040
main69220-48040-B4i201312-202007
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69220-48040
main69220-48040-B4i201108-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69220-48040
main69220-48040-B4i201108-201312
MERCURY GRAY MC.,1H9
sub69220-48040
main69220-48040-B6i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69220-48040
main69220-48040-B6i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69220-48040
main69220-48040-B6i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),PLATINUM SILVER ME.,1J4 ,2LK
sub69220-48040
main69220-48040-B6i201312-201606
SMART ENTRY(DOOR)-WITH,PLATINUM SILVER ME.,1J4 ,2LK
sub69220-48040
main69220-48040-B6i201208-201312
PLATINUM SILVER ME.,1J4
sub69220-48040
main69220-48040-B6i201208-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69220-48040
main69220-48040-B7i201412-202007
SONIC TITANIUM,1J7 ,2MN
sub69220-48040
main69220-48040-C0i201312-202007
BLACK,212 ,2PZ
sub69220-48040
main69220-48040-C0i201012-201312
BLACK,212
sub69220-48040
main69220-48040-C0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLACK,212
sub69220-48040
main69220-48040-C0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK,212
sub69220-48040
main69220-48040-C1i201312-201508
SMART ENTRY(DOOR)-WITH,BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C1i201012-201508
BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C1i201312-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C1i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C1i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLACK OPAL MC.,214
sub69220-48040
main69220-48040-C2i201412-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),STARLIGHT BLACK GF.,217
sub69220-48040
main69220-48040-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69220-48040
main69220-48040-C2i201412-201508
SMART ENTRY(DOOR)-WITH,STARLIGHT BLACK GF.,217
sub69220-48040
main69220-48040-C3i201508-202007
GRAPHITE BLACK GF.,223 ,2PZ
sub69220-48040
main69220-48040-D0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),RED MC.CS.,3R1
sub69220-48040
main69220-48040-D0i201012-201312
RED MC.CS.,3R1
sub69220-48040
main69220-48040-D0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),RED MC.CS.,3R1
sub69220-48040
main69220-48040-D0i201312-202007
RED MC.CS.,2LM ,2QA ,3R1
sub69220-48040
main69220-48040-D4i201312-202007
SOLID RED,2LN ,3T2
sub69220-48040
main69220-48040-E2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E2i201312-201606
SMART ENTRY(DOOR)-WITH,FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E2i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E2i201012-201606
FIRE AGATE M.M.,4V3
sub69220-48040
main69220-48040-E4i201606-202007
AMBER CS.,2PW ,4X2
sub69220-48040
main69220-48040-E5i201708-202007
LAVA ORANGE CS.,2QE ,4W7
sub69220-48040
main69220-48040-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69220-48040
main69220-48040-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69220-48040
main69220-48040-F0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69220-48040
main69220-48040-F0i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69220-48040
main69220-48040-F0i201312-201508
SMART ENTRY(DOOR)-WITH,FLARE YELLOW M.M.,2LP ,5B1
sub69220-48040
main69220-48040-F0i201312-201508
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),FLARE YELLOW M.M.,2LP ,5B1
sub69220-48040
main69220-48040-J1i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69220-48040
main69220-48040-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69220-48040
main69220-48040-J1i201012-201208
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69220-48040
main69220-48040-J2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY & PANIC BUTTON),BLUE ME.,8U1
sub69220-48040
main69220-48040-J2i201012-201312
BLUE ME.,8U1
sub69220-48040
main69220-48040-J2i201312-201606
BLUE ME.,2LQ ,8U1
sub69220-48040
main69220-48040-J2i201312-201606
SMART ENTRY(DOOR)-WITH,BLUE ME.,2LQ ,8U1
sub69220-48040
main69220-48040-J2i201312-201606
SMART ENTRY(DOOR)-WITH & WITH(PANIC BUTTON),BLUE ME.,2LQ ,8U1
sub69220-48040
main69220-48040-J2i201012-201312
WIRELESS DOOR LOCK-W(SMART ENTRY) & W/O(PANIC BUTTON),BLUE ME.,8U1
sub69220-48040
main69220-48040-J5i201508-202007
DEEP BLUE MC.,2PK ,8X5
sub69220-48040
main69220-48040-J6i201708-202007
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69220-48040
main69220-48040-J7i201606-202007
SPARKLING METEOR ME.,2PX ,8X9
sub69220-48040
main69220-76010-A0i201012-201312
WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A0i201312-201408
SMART ENTRY(DOOR)-WITHOUT,WHITE PEARL CS.,077 ,2LH
sub69220-76010
main69220-76010-A0i201312-201408
WHITE PEARL CS.,077 ,2LH
sub69220-76010
main69220-76010-A0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),WHITE PEARL CS.,077
sub69220-76010
main69220-76010-A2i201208-201312
WHITE NOVA GF.,083
sub69220-76010
main69220-76010-A2i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),WHITE NOVA GF.,083
sub69220-76010
main69220-76010-A2i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),WHITE NOVA GF.,083
sub69220-76010
main69220-76010-A2i201312-202009
WHITE NOVA GF.,083 ,2LJ
sub69220-76010
main69220-76010-A3i201408-202009
SONIC QUARTZ,085 ,2MP ,2QB ,2QC
sub69220-76010
main69220-76010-B0i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),SILVER M.M.,1G1
sub69220-76010
main69220-76010-B0i201012-201208
SILVER M.M.,1G1
sub69220-76010
main69220-76010-B0i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),SILVER M.M.,1G1
sub69220-76010
main69220-76010-B1i201312-202009
MERCURY GRAY MC.,1H9 ,2LK ,2LL
sub69220-76010
main69220-76010-B1i201108-201312
MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B1i201108-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B1i201108-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),MERCURY GRAY MC.,1H9
sub69220-76010
main69220-76010-B2i201012-201108
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),DK.GRAY MC.,1G0
sub69220-76010
main69220-76010-B2i201012-201108
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),DK.GRAY MC.,1G0
sub69220-76010
main69220-76010-B2i201012-201108
DK.GRAY MC.,1G0
sub69220-76010
main69220-76010-B4i201312-201606
PLATINUM SILVER ME.,1J4 ,2LK
sub69220-76010
main69220-76010-B4i201208-201312
PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-B4i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-B4i201208-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),PLATINUM SILVER ME.,1J4
sub69220-76010
main69220-76010-B4i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),PLATINUM SILVER ME.,1J4 ,2LK
sub69220-76010
main69220-76010-B4i201312-201606
SMART ENTRY(DOOR)-WITHOUT,PLATINUM SILVER ME.,1J4 ,2LK
sub69220-76010
main69220-76010-B5i201412-202009
SONIC TITANIUM,1J7 ,2MN
sub69220-76010
main69220-76010-C0i201012-201312
BLACK,212
sub69220-76010
main69220-76010-C0i201312-202009
BLACK,083 ,212 ,2LJ ,2PZ
sub69220-76010
main69220-76010-C0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLACK,212
sub69220-76010
main69220-76010-C0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLACK,212
sub69220-76010
main69220-76010-C0i201312-202009
BLACK,212 ,2PZ
sub69220-76010
main69220-76010-C1i201312-201508
SMART ENTRY(DOOR)-WITHOUT,BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C1i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C1i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C1i201012-201508
BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C1i201312-201508
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),BLACK OPAL MC.,214
sub69220-76010
main69220-76010-C2i201412-201508
SMART ENTRY(DOOR)-WITHOUT,STARLIGHT BLACK GF.,217
sub69220-76010
main69220-76010-C2i201412-201508
STARLIGHT BLACK GF.,217
sub69220-76010
main69220-76010-C3i201508-202009
GRAPHITE BLACK GF.,223 ,2PZ
sub69220-76010
main69220-76010-D0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),RED MC.CS.,3R1
sub69220-76010
main69220-76010-D0i201012-201312
RED MC.CS.,3R1
sub69220-76010
main69220-76010-D0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),RED MC.CS.,3R1
sub69220-76010
main69220-76010-D0i201312-202009
RED MC.CS.,2LM ,2QA ,3R1
sub69220-76010
main69220-76010-D3i201312-202009
SOLID RED,2LN ,3T2
sub69220-76010
main69220-76010-E0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E0i201012-201606
FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E0i201312-201606
SMART ENTRY(DOOR)-WITHOUT,FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E0i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),FIRE AGATE M.M.,4V3
sub69220-76010
main69220-76010-E2i201606-202008
AMBER CS.,2PW ,4X2
sub69220-76010
main69220-76010-E3i201708-202008
LAVA ORANGE CS.,2QE ,4W7
sub69220-76010
main69220-76010-E4i202008-202009
BLAZING CARNELIAN CONTRAS,4Y1
sub69220-76010
main69220-76010-F0i201312-201508
FLARE YELLOW M.M.,2LP ,5B1
sub69220-76010
main69220-76010-F0i201312-201508
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),FLARE YELLOW M.M.,2LP ,5B1
sub69220-76010
main69220-76010-F0i201312-201508
SMART ENTRY(DOOR)-WITHOUT,FLARE YELLOW M.M.,2LP ,5B1
sub69220-76010
main69220-76010-F0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69220-76010
main69220-76010-F0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),FLARE YELLOW M.M.,5B1
sub69220-76010
main69220-76010-F0i201012-201312
FLARE YELLOW M.M.,5B1
sub69220-76010
main69220-76010-G0i202008-202009
TERRANE KHAKI M.M.,6X4
sub69220-76010
main69220-76010-J0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),BLUE ME.,8U1
sub69220-76010
main69220-76010-J0i201312-201606
BLUE ME.,2LQ ,8U1
sub69220-76010
main69220-76010-J0i201312-201606
SMART ENTRY(DOOR)-WITHOUT,BLUE ME.,2LQ ,8U1
sub69220-76010
main69220-76010-J0i201312-201606
SMART ENTRY(DOOR)-WITHOUT & WITH(PANIC BUTTON),BLUE ME.,2LQ ,8U1
sub69220-76010
main69220-76010-J0i201012-201312
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),BLUE ME.,8U1
sub69220-76010
main69220-76010-J0i201012-201312
BLUE ME.,8U1
sub69220-76010
main69220-76010-J1i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY & PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69220-76010
main69220-76010-J1i201012-201208
WIRELESS DOOR LOCK-W/O(SMART ENTRY) & W(PANIC BUTTON),SILVERY BLUE ME.,8U9
sub69220-76010
main69220-76010-J1i201012-201208
SILVERY BLUE ME.,8U9
sub69220-76010
main69220-76010-J5i201708-202009
HEAT BLUE CONTRAST LAYERI,2QF ,8X1
sub69220-76010
main69220-76010-J6i201508-202009
DEEP BLUE MC.,2PK ,8X5
sub69220-76010
main69220-76010-J7i201606-202008
SPARKLING METEOR ME.,2PX ,8X9
sub69220-76010
main69220-76010-J8i202008-202009
CELESTIAL BLUE GF.,8Y6
sub69220-76010
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-48030i201012-202009
RH
main69242-48030i201012-202009
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-48041i201012-201302
RH
sub69241-48050
main69241-48050i201303-202009
RH
main69242-48041i201012-201302
LH
sub69242-48050
main69242-48050i201303-202009
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i201312-202009
BLACK,TRIM0#,2#,3#,4#,5#,8#
sub69283-30050
main69283-30050-C0i201312-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
sub69283-30050
main69283-30050-C0i201012-201312
BLACK,TRIM0#,2#,3#,4#,8#
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i201312-202009
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
sub69284-30050
main69284-30050-C0i201012-201312
BLACK,TRIM0#,2#,3#,4#,8#
sub69284-30050
main69284-30050-C0i201312-202009
BLACK,TRIM0#,2#,3#,4#,5#,8#
sub69284-30050
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201012-202009
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201012-202009
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-76010i201012-202009
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-76010i201012-202009
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i201012-202009
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33030i201012-202009
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-33010i201012-201410
main69415-60020i201411-202009
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-76010i201012-202009
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-76010i201012-202009
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-76010i201012-202009
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-76010i201012-202009
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015950083
main90159-50083
9018905003
main90189-05003
9321914008
main93219-14008

35 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
