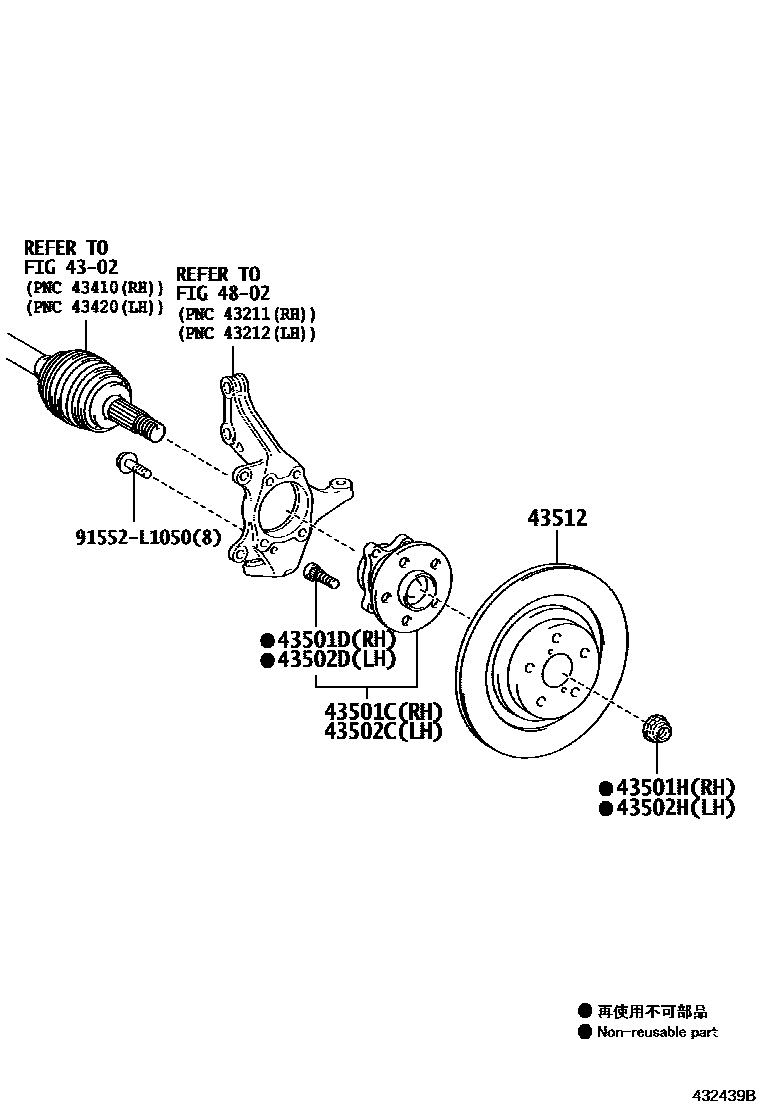

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-47010i201012-201206

main43550-47011i201312-202009

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i201312-202009

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i201012-201312

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-47010i201012-201206

main43550-47011i201312-202009

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i201312-202009

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i201312-202009

43512DISC, FRONT

main43512-47050×2i201012-201312

main43512-47040×2i201012-201312

AUSTRALIA SPEC; BEIJING SPEC; BRUNEI SPEC; CHINA(EXCEPT BEIJING) SPEC; HONG KONG SPEC; INDONESIA SPEC; MALAYSIA SPEC; NEW ZEALAND SPEC; PHILIPPINES SPEC; SINGAPORE SPEC; TAIWAN SPEC; THAILAND SPEC

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

91552L1050

main91552-L1050

10 parts on this diagram · 1 diagram in section
