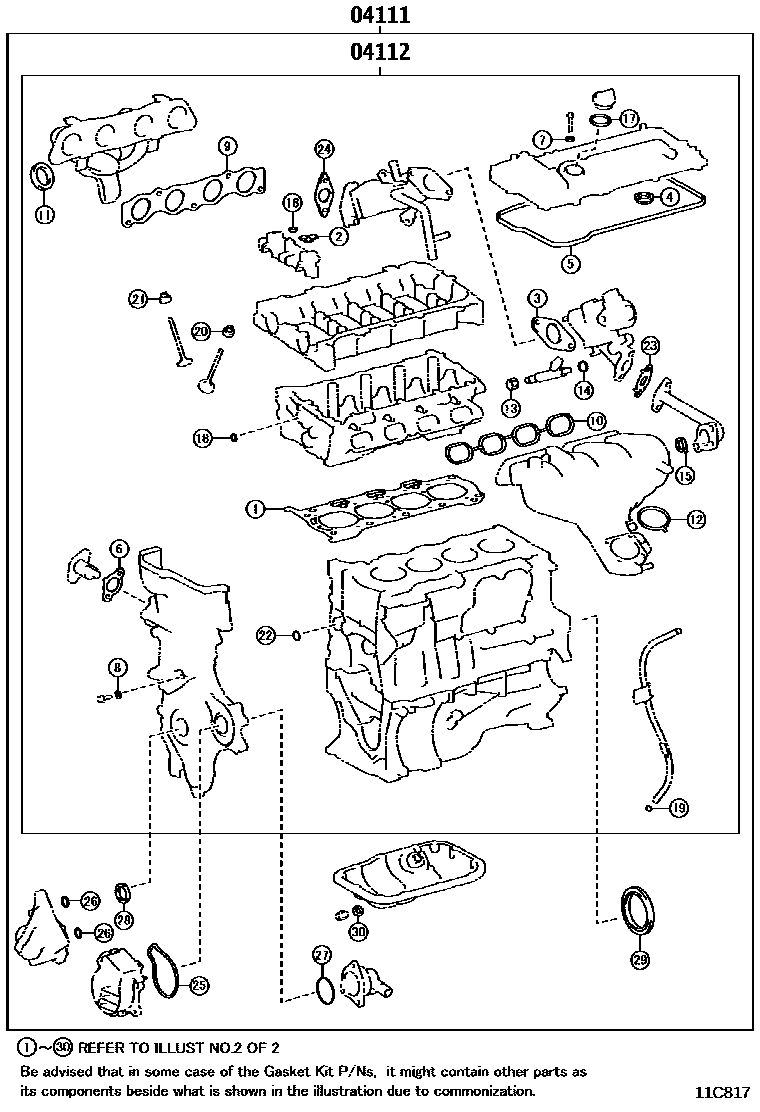

ENGINE OVERHAUL GASKET KIT

0001 1WITH (EGR) 0002 1WITH (EGR) 0003 1WITH OUT(EGR) 0004 1WITH OUT(EGR)

04111GASKET KIT, ENGINE OVERHAUL

main04111-37310i2ZRFXE,5ZRFXE..ZWA10201012-201110

sub04111-37312

main04111-37312i2ZRFXE,5ZRFXE..ZWA10201110-201202

sub04111-37313

main04111-37313i2ZRFXE,5ZRFXE..ZWA10201203-201408

sub04111-37314

main04111-37314i2ZRFXE,5ZRFXE..ZWA10201408-201502

sub04111-37315

main04111-37315i2ZRFXE,5ZRFXE..ZWA10201502-202009

sub04111-37316

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37250i2ZRFXE,5ZRFXE..ZWA10201012-201110

sub04112-37251

main04112-37251i2ZRFXE,5ZRFXE..ZWA10201110-201202

sub04112-37252

main04112-37252i2ZRFXE,5ZRFXE..ZWA10201203-201502

sub04112-37253

main04112-37253i2ZRFXE,5ZRFXE..ZWA10201502-202009

sub04112-37254

2 parts on this diagram · 4 diagrams in section
