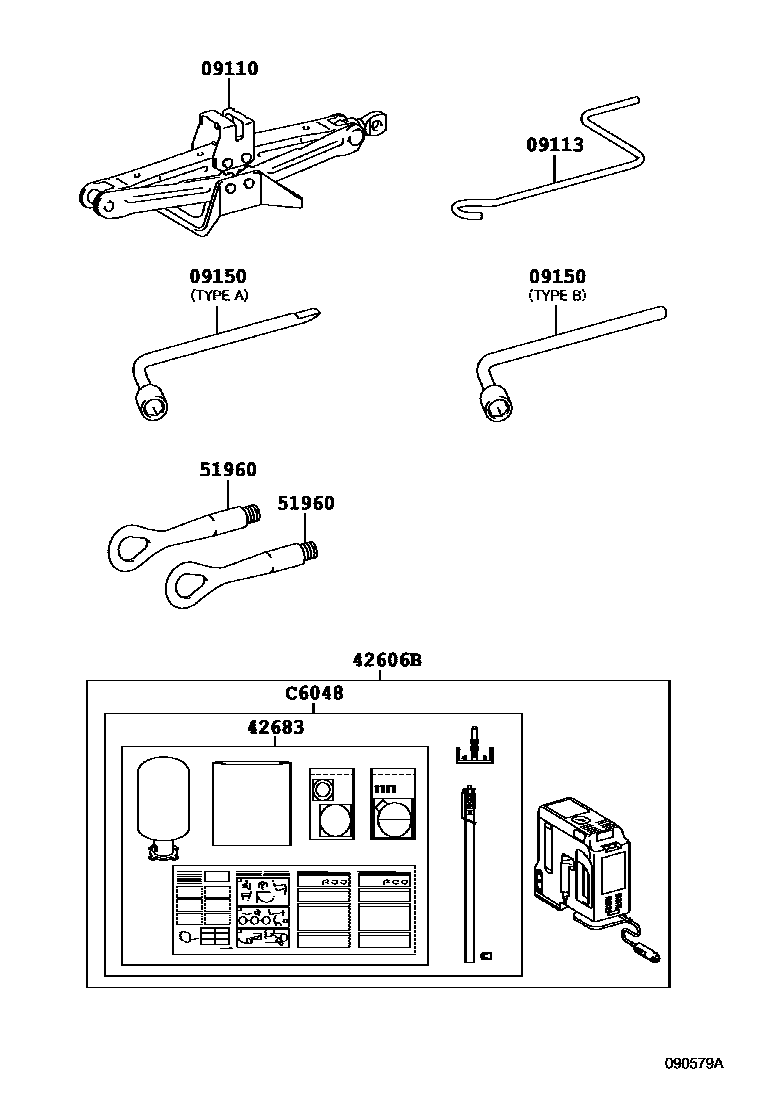

STANDARD TOOL

09110JACK ASSY

main09111-33030iZWA10..E201012-201512

JACK-WITHOUT

sub09111-76010

main09111-76010iZWA10201601-202009

sub09111-76011

09113HANDLE, JACK

main09113-52030iZWA10201012-201111

JACK-WITHOUT

main09113-52031iZWA10201112-201312

JACK-WITHOUT

main09113-52031iZWA10201312-202009

09150WRENCH, HUB NUT BOX

main09150-35070iZWA10..E201012-201208

TYPE A:REFER ILLUST.

main09150-48010iZWA10..B201012-201208

TYPE B:REFER ILLUST.

main09150-76010iZWA10..E201208-202009

TYPE A:REFER ILLUST.

main09150-76020iZWA10..B201208-202009

TYPE B:REFER ILLUST.

42606BREPAIR KIT, TUBELESS TIRE

main42606-50020iZWA10201012-201205

sub42606-50021

main42606-50021iZWA10201206-201502

sub42606-50022

main42606-50022iZWA10201502-202009

sub42606-50023

42683SEAL, TIRE REPAIR

main42683-50020iZWA10201012-201206

sub42683-50021

main42683-50021iZWA10201206-201502

sub42683-50022

main42683-50022iZWA10201502-202009

51960HOOK ASSY, FRONT

main51961-50040iZWA10201012-201205

sub51961-50042

main51961-50042iZWA10201205-202009

C6048REPAIR SET, TIRE

mainC604850020iZWA10201012-201206

subC6048-50021

mainC604850021iZWA10201206-201502

subC6048-50022

mainC604850022iZWA10201502-202009

7 parts on this diagram · 1 diagram in section
