HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

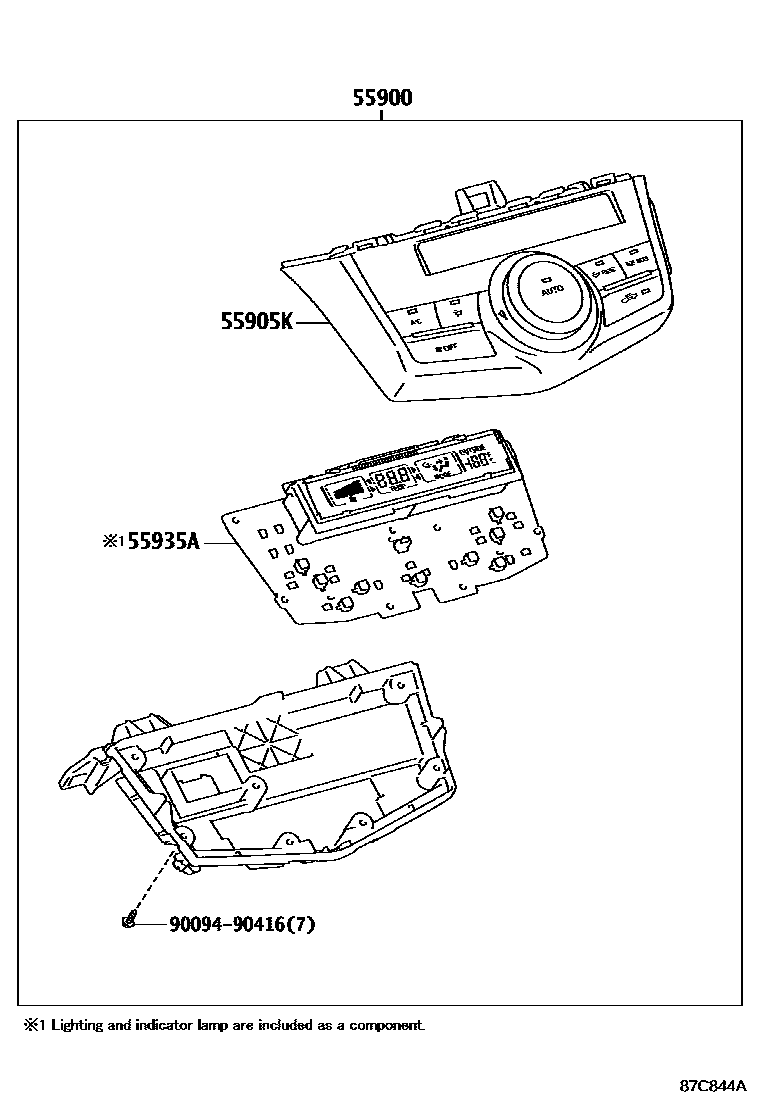

55900CONTROL ASSY, AIR CONDITIONER

main55900-47080iZVW40..LHD201203-201308

main55900-47090iZVW40..RHD201203-201308

main55900-47160iZVW40..LHD201308-201411

main55900-47161iZVW40..LHD201411-201808

main55900-47170iZVW40..RHD201308-201411

main55900-47171iZVW40..RHD201411-201808

main55900-47280iZVW40..RHD201808-202109

main55900-47311supersedes 55900-47270iZVW40..LHD202008-202109

main55900-47310iZVW40..LHD201712-201807

TAIWAN SPEC&EU HIGH GRADE; TAIWAN SPEC&EU MID-HIGH GRADE

55905KKNOB, HEATER CONTROL, NO.4

main55905-47140iZVW40..LHD201203-201411

main55905-47150iZVW40..RHD201203-201411

main55905-47190iZVW40..LHD201411-202008

main55905-47200iZVW40..RHD201411-202109

main55905-47220iZVW40..LHD202008-202109

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-47060iZVW40..LHD201203-201308

main55935-47070iZVW40..RHD201203-201308

main55935-47090iZVW40..LHD201308-201411

main55935-47091iZVW40..LHD201411-201808

main55935-47100iZVW40..RHD201308-201411

main55935-47101iZVW40..RHD201411-201808

main55935-47120iZVW40..LHD201808-202109

main55935-47130iZVW40..RHD201808-202109

9009490416

main90094-90416

4 parts on this diagram · 6 diagrams in section
