METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1METER, W(MULTI INFORMATION DI0004 1METER,W/O(MULTI INFORMATION D0005 1METER 0006 1HEAD UP DISPLAY 0007 1HEAD UP DISPLAY

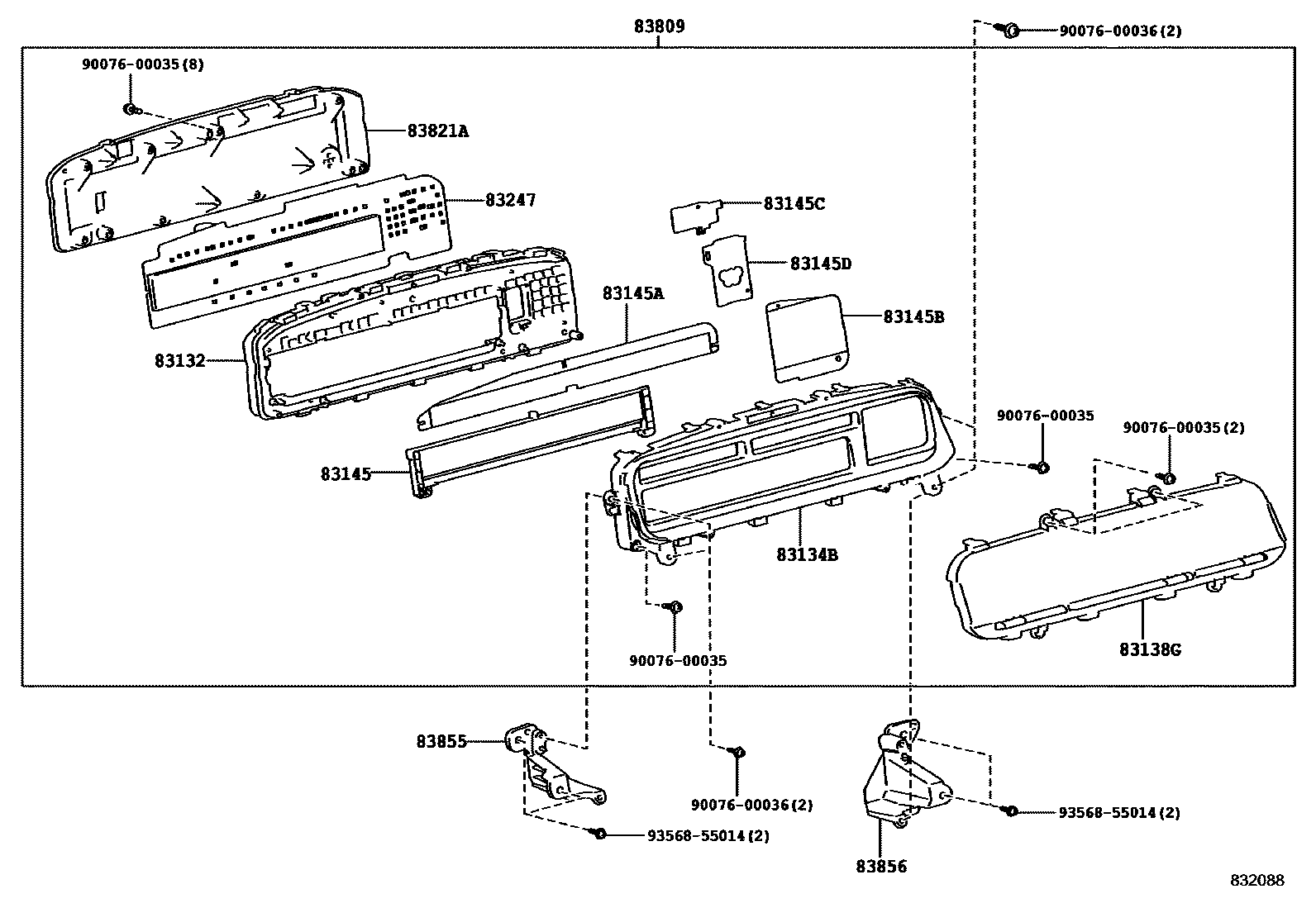

83132CASE, COMBINATION METER

main83841-47830iZVW40..LHD201203-201411

main83841-47850iZVW40..RHD201203-201411

83134BCOVER, COMBINATION METER, NO.2

main83822-47580iZVW40..RHD201203-201411

main83822-47590iZVW40..LHD201203-201411

main83822-47F30iZVW40..LHD201411-202109

main83822-47M50iZVW40..RHD201411-202109

83138GGLASS, COMBINATION METER

main83852-47580iZVW40201203-201411

main83852-47M50iZVW40201411-202109

83145LENS, METER, NO.1

main83831-47580iZVW40..RHD201203-201411

main83831-47590iZVW40..LHD201203-201411

main83831-47M50iZVW40201411-202109

83145ALENS, METER, NO.2

main83832-47580iZVW40..RHD201203-201411

main83832-47600iZVW40..LHD201203-201411

83145BLENS, METER, NO.3

main83833-47840iZVW40..LHD201203-201405

main83833-47842iZVW40..LHD201405-201411

main83833-47850iZVW40..RHD201203-201405

main83833-47852iZVW40..RHD201405-201411

83145CLENS, METER, NO.4

main83834-47830iZVW40201203-201411

83145DLENS, METER, NO.5

main83835-47830iZVW40201203-201411

83247PLATE, METER CIRCUIT

main83861-47840iZVW40..LHD201203-201308

main83861-47841iZVW40..LHD201308-201405

main83861-47842iZVW40..LHD201405-201411

main83861-47850iZVW40..RHD201203-201308

main83861-47851iZVW40..RHD201308-201405

main83861-47852iZVW40..RHD201405-201411

83809METER SUB-ASSY, COMBINATION

main83809-47050iZVW40..LHD201203-201307

sub83809-47051

main83809-47051iZVW40..LHD201308-201405

main83809-47052iZVW40..LHD201405-201411

main83809-47060iZVW40..RHD201203-201307

sub83809-47061

main83809-47061iZVW40..RHD201308-201405

main83809-47062iZVW40..RHD201405-201411

main83809-47140iZVW40..LHD201411-201605

main83809-47141iZVW40..LHD201605-201712

main83809-47142iZVW40..LHD201712-202008

YAZAKI

main83809-47150iZVW40..RHD201411-201605

main83809-47151iZVW40..RHD201605-201712

main83809-47152iZVW40..RHD201712-202008

YAZAKI

main83809-47153iZVW40..RHD202008-202109

YAZAKI

main83809-47304iZVW40..LHD202008-202109

YAZAKI

83821ACOVER, COMBINATION METER, NO.1

main83821-47840iZVW40..LHD201203-201411

main83821-47850iZVW40..RHD201203-201411

main83821-47F30iZVW40..LHD201712-202008

TAIWAN SPEC&EU HIGH GRADE&BACK MONITOR-WITHOUT

main83821-47F30iZVW40..LHD201712-202008

TAIWAN SPEC&EU MID-HIGH GRADE&BACK MONITOR-WITHOUT

main83821-47F30iZVW40..LHD202008-202109

main83821-47F50iZVW40..LHD201411-201712

main83821-47F60iZVW40..RHD201411-201712

main83821-47M50iZVW40..RHD201712-202109

83855BRACKET, COMBINATION METER, NO.1

main83855-47580iZVW40..RHD201203-202109

main83855-47590iZVW40..LHD201203-202109

83856BRACKET, COMBINATION METER, NO.2

main83856-47580iZVW40..RHD201203-202109

main83856-47590iZVW40..LHD201203-202109

9007600035

main90076-00035

9007600036

main90076-00036

9356855014

main93568-55014

16 parts on this diagram · 7 diagrams in section
