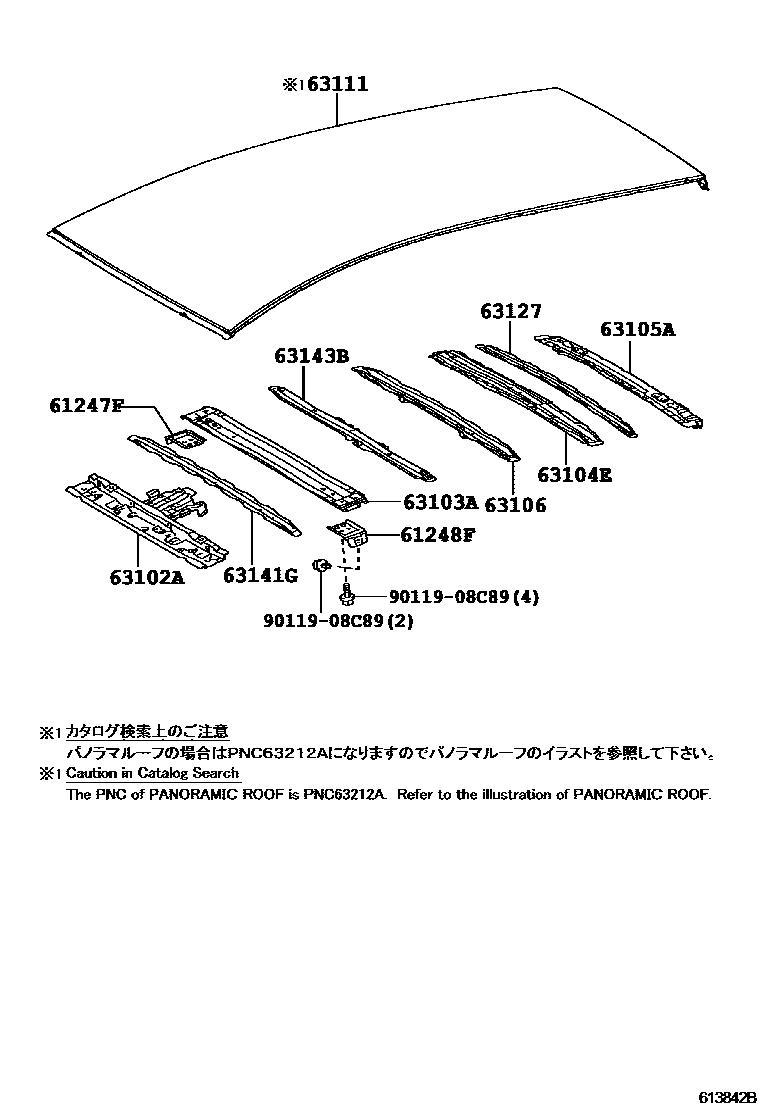

ROOF PANEL & BACK WINDOW GLASS
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63111PANEL, ROOF
REFER TO ILLUST.
63127REINFORCEMENT, ROOF PANEL, NO.5
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
9011908C89
main90119-08C89
12 parts on this diagram · 2 diagrams in section
