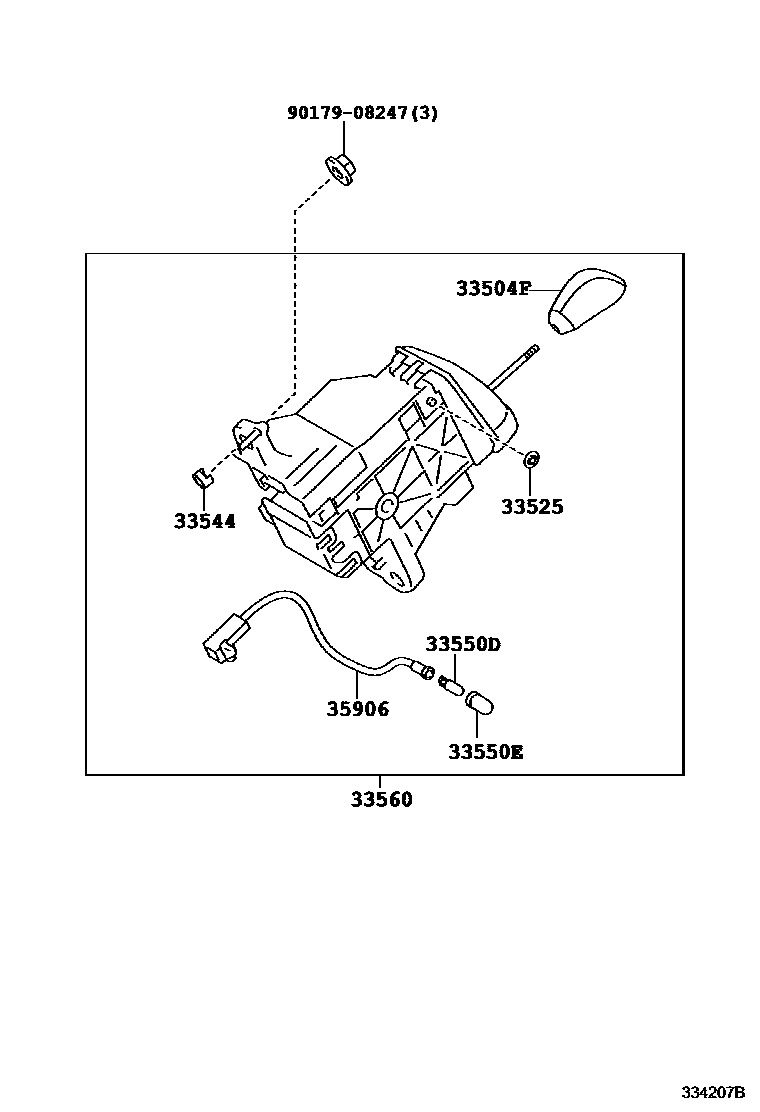

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-49015iZVW40..RHD201203-201411

sub33504-49045

main33504-49025iZVW40..LHD201203-201411

main33504-49045-B0iZVW40..RHD201411-202109

SILVER METALLIC,TRIM1#,2#

main33504-49055-B0iZVW40..LHD201411-202109

SILVER METALLIC,TRIM1#,2#

33525SUPPORT, SHIFT LEVER

main33525-42010iZVW40201203-202109

33544INSERT, SHIFT LEVER, NO.1

main33544-33010iZVW40201203-202109

33550DBULB, POSITION INDICATOR LAMP

main35955-20010iZVW40201203-202109

12V 2.0W

33550ECAP, POSITION INDICATOR LAMP

main35956-75010iZVW40201203-202109

33560UNIT ASSY, SHIFT LOCK CONTROL

main33550-47060iZVW40..RHD201203-201411

sub33550-47061

main33550-47070iZVW40..LHD201203-201411

sub33550-47071

main33550-47110-B0iZVW40..RHD201411-201412

SILVER METALLIC,TRIM1#,2#

sub33550-47111

main33550-47111-B0iZVW40..RHD201412-201508

SILVER METALLIC,TRIM1#,2#

sub33550-47112

main33550-47112-B0iZVW40..RHD201509-202109

SILVER METALLIC,TRIM1#,2#

main33550-47120-B0iZVW40..LHD201411-201412

SILVER METALLIC,TRIM1#,2#

sub33550-47121

main33550-47121-B0iZVW40..LHD201412-201508

SILVER METALLIC,TRIM1#,2#

sub33550-47122

main33550-47122-B0iZVW40..LHD201509-202109

SILVER METALLIC,TRIM1#,2#

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20170iZVW40201203-201508

main35906-47030iZVW40201509-202109

9017908247

main90179-08247

8 parts on this diagram · 2 diagrams in section
