WATER PUMP

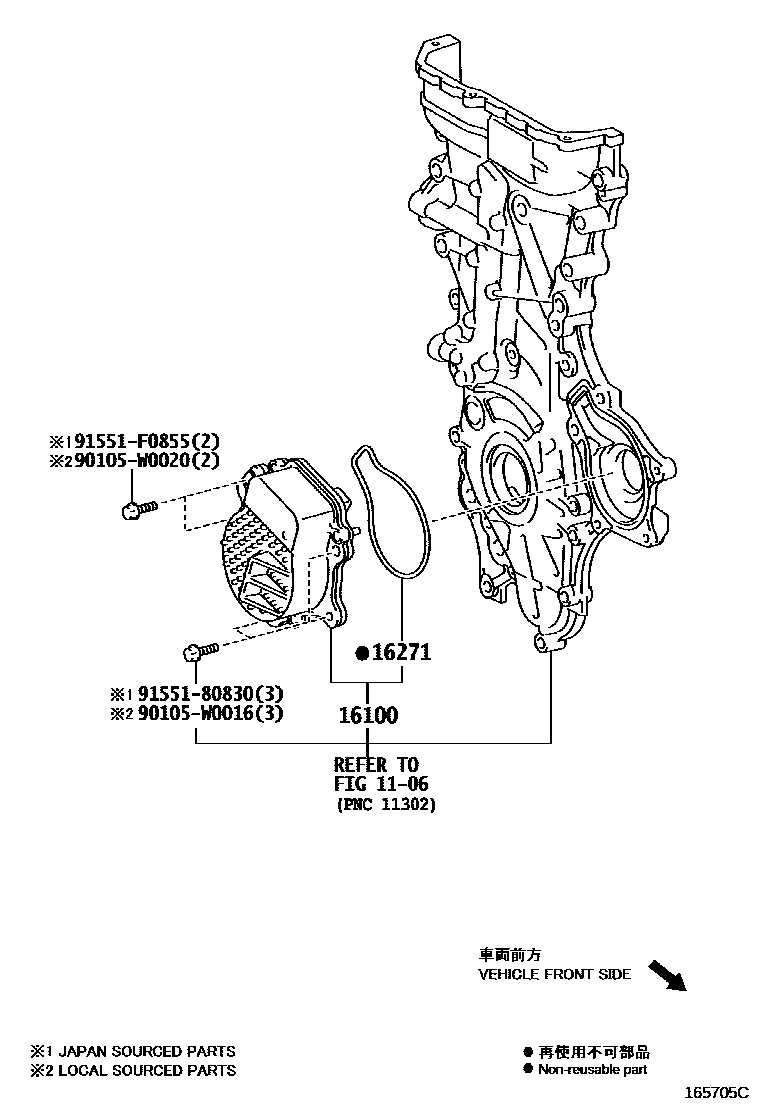

Parts diagram

1106

16100PUMP ASSY, ENGINE WATER

main161A0-29015i201204-202109

main161A0-39015i201203-201204

16271GASKET, WATER PUMP

main16271-37020i201203-202109

90105W0016

main90105-W0016

90105W0020

main90105-W0020

9155180830

main91551-80830

91551F0855

main91551-F0855

7 parts on this diagram · 1 diagram in section
