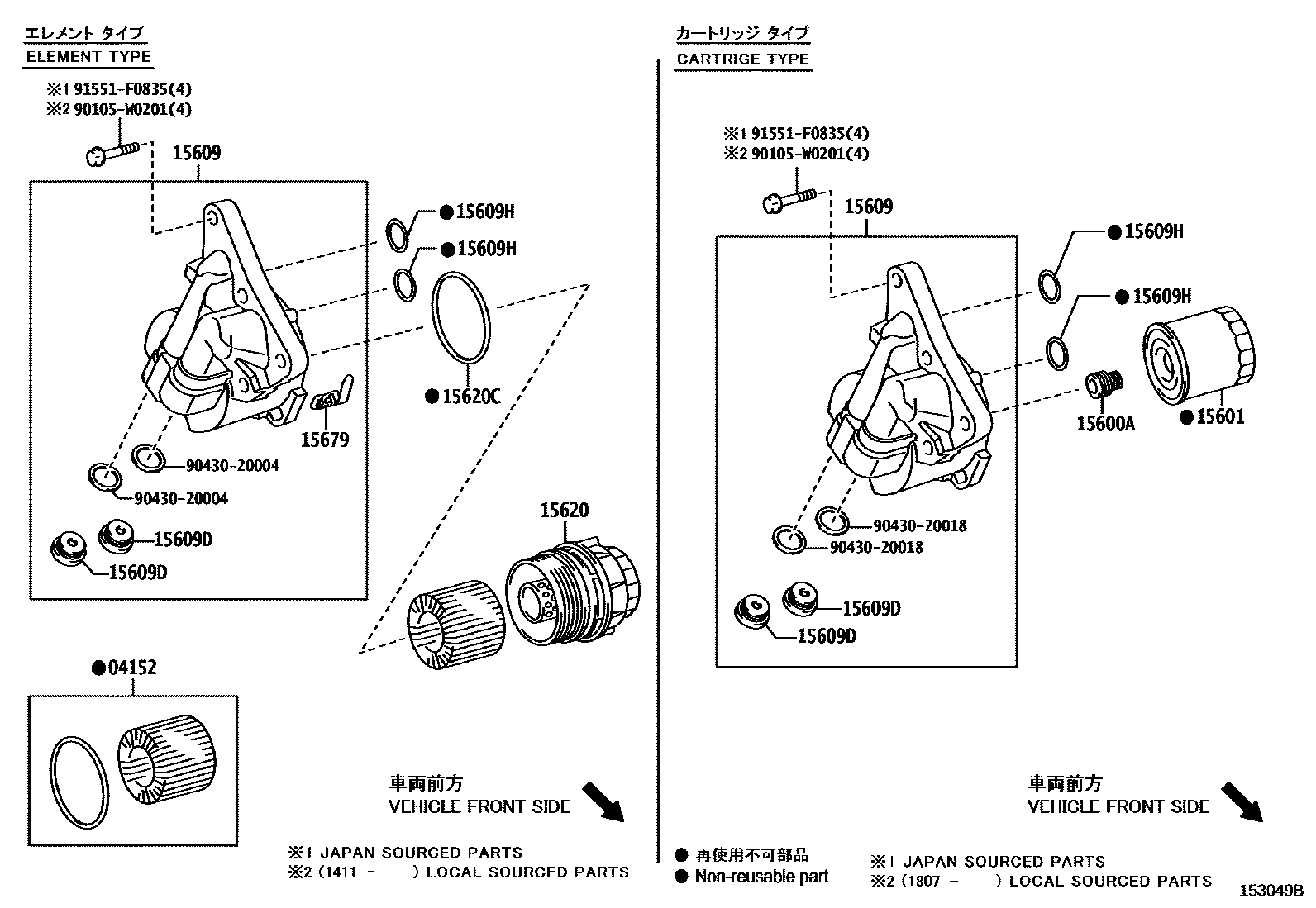

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010

15600AUNION(FOR OIL FILTER)

main90904-04006i2ZRFXE..ZVW40201709-202109

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i2ZRFXE..ZVW40201709-202109

CARTRIGE TYPE

sub90915-10009

main90915-CA003i2ZRFXE..ZVW40201807-202008

ENGINE-2ZR-FXE(MADE IN UK),(L),MADE IN EUROPE

main90915-TA001i2ZRFXE..ZVW40201807-202008

ENGINE-2ZR-FXE(MADE IN UK),(L),MADE IN TMMNA

15609BRACKET SUB-ASSY, OIL FILTER

main15609-0T030supersedes 15609-37060i2ZRFXE..ZVW40201204-201411

ENGINE-2ZRFXE(MADE IN UK),(L),ELEMENT TYPE

main15609-0T080i2ZRFXE..ZVW40201807-202008

ENGINE-2ZR-FXE(MADE IN UK),(L),CARTRIGE TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

15609HRING, O(FOR OIL FILTER BRACKET)

15620CAP ASSY, OIL FILTER

main15620-37010

main90301-69011

15620CGASKET(FOR OIL FILTER CAP)

15679CLIP, OIL FILTER BRACKET

main15679-37010

main15679-37011

90105W0201

main90105-W0201

9043020004

main90430-20004

9043020018

main90430-20018

91551F0835

main91551-F0835

13 parts on this diagram · 1 diagram in section
