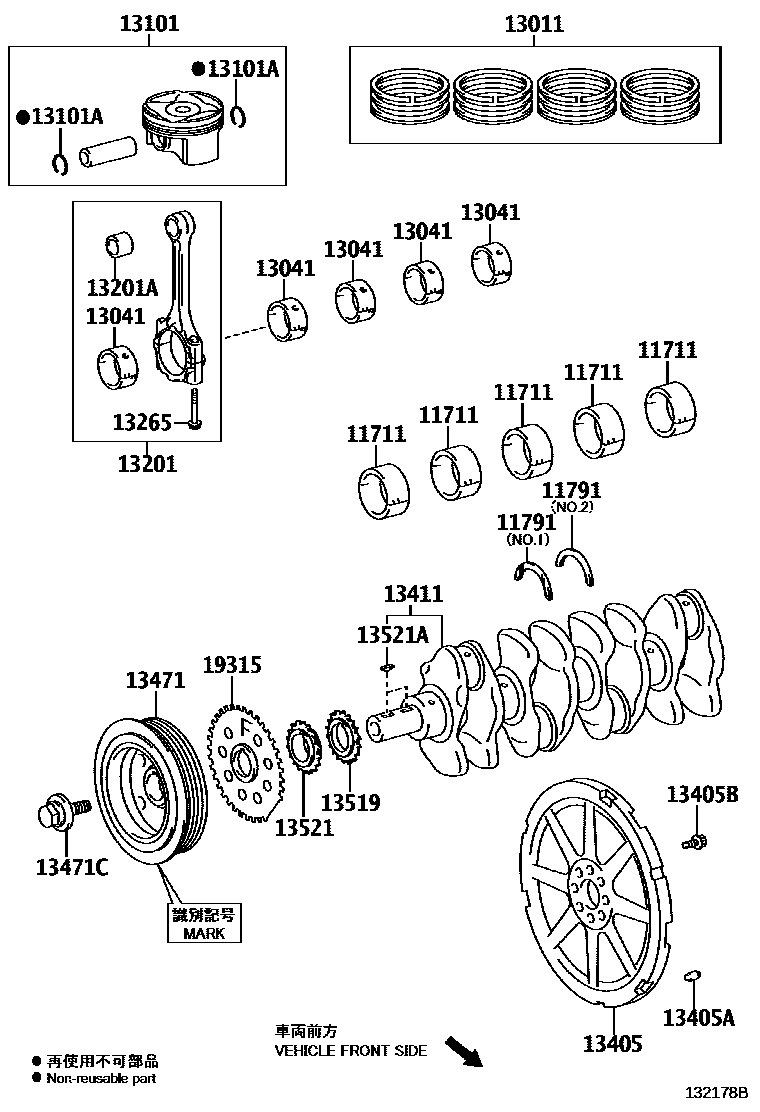

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,*119:REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK2,*119:REFER R/M
MARK3,REFER REPAIR MANUAL
MARK3,*119:REFER R/M
MARK4,*119:REFER R/M
MARK4,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,NO.1
STD
STD,ENGINE-2ZR-FXE(MADE IN UK),NO.2
STD
STD,NO.2
13011RING SET, PISTON
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK1,*119:REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,*119:REFER R/M
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK3,*119:REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD
STD
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
(L)
(J)
13201ABUSH(FOR CONNECTING ROD SMALL END)
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13471PULLEY, CRANKSHAFT
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13519GEAR, OIL PUMP DRIVE
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
