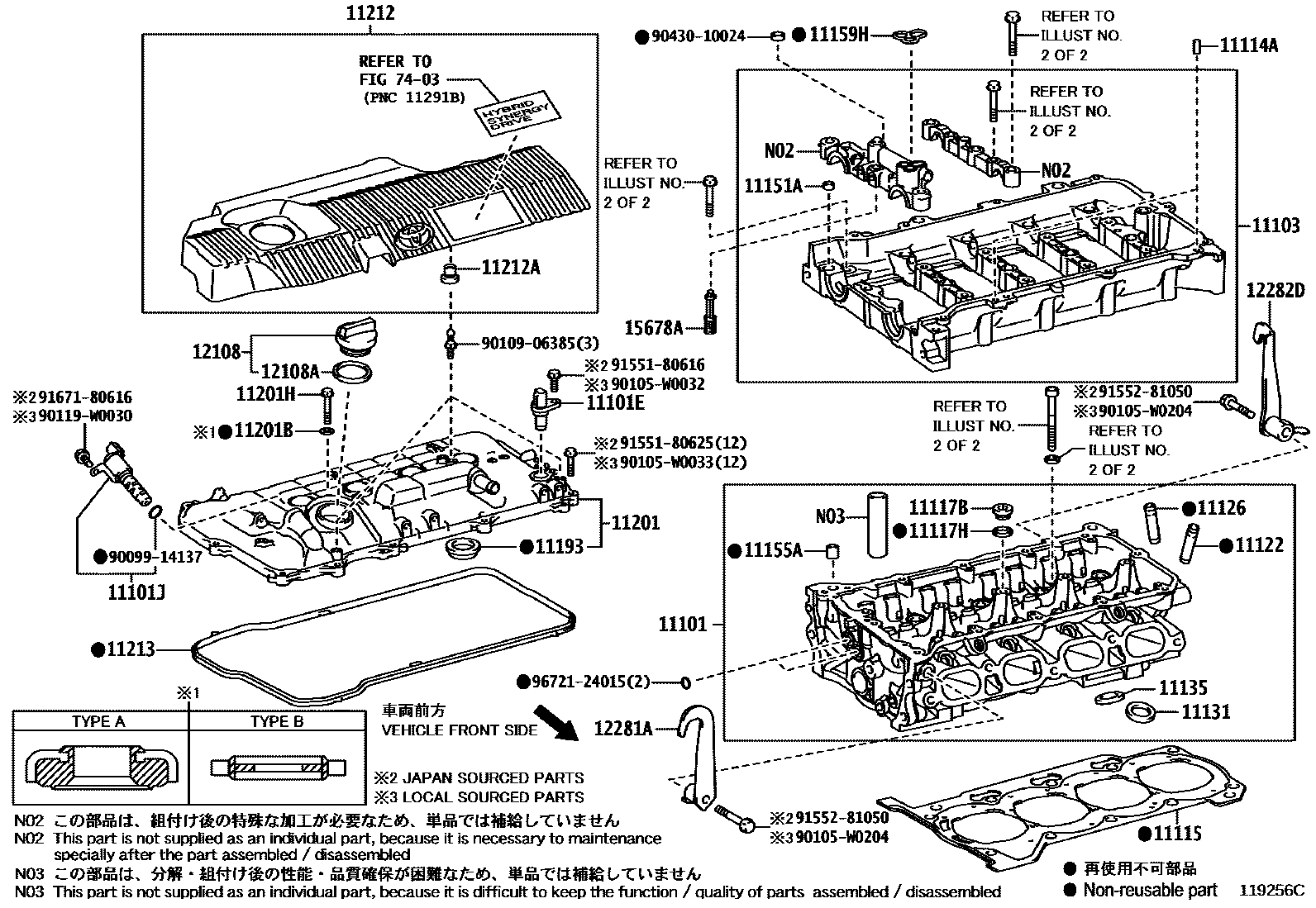

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
(L)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*119
11103HOUSING SUB-ASSY, CAMSHAFT
(J)
(L)
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6,*119
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
O/S 0.05,ENGINE-2ZR-FXE(MADE IN UK)
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11131SEAT, INTAKE VALVE
STD
O/S 0.03,ENGINE-2ZRFXE(MADE IN UK)
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
O/S 0.03
O/S 0.03,ENGINE-2ZRFXE(MADE IN UK)
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
*119
11201COVER SUB-ASSY, CYLINDER HEAD
*119
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
11201HBOLT(FOR CYLINDER HEAD COVER)
*119
11212COVER, CYLINDER HEAD, NO.2
11212ACUSHION, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
W/O(PAINTED)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
W/O(PAINTED)
NO PAINTED
PAINTED=WHITE
15678AFILTER, OIL CONTROL VALVE
7403
9009914137
main90099-14137
90105W0032
main90105-W0032
90105W0033
main90105-W0033
90105W0204
main90105-W0204
9010906385
main90109-06385
90119W0030
main90119-W0030
9043010024
main90430-10024
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
40 parts on this diagram · 2 diagrams in section
