Toyota 671240 — RADIO RECEIVER & AMPLIFIER & CONDENSER

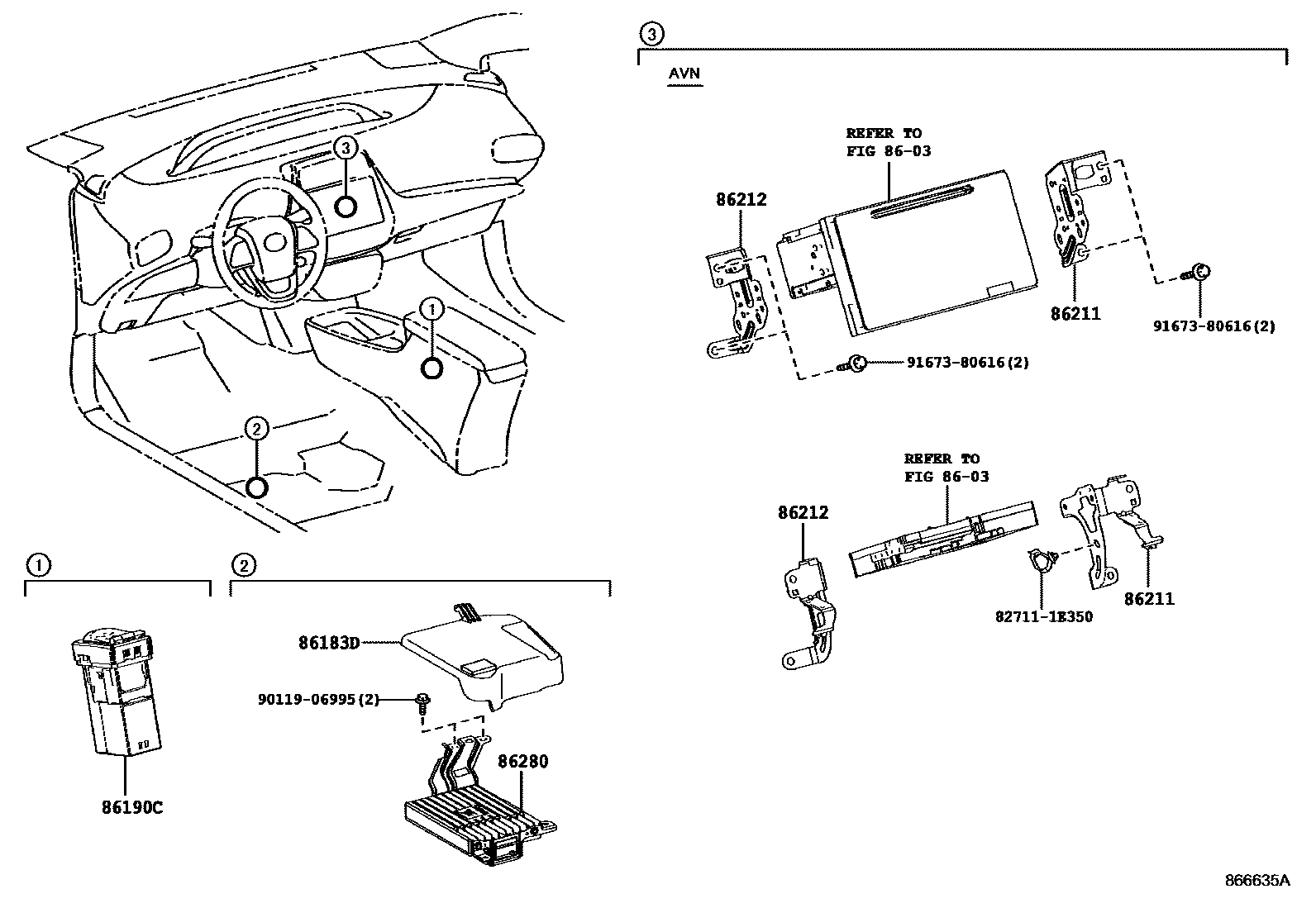

Parts diagram

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86280AMPLIFIER ASSY, STEREO COMPONENT

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9011906995

9167380616

9 parts on this diagram · 5 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 671240

This section contains 13 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 671240. Key components include: CONDENSER, FILTER, NOISE, NAVIGATION & FRONT MONITOR DISPLAY, CONNECTOR, ANTENNA MALE, COVER, AUDIO AMPLIFIER.
