WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR & ROOF 0008 1FLOOR & ROOF 0009 1HIGH VOLTAGE CABLE 0010 1HIGH VOLTAGE CABLE 0011 1SEAT 0012 1CLAMP & BRACKET 0013 1CONNECTOR 1/3 0014 1CONNECTOR 2/3 0015 1CONNECTOR 3/3

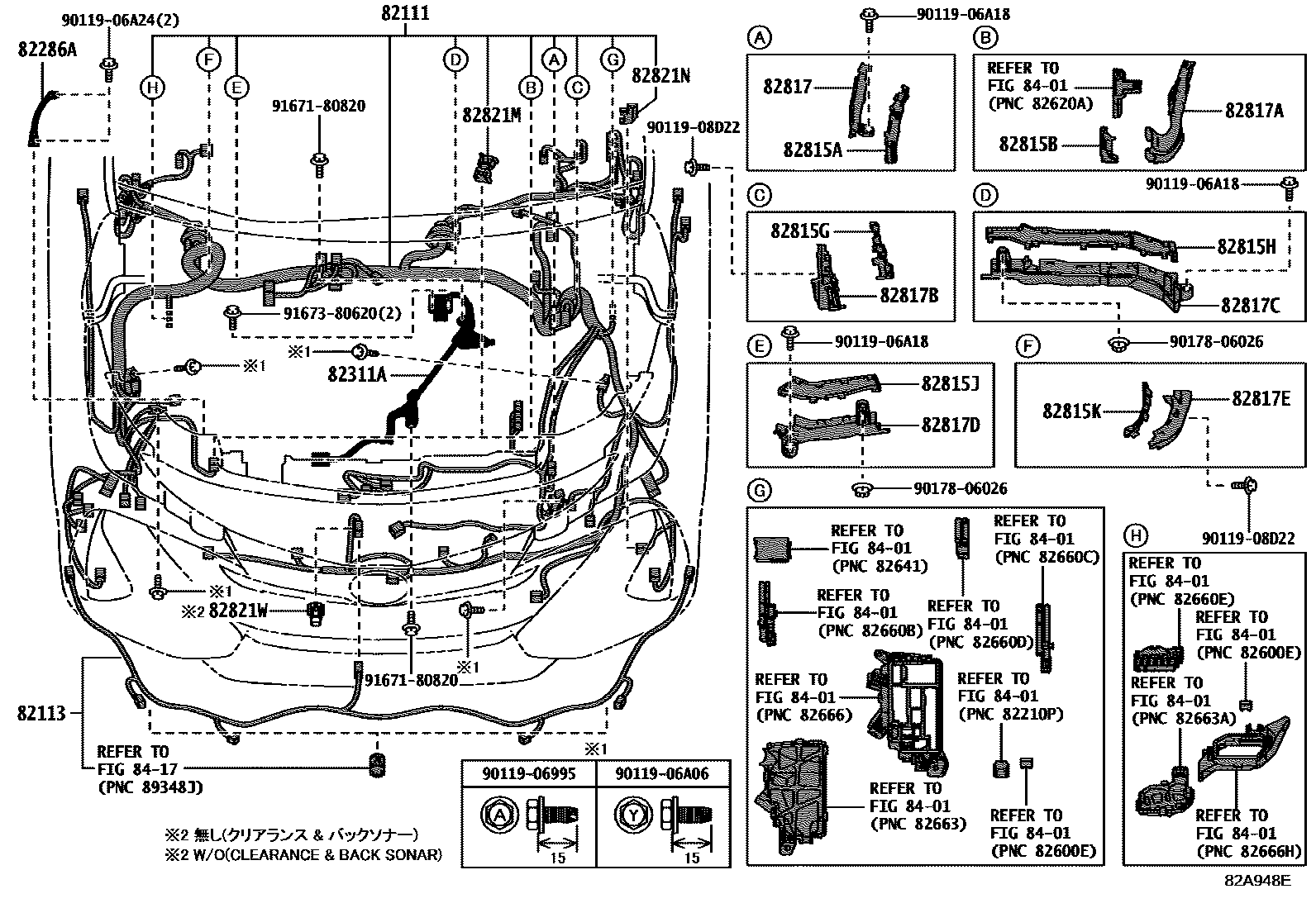

82111WIRE, ENGINE ROOM MAIN

main82111-47P60iZVW52..LHD201609-201904

main82111-47Q30iZVW52..RHD201609-201904

main82111-4E350iZVW52..LHD201905-202007

main82111-4E360iZVW52..RHD201905-202007

main82111-4E660iZVW52..LHD202007

main82111-4E670iZVW52..RHD202007

82113WIRE, ENGINE ROOM, NO.3

main82113-47410

main82113-47460

main82113-47500

main82113-47510

82286AWIRE, EARTH, NO.2

main82286-47010iZVW52201609-201904

82311AWIRE, AIR CONDITIONER

main821H2-47010iZVW52201609-201904

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-47880iZVW52201609-201904

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-47C20iZVW52201609-201904

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-47C80iZVW52..LHD201609-201904

main82815-47C90iZVW52..RHD201609-201904

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-47D00iZVW52..RHD201609-201904

main82815-47D10iZVW52..LHD201609-201904

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-47D20iZVW52..LHD201609-201904

main82815-47D30iZVW52..RHD201609-201904

82815KCOVER, WIRING HARNESS PROTECTOR, NO.8

main82815-47D40iZVW52..RHD201609-201904

main82815-47D60iZVW52..LHD201609-201904

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-47N30iZVW52201609-201904

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-47N40iZVW52201609-201904

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-47N50iZVW52..LHD201609-201904

main82817-47N60iZVW52..RHD201609-201904

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-47N70iZVW52..RHD201609-201904

main82817-47N80iZVW52..LHD201609-201904

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-47N90iZVW52..LHD201609-201904

main82817-47P00iZVW52..RHD201609-201904

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZVW52..RHD201609-201904

main82817-47P30iZVW52..LHD201609-201904

82821MCOVER, CONNECTOR

main82821-30650iZVW52201609-201904

82821NCOVER, CONNECTOR

main82821-12600iZVW52201609-201904

82821WCOVER, CONNECTOR

main82821-47410iZVW52201905

8401

8417

9011906995

main90119-06995

9011906A06

main90119-06A06

9011906A18

main90119-06A18

9011906A24

main90119-06A24

9011908D22

main90119-08D22

9017806026

main90178-06026

9167180820

main91671-80820

9167380620

main91673-80620

29 parts on this diagram · 15 diagrams in section
