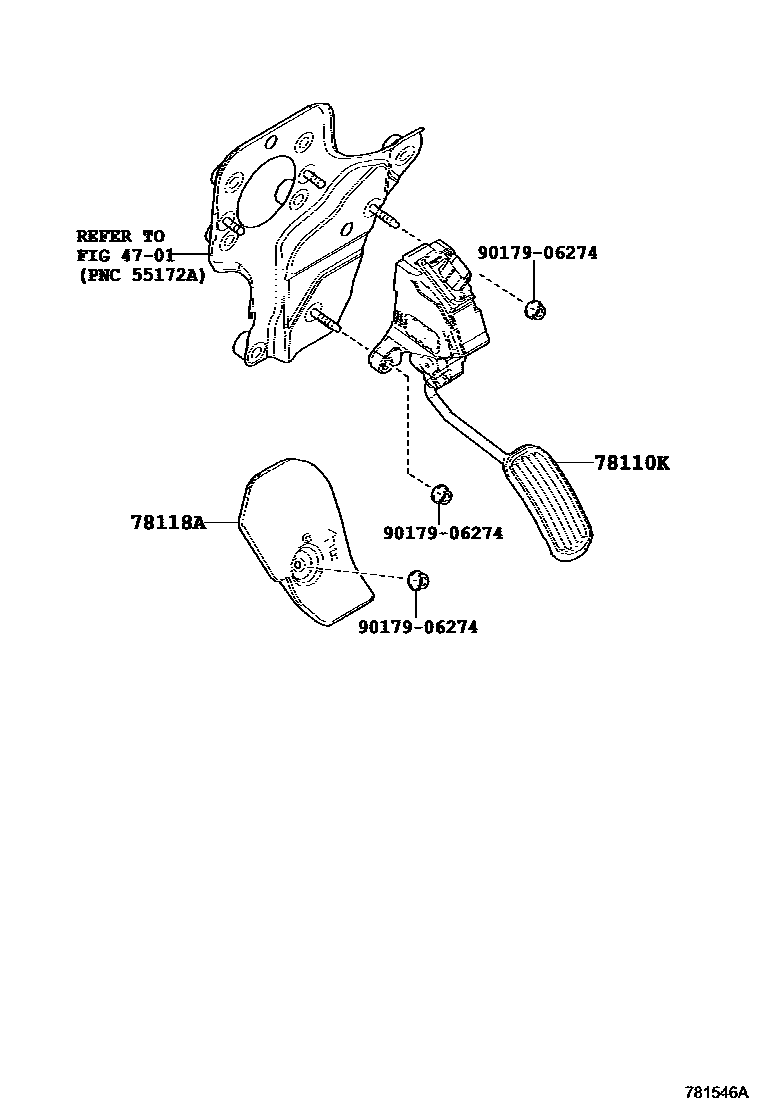

ACCELERATOR LINK

0001 1 0002 1

4701

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-02190iZVW52..RHD201905-202009

sub78110-02191

main78110-02191iZVW52..RHD202010

main78110-02210iZVW52..LHD201905-202009

sub78110-02211

main78110-02211iZVW52..LHD202010

main78110-0W100iZVW52..LHD201609-201904

main78110-0W110iZVW52..RHD201609-201904

78118ASTOPPER, ACCELERATOR PEDAL

main78118-47030iZVW52..LHD201609-201904

main78118-47040iZVW52..RHD201609-201904

9017906274

main90179-06274

4 parts on this diagram · 2 diagrams in section
