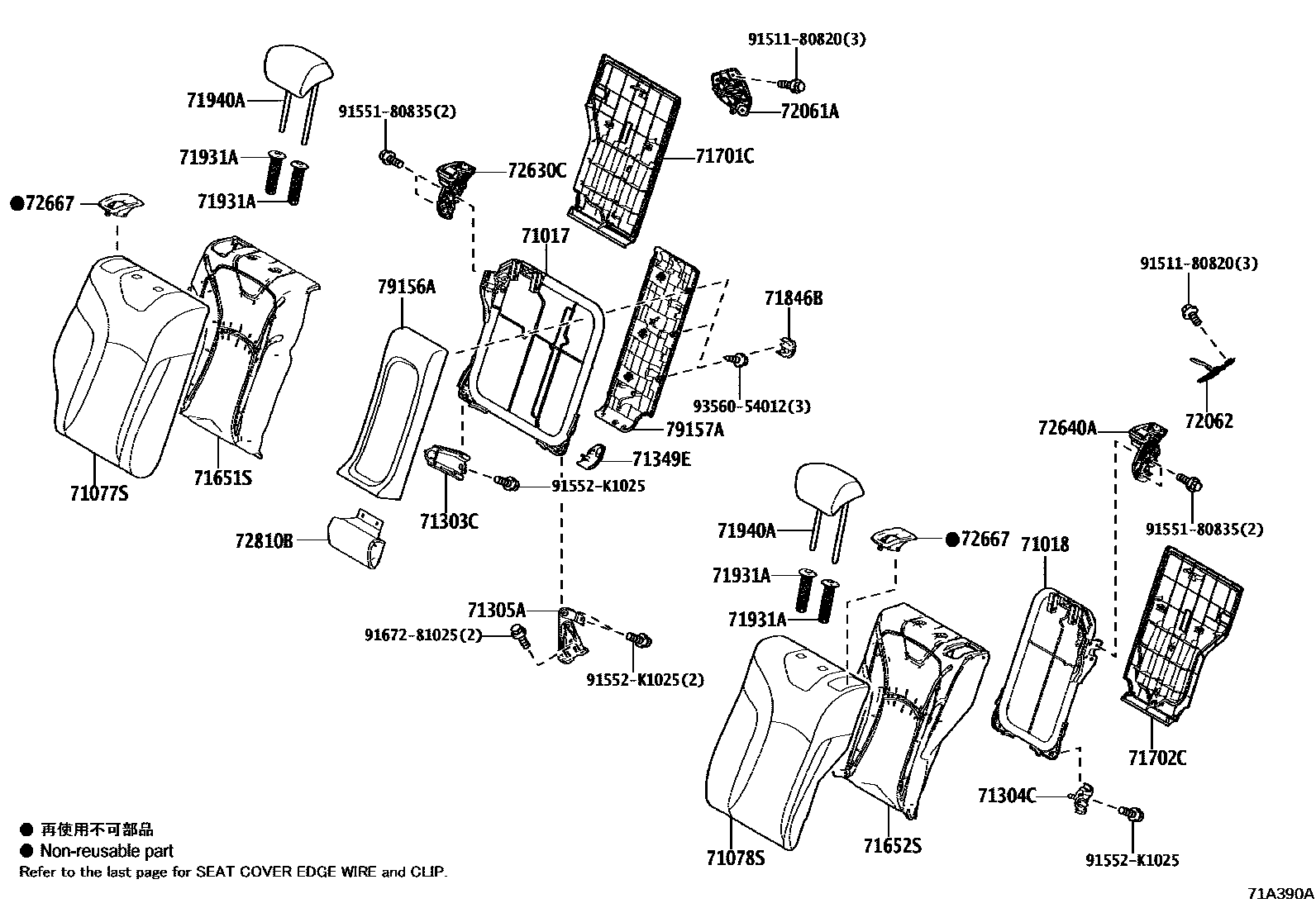

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47160i201905

main71017-47230i201609-201904

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47100i201905

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47690-B4supersedes 71077-47830-B5i201609-201610

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY/TURQUOISE,TRIM1#

main71077-47690-B5supersedes 71077-47830-B5i201610-201904

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY/TURQUOISE,TRIM1#

main71077-47690-C4supersedes 71077-47830-C8i201609-201610

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#

main71077-47690-C5supersedes 71077-47830-C8i201610-201904

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#

main71077-47850-26i202007

FRONT SEAT-*DRS(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71077-47850-B8i202007

FRONT SEAT-*DRS(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#

main71077-47A00-B1i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71077-47A00-C4i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47480-B4supersedes 71078-47550-B3i201609-201610

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY/TURQUOISE,TRIM1#

main71078-47480-B5supersedes 71078-47550-B3i201610-201904

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY/TURQUOISE,TRIM1#

main71078-47480-C4supersedes 71078-47550-C8i201609-201610

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#

main71078-47480-C5supersedes 71078-47550-C8i201610-201904

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#

main71078-47560-B4i202007

FRONT SEAT-*DRS(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#

main71078-47560-C4i201905

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71078-47610-B1i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71078-47610-C4i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47030i201905

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47030i201609-201904

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040i201905

main71305-47050i201609-201904

71349ECOVER, REAR SEATBACK HINGE

main71349-47040-C0i201609-201904

BLACK,TRIM1#,2#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47190i201905

main71651-47230i201609-201904

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47110i201905

main71652-47160i201609-201904

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-47020i201905

main71701-47030i201609-201904

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-47020i201905

71846BCAP, REAR SEATBACK BOARD, NO.1

main71846-47010-C0×3i201609-201904

BLACK,TRIM1#,2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-B0×2i201905

W(LOCK),COOL GRAY,TRIM10

main71930-47050-B9×2i201905

W(LOCK),GRAY,TRIM10

main71930-47050-C0×2i201609-201610

W(LOCK),BLACK,TRIM2#

main71930-47050-C5×2i201610-201904

W(LOCK),BLACK,TRIM2#

main71931-47030-B0×2i201609-201904

W/O(LOCK),COOL GRAY,TRIM1#

main71931-47030-C0×2i201609-201610

W/O(LOCK),BLACK,TRIM2#

main71931-47030-C4×2i201610-201904

W/O(LOCK),BLACK,TRIM2#

main71931-47030-P0×2i201905

W/O(LOCK),GRAY,TRIM10

71940AHEADREST ASSY, REAR SEAT

main71940-47540-B0×2supersedes 71940-47510-B5i201609-201711

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#

main71940-47540-C3×2supersedes 71940-47510-C3i201609-201711

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71940-47650-B0×2supersedes 71940-47510-B5i201711-201903

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#

main71940-47650-B1×2i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#

main71940-47650-B2×2supersedes 71940-47510-C3i201903-201904

SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM2#

main71940-47650-B3×2supersedes 71940-47510-B5i201903-201904

SEAT COVER MATERIAL-NATURAL LEATHER,COOL GRAY,TRIM1#

main71940-47650-B4×2i202007

FRONT SEAT-*DRS(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#

main71940-47650-C0×2i202106

TAIWAN SPEC&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71940-47650-C1×2i202007

FRONT SEAT-*DRS(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#; TAIWAN SPEC&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK/DK.GRAY,TRIM2#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-47010i201609-201904

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-47010i201609-201904

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-B5i201905

GRAY,TRIM1#

main72630-47050-C0i201609-201612

BLACK,TRIM1#,2#

main72630-47050-C2i201612-201904

BLACK,TRIM1#,2#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-B5i201905

GRAY,TRIM1#

main72640-47050-C0i201609-201612

BLACK,TRIM1#,2#

main72640-47050-C2i201612-201904

BLACK,TRIM1#,2#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010×2i201905-202007

main72667-47010-B5×2i202007

GRAY,TRIM1#

main72667-47010-C0×2i201609-201612

BLACK,TRIM1#,2#

main72667-47010-C1×2i201612-201904

BLACK,TRIM1#,2#

72810BARMREST ASSY, NO.1 SEAT

main72810-47031-C0supersedes 72810-47011-C0i201609-201904

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,2#

79156APLATE, NO.1 SEAT SIDE, NO.1

main79156-47010-C0i201609-201904

BLACK,TRIM1#,2#

79157APLATE, NO.1 SEAT SIDE, NO.2

main79157-47010-C0i201609-201904

BLACK,TRIM1#,2#

9151180820

main91511-80820

9155180835

main91551-80835

91552K1025

main91552-K1025

9167281025

main91672-81025

9356054012

main93560-54012

28 parts on this diagram · 5 diagrams in section
