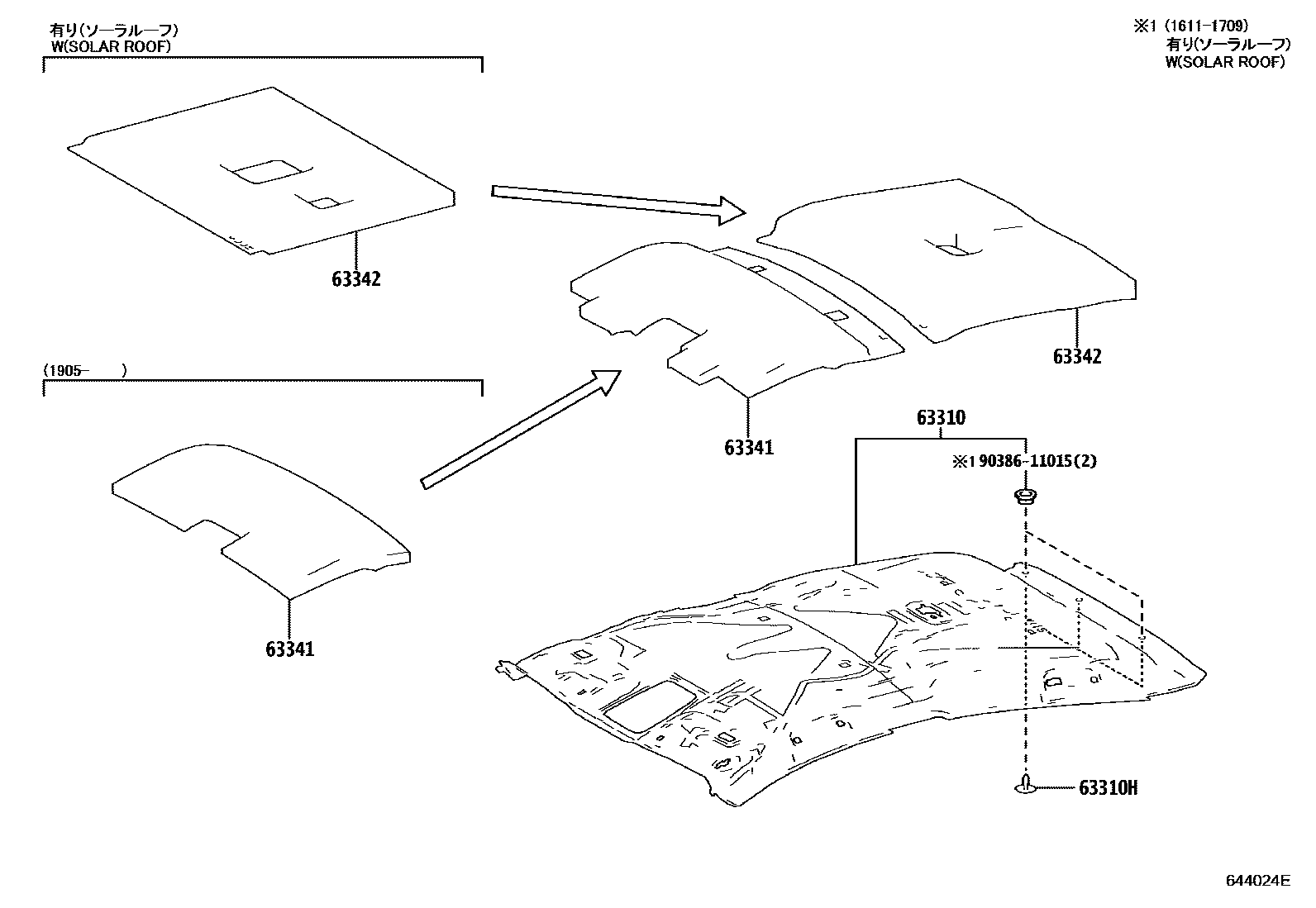

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-47180-B0iZVW52..RHD201609-201709

ENGLAND SPEC,COOL GRAY,TRIM1#,2#

main63310-47181-B0iZVW52..RHD201905

ENGLAND SPEC,COOL GRAY,TRIM1#,2#

main63310-47240-B0supersedes 63310-47161-B0iZVW52201609-201709

SOLAR ROOF-WITH,COOL GRAY,TRIM1#,2#

main63310-47241-B0supersedes 63310-47161-B0iZVW52201709-201904

SOLAR ROOF-WITH,COOL GRAY,TRIM1#,2#

main63310-47250-B0iZVW52..RHD201609-201709

ENGLAND SPEC&SOLAR ROOF-WITH,COOL GRAY,TRIM1#,2#

main63310-47251-B0iZVW52..RHD201709-201904

ENGLAND SPEC&SOLAR ROOF-WITH,COOL GRAY,TRIM1#,2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-P9×3iZVW52201609-201708

COOL GRAY,TRIM1#,2#

main90467-05168-B2×3iZVW52201905

COOL GRAY,TRIM1#,2#

63341PAD, ROOF SILENCER, NO.1

main63341-47070iZVW52201609-201904

main63341-47090iZVW52201905

63342PAD, ROOF SILENCER, NO.2

main63342-47160iZVW52; ZVW52..RHD201609-201904

ENGLAND SPEC&SOLAR ROOF-WITH; SOLAR ROOF-WITH

9038611015

main90386-11015

5 parts on this diagram · 1 diagram in section
