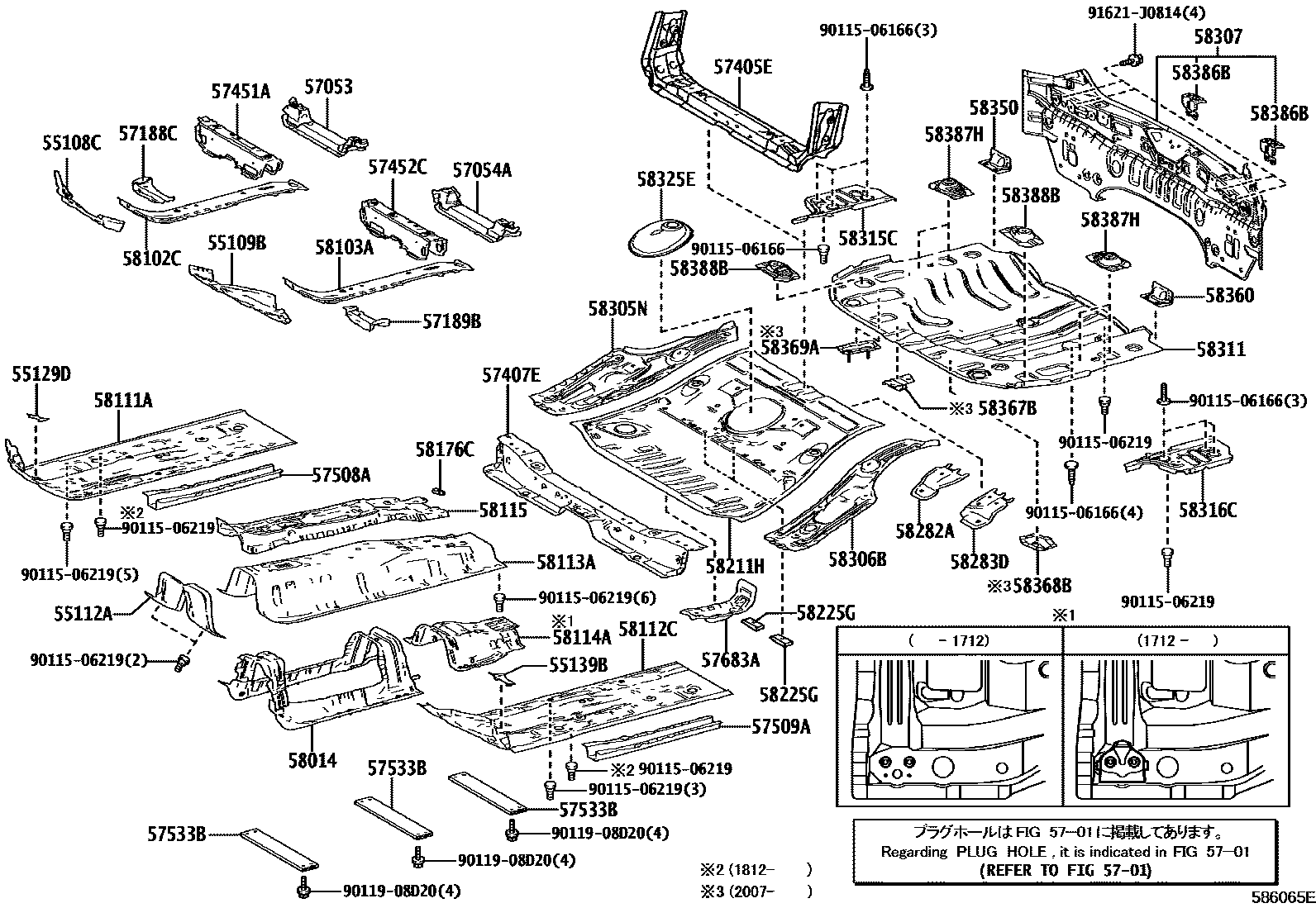

FLOOR PAN & LOWER BACK PANEL
55109BBRACE SUB-ASSY, DASH TO FRAME, LH
55112APANEL, DASH, NO.2
55139BCOVER, DASH PANEL HOLE, LH
5701
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
57683ABRACKET, FUEL TANK MOUNTING, NO.1
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58113APANEL, FRONT FLOOR, CENTER
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58225GPLATE, FLOOR PANEL FRONT END
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
58387HPLATE, REAR FLOOR
58388BBRACKET, PLATE REAR FLOOR
9011506166
main90115-06166
9011506219
main90115-06219
9011908D20
main90119-08D20
91621J0814
main91621-J0814
50 parts on this diagram · 3 diagrams in section
