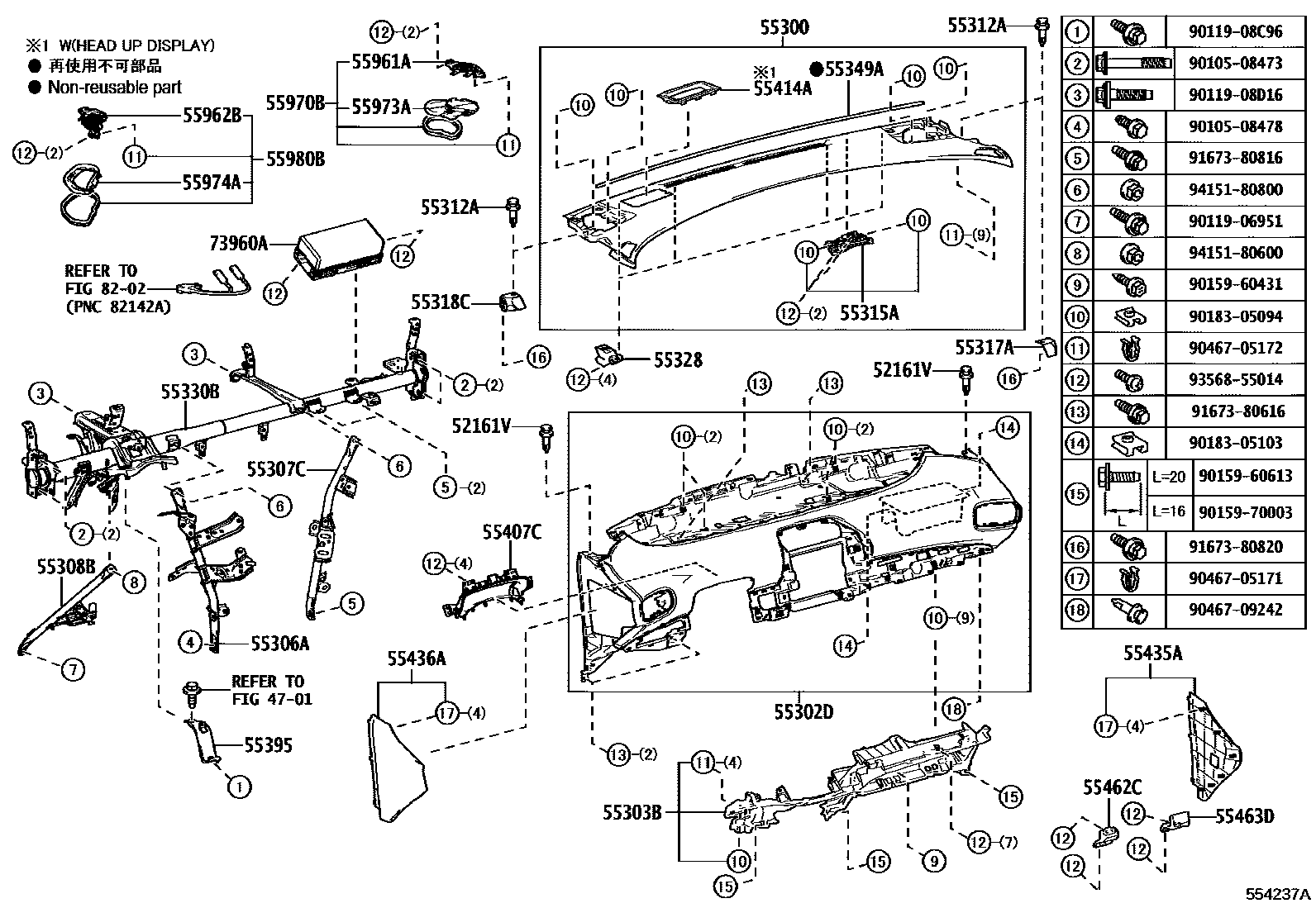

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1TYPE A 0002 1TYPE B 0003 1DRIVER SIDE 0004 1CENTER 0005 1PASSENGER SIDE 0006 1TYPE A 0007 1TYPE B 0008 1DRIVER SIDE 0009 1CENTER 0010 1PASSENGER SIDE

4701

52161VPIECE, INSTRUMENT PANEL

main52161-16010iZVW52201609-201904

sub52161-0K040

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-47320-C0iZVW52..LHD201609-201610

BLACK,TRIM1#,2#

main55300-47321-C0iZVW52..LHD201610-201904

BLACK,TRIM1#,2#

main55300-47340-C0iZVW52..RHD201609-201610

BLACK,TRIM1#,2#

main55300-47341-C0iZVW52..RHD201610-201904

BLACK,TRIM1#,2#

55302DPANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1

main55302-47130-B1iZVW52..LHD201609-201610

COOL GRAY/BLACK,TRIM1#,TYPE A:REFER ILLUST.

main55302-47130-C1iZVW52..LHD201609-201610

BLACK,TRIM2#,TYPE A:REFER ILLUST.

main55302-47131-B1iZVW52..LHD201905

COOL GRAY/BLACK,TRIM1#

main55302-47131-B1iZVW52..LHD201609-201904

COOL GRAY/BLACK,TRIM1#,TYPE B:REFER ILLUST.

main55302-47131-C1iZVW52..LHD201905

BLACK,TRIM2#

main55302-47131-C1iZVW52..LHD201609-201904

BLACK,TRIM2#,TYPE B:REFER ILLUST.

main55302-47140-B0iZVW52..RHD201609-201610

COOL GRAY/BLACK,TRIM1#,TYPE A:REFER ILLUST.

main55302-47140-C1iZVW52..RHD201609-201610

BLACK,TRIM2#,TYPE A:REFER ILLUST.

main55302-47141-B0iZVW52..RHD201609-201904

COOL GRAY/BLACK,TRIM1#,TYPE B:REFER ILLUST.

main55302-47141-B0iZVW52..RHD201905

COOL GRAY/BLACK,TRIM1#

main55302-47141-C1iZVW52..RHD201905

BLACK,TRIM2#

main55302-47141-C1iZVW52..RHD201609-201904

BLACK,TRIM2#,TYPE B:REFER ILLUST.

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47080-C0iZVW52..LHD201609-201610

BLACK,TRIM1#,2#,TYPE A:REFER ILLUST.

main55303-47081-C0iZVW52..LHD201905

BLACK,TRIM1#,2#

main55303-47081-C0iZVW52..LHD201609-201904

BLACK,TRIM1#,2#,TYPE B:REFER ILLUST.

main55303-47090-C0iZVW52..RHD201609-201610

BLACK,TRIM1#,2#,TYPE A:REFER ILLUST.

main55303-47091-C0iZVW52..RHD201905

BLACK,TRIM1#,2#

main55303-47091-C0iZVW52..RHD201609-201904

BLACK,TRIM1#,2#,TYPE B:REFER ILLUST.

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47100iZVW52..LHD201609-201904

main55306-47110iZVW52..RHD201609-201904

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47050iZVW52..LHD201609-201904

main55307-47060iZVW52..RHD201609-201904

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-47040iZVW52..LHD201609-201904

main55308-47050iZVW52..RHD201609-201904

55312ACLIP, INSTRUMENT PANEL

main52161-16010iZVW52201609-201904

sub52161-0K040

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-47080iZVW52..LHD201609-201904

main55315-47090iZVW52..RHD201609-201904

55317APANEL, INSTRUMENT SIDE, RH

main55317-47060iZVW52201609-201904

55318CPANEL, INSTRUMENT SIDE, LH

main55318-47070iZVW52201609-201904

55328PIN, INSTRUMENT PANEL, NO.1

main55328-47170iZVW52201609-201904

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47161iZVW52..LHD201609-201904

main55330-47171iZVW52..RHD201609-201904

55349ACUSHION, INSTRUMENT PANEL

main55349-47030iZVW52201609-201904

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-47010iZVW52..LHD201609-201904

main55395-47020iZVW52..RHD201609-201904

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-47010iZVW52..LHD201609-201904

main55407-47020iZVW52..RHD201609-201904

55414APANEL, INSTRUMENT CLUSTER FINISH, END

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47050-C0iZVW52..RHD201609-201904

BLACK,TRIM1#,2#

main55435-47060-C0iZVW52..LHD201609-201904

BLACK,TRIM1#,2#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47050-C0iZVW52..LHD201609-201904

BLACK,TRIM1#,2#

main55436-47060-C0iZVW52..RHD201609-201904

BLACK,TRIM1#,2#

55462CBRACKET, KNEE PROTECTOR, NO.2

main55462-47050iZVW52..LHD201609-201904

55463DBRACKET, KNEE PROTECTOR, NO.3

main55463-47070iZVW52..LHD201609-201904

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-47040-C0iZVW52201609-201904

BLACK,TRIM1#,2#

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-47020-C0iZVW52201609-201904

BLACK,TRIM1#,2#

55970BNOZZLE ASSY, SIDE DEFROSTER, RH

main55970-47010-C0iZVW52201609-201904

BLACK,TRIM1#,2#

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-47060iZVW52201609-201904

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-47020iZVW52201609-201904

55980BNOZZLE ASSY, SIDE DEFROSTER, LH

main55980-47010-C0iZVW52201609-201904

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47100iZVW52201609-202001

sub73960-47130

main73960-47150iZVW52202001

8202

9010508473

main90105-08473

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9015960431

main90159-60431

9015960613

main90159-60613

9015970003

main90159-70003

9018305094

main90183-05094

9018305103

main90183-05103

9046705171

main90467-05171

9046705172

main90467-05172

9046709242

main90467-09242

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

49 parts on this diagram · 10 diagrams in section
