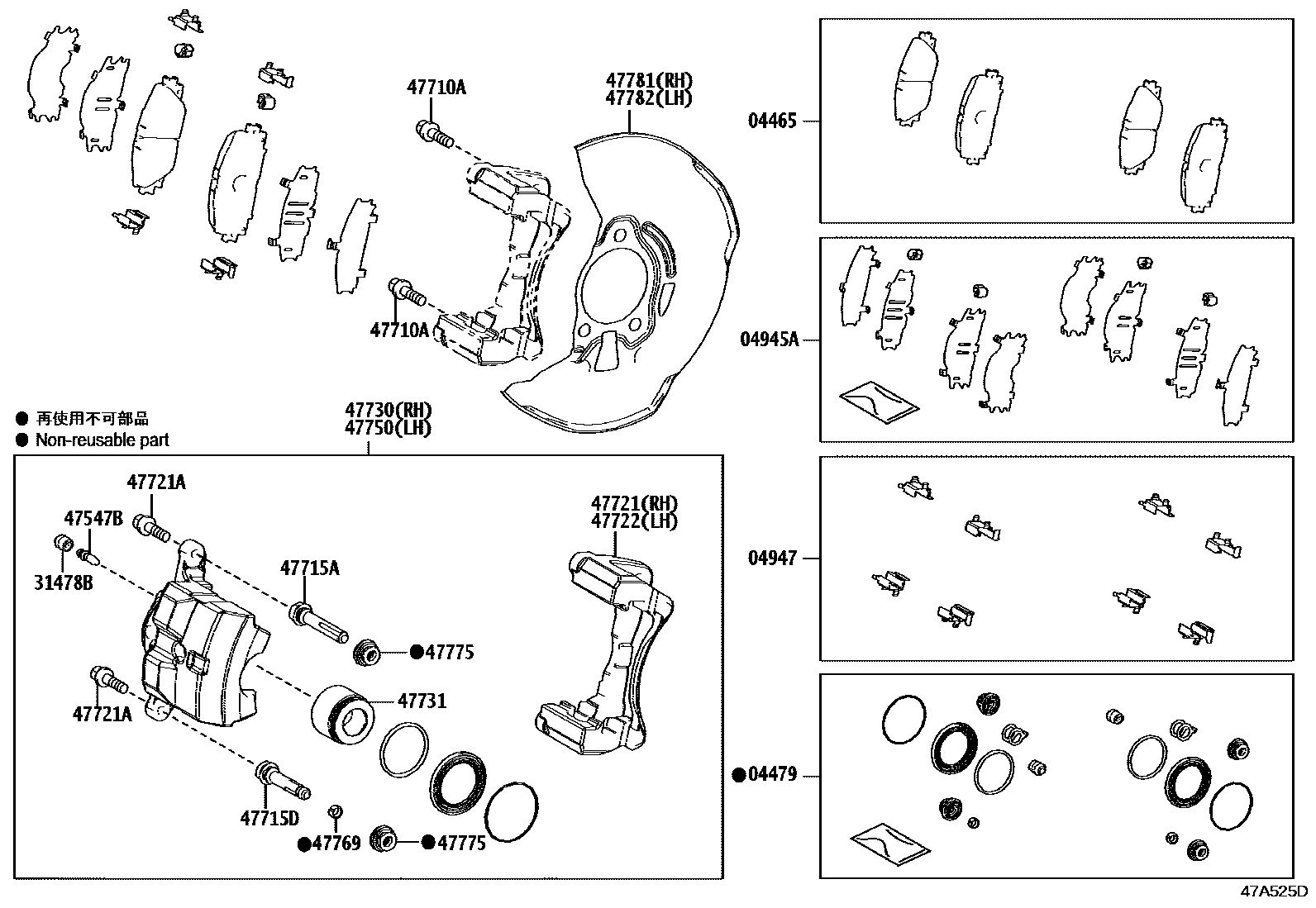

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12670i201905

MARK ADVICS VC084H

main04465-47100i201609-201904

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12130i201905

main04478-47030i201609-201904

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-12120i201905-202211

main04945-47030i201609-201904

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47020i201609-201904

main04947-47030i201905

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i201905

main31478-50020i201609-201904

TAIWAN SPEC

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i201609-201904

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i201609-201904

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190i201609-201904

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10i201609-201904

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12B10i201905

main47721-47060i201609-201904

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164i201609-201904

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12B10i201905

main47722-47060i201609-201904

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12B10i201905

main47730-47060i201609-201904

47731PISTON, FRONT DISC BRAKE

main47731-47060i201609-201904

main47731-52210i201905

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12B10i201905

main47750-47060i201609-201904

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i201905

main47769-50010i201609-201904

TAIWAN SPEC

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190i201609-201904

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-10080i201804-201904

main47781-47040i201609-201803

sub47781-10080

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-10080i201804-201904

main47782-47030i201609-201803

sub47782-10080

19 parts on this diagram · 2 diagrams in section
