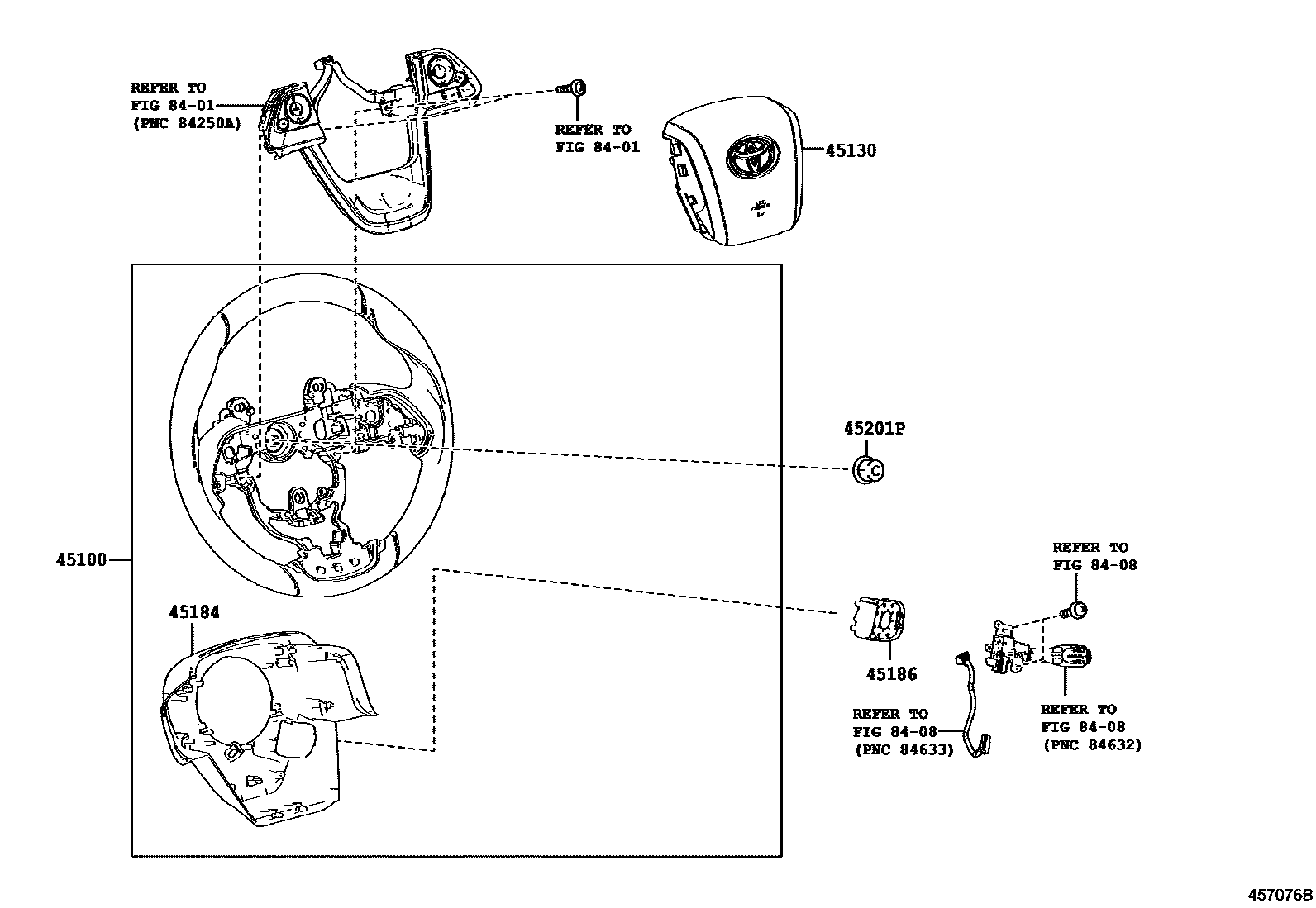

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-47240-C0iZVW52201609-201904

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

main45100-47240-C0iZVW52201905

3-SPOKE,LEATHER,BLACK,TRIM1#,2#

45130BUTTON ASSY, HORN

main45130-47241-C0iZVW52201609-201904

BLACK,TRIM1#,2#,4#

sub45130-47242

main45130-47241-C0iZVW52201905-202208

BLACK,TRIM1#,2#

sub45130-47242

main45130-47242-C0iZVW52202209

BLACK,TRIM1#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-47040-C0iZVW52201609-201904

BLACK,TRIM1#,2#,4#

main45184-47040-C0iZVW52201905

BLACK,TRIM1#,2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-47050-C0iZVW52201609-201904

BLACK,TRIM1#,2#

45201PNUT, STEERING WHEEL SET

main90179-12071iZVW52201609-201904

8401

8408

7 parts on this diagram · 1 diagram in section
