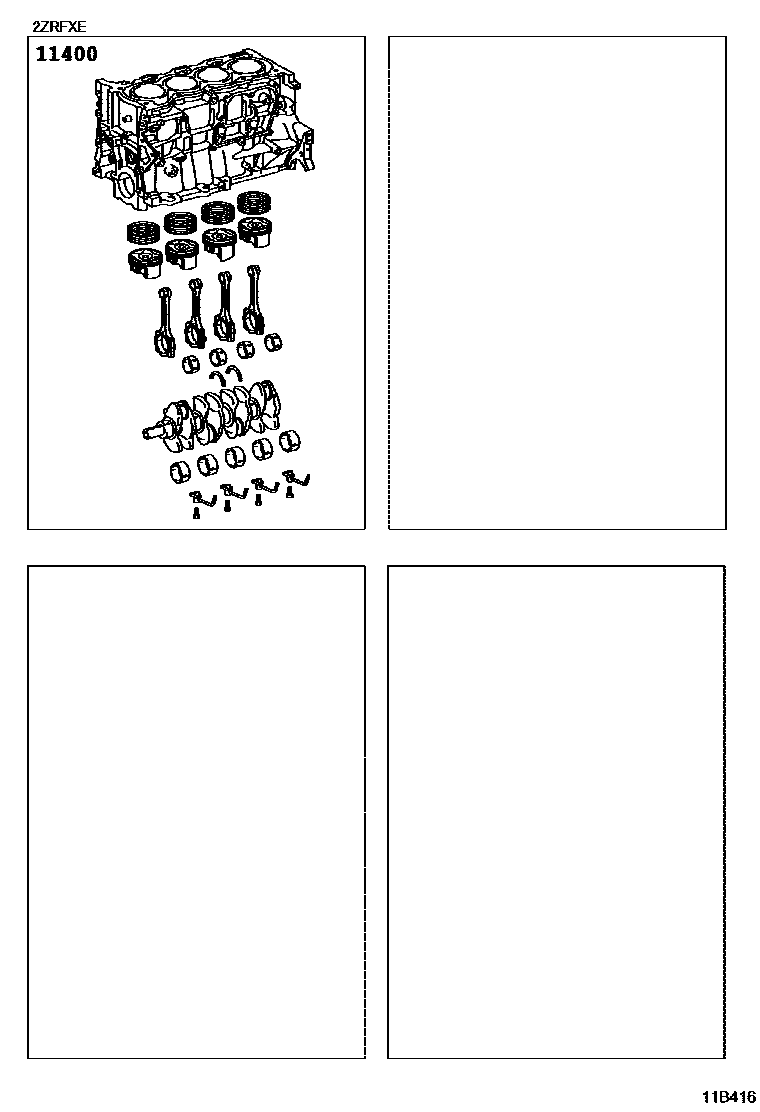

SHORT BLOCK ASSEMBLY

Parts diagram

11400BLOCK ASSY, SHORT

main11400-37280i201609-201904

main11400-37350i202007-202110

main11400-37370i202110

main11400-37380i202110

TAIWAN SPEC

1 parts on this diagram · 1 diagram in section
