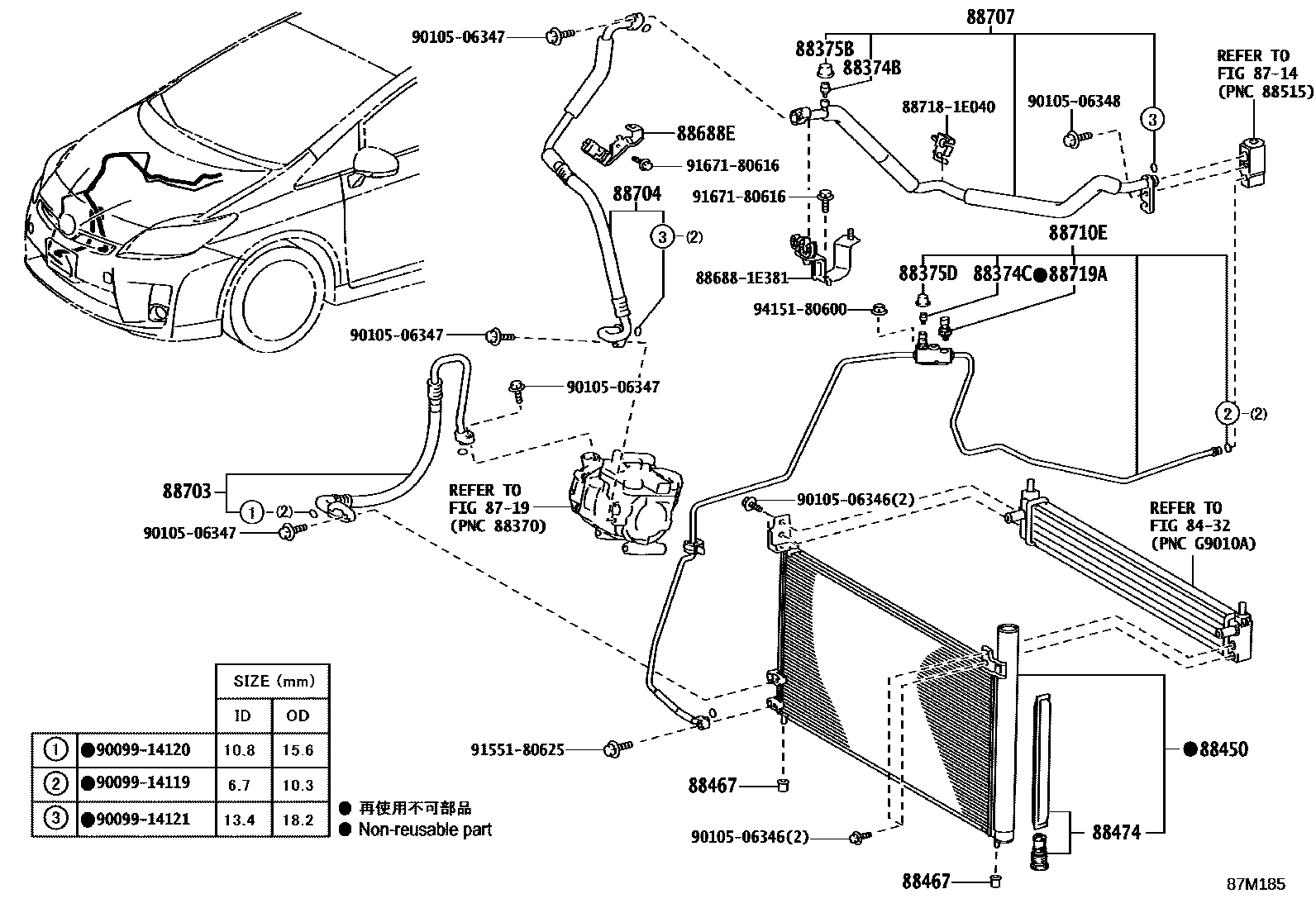

HEATING & AIR CONDITIONING - COOLER PIPING

8432INVERTER COOLING

→ Go to FIG 84-32

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZVW35201205

88374CVALVE, SERVICE, NO.2

main88374-30010iZVW35201205

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZVW35201205

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZVW35201205

88450CONDENSER ASSY, W/RECEIVER

main88460-47150iZVW35201205-201604

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZVW35201205-201604

88474DRYER, COOLER

main88474-47030iZVW35201205

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-47150iZVW35201205

88703HOSE SUB-ASSY, DISCHARGE

main88703-47040iZVW35201205

88704HOSE SUB-ASSY, SUCTION

main88704-47090iZVW35201205

88707PIPE SUB-ASSY, SUCTION

main88707-47041iZVW35201205

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47150iZVW35201205

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZVW35201205

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

887181E040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1E040

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

9155180625

main91551-80625

9167180616

main91671-80616

9415180600

main94151-80600

27 parts on this diagram · 1 diagram in section
