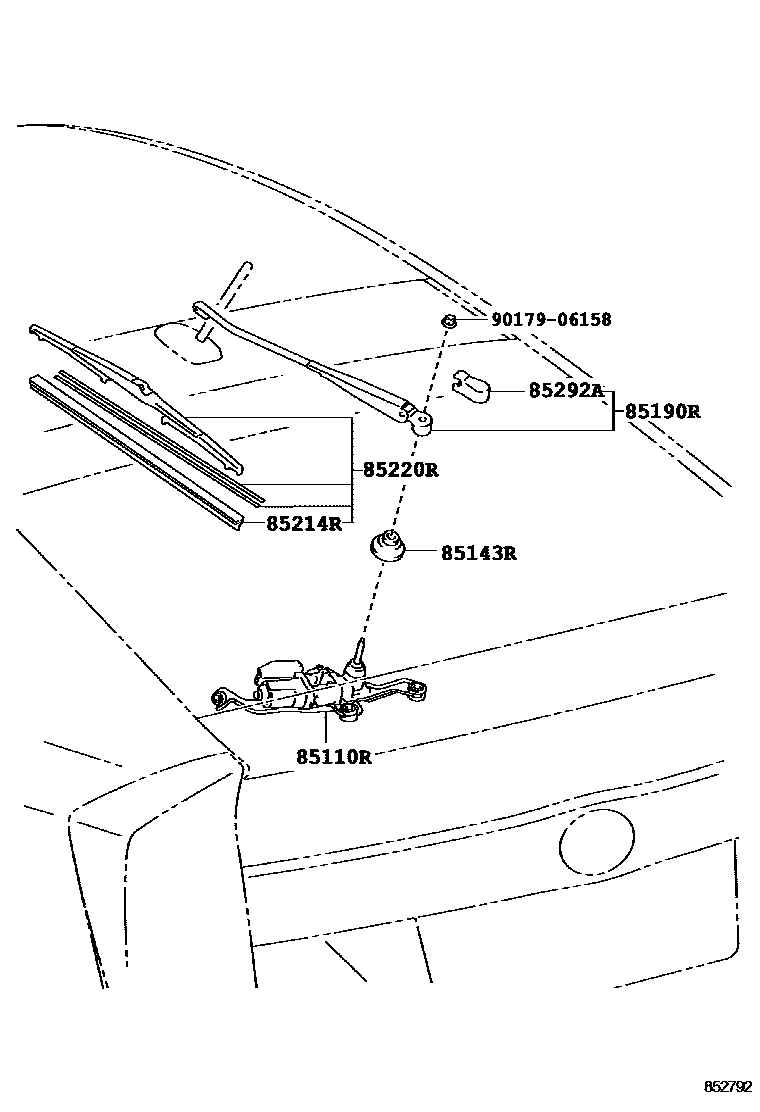

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-47021iZVW35201205

85143RGROMMET, REAR WIPER MOTOR

main85143-72010iZVW35201205

85190RARM ASSY, REAR WIPER

main85241-47040iZVW35201205

85214RRUBBER, REAR WIPER

main85214-50061iZVW35201205

85220RBLADE ASSY, REAR WIPER

main85242-47040iZVW35201205

85292ACAP, REAR WIPER ARM HEAD

main85192-13060iZVW35201205

9017906158

main90179-06158

7 parts on this diagram · 1 diagram in section
