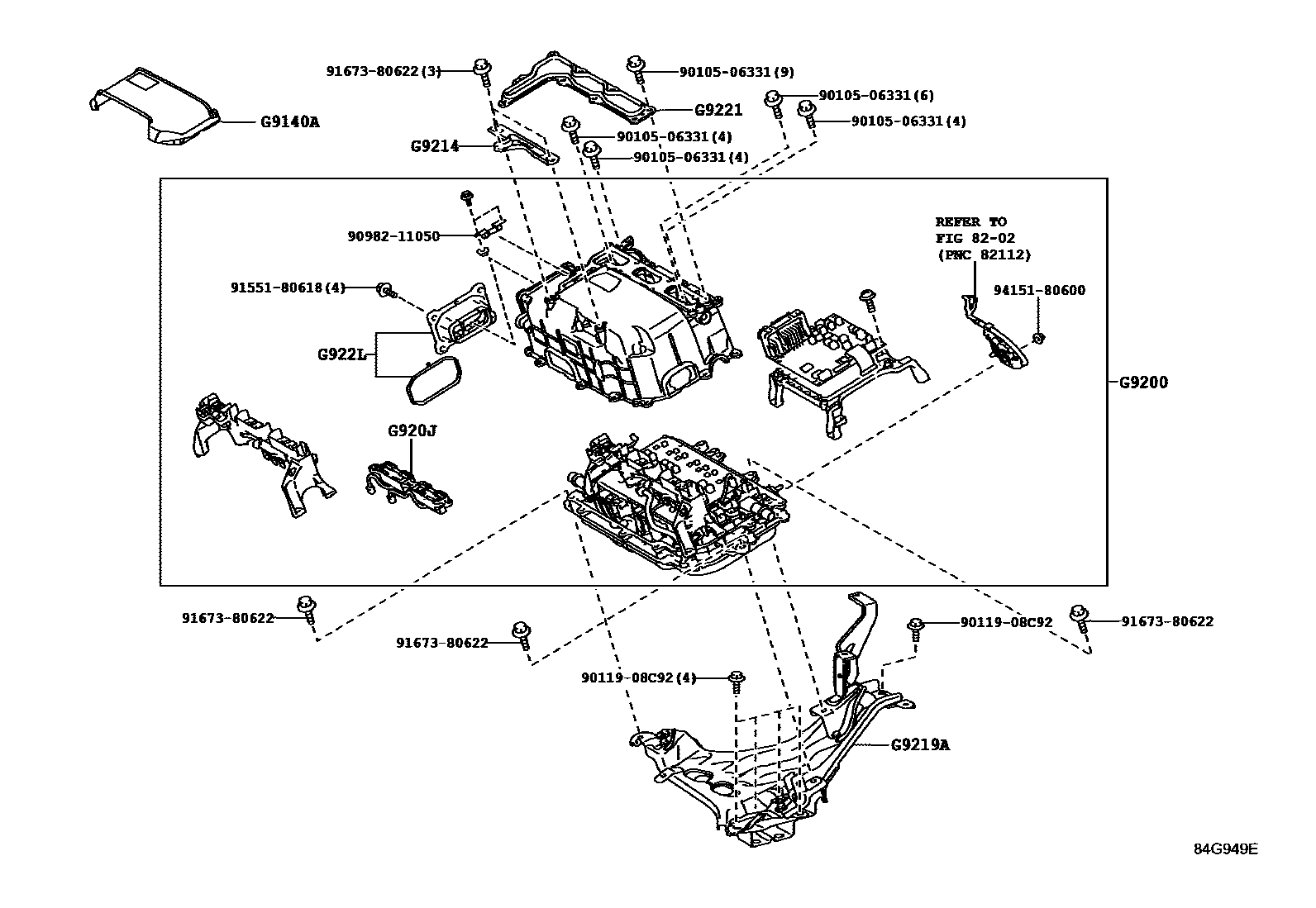

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

8202WIRING & CLAMP

→ Go to FIG 82-02

G9140ACOVER ASSY, INVERTER, LH

mainG914047010iZVW35201210

G9200INVERTER ASSY, W/CONVERTER

mainG920049045iZVW35201205-201310

mainG920049046iZVW35201310

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010iZVW35201205

G9214BRACKET, INVERTER, NO.1

mainG921447050iZVW35201205-201308

mainG921447060iZVW35201309

G9219ABRACKET, INVERTER TRAY

mainG911047011iZVW35201205-201309

mainG911047030iZVW35201310

G9221COVER, INVERTER

mainG902247041iZVW35201205

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iZVW35201205

9010506331

main90105-06331

9011908C92

main90119-08C92

9098211050

main90982-11050

9155180618

main91551-80618

9167380622

main91673-80622

9415180600

main94151-80600

14 parts on this diagram · 3 diagrams in section
