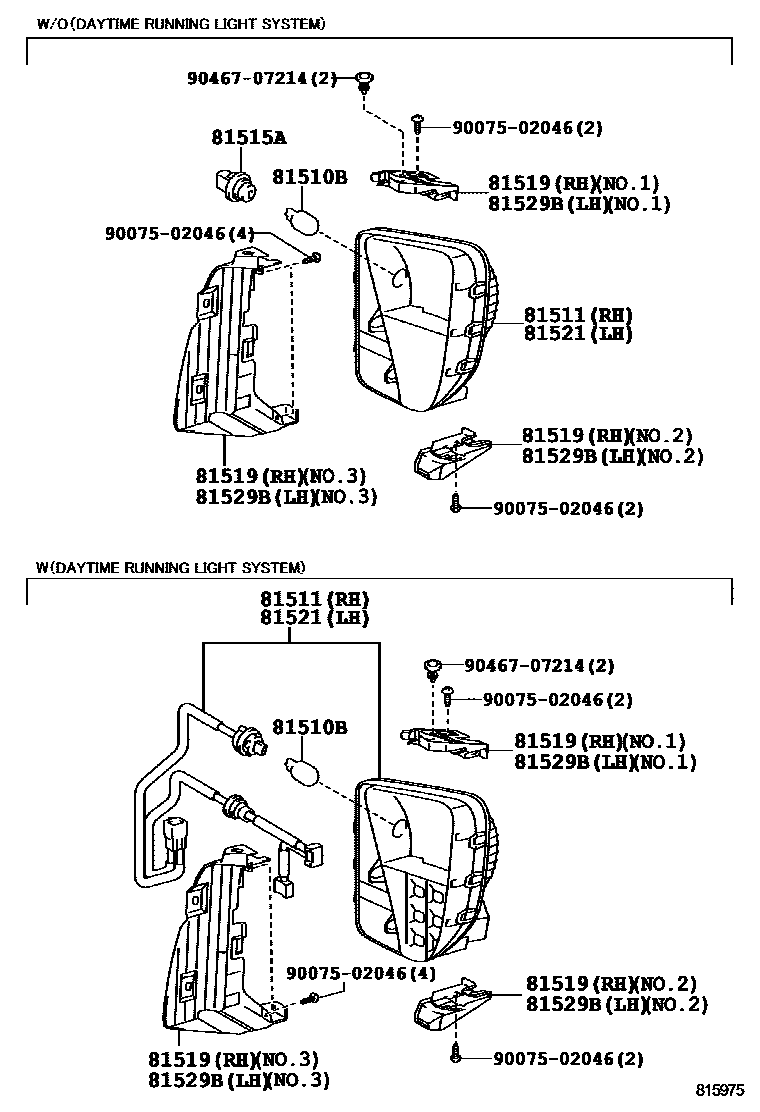

FRONT TURN SIGNAL LAMP

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZVW35201205

12V 21W,AMBER

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-47040supersedes 81511-47050iZVW35201205-201506

DAYTIME RUNNING LIGHT SYSTEM-WITHOUT

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-60028×2iZVW35201205-201506

DAYTIME RUNNING LIGHT SYSTEM-WITHOUT

81519BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-47040iZVW35201205

NO.1

main81519-47050iZVW35201205

NO.2

main81519-47060iZVW35201205

NO.3

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-47040supersedes 81521-47050iZVW35201205-201506

DAYTIME RUNNING LIGHT SYSTEM-WITHOUT

81529BBRACKET, FRONT TURN SIGNAL LAMP, LH

main81529-47040iZVW35201205

NO.1

main81529-47050iZVW35201205

NO.2

main81529-47060iZVW35201205

NO.3

9007502046

main90075-02046

9046707214

main90467-07214

8 parts on this diagram · 1 diagram in section
