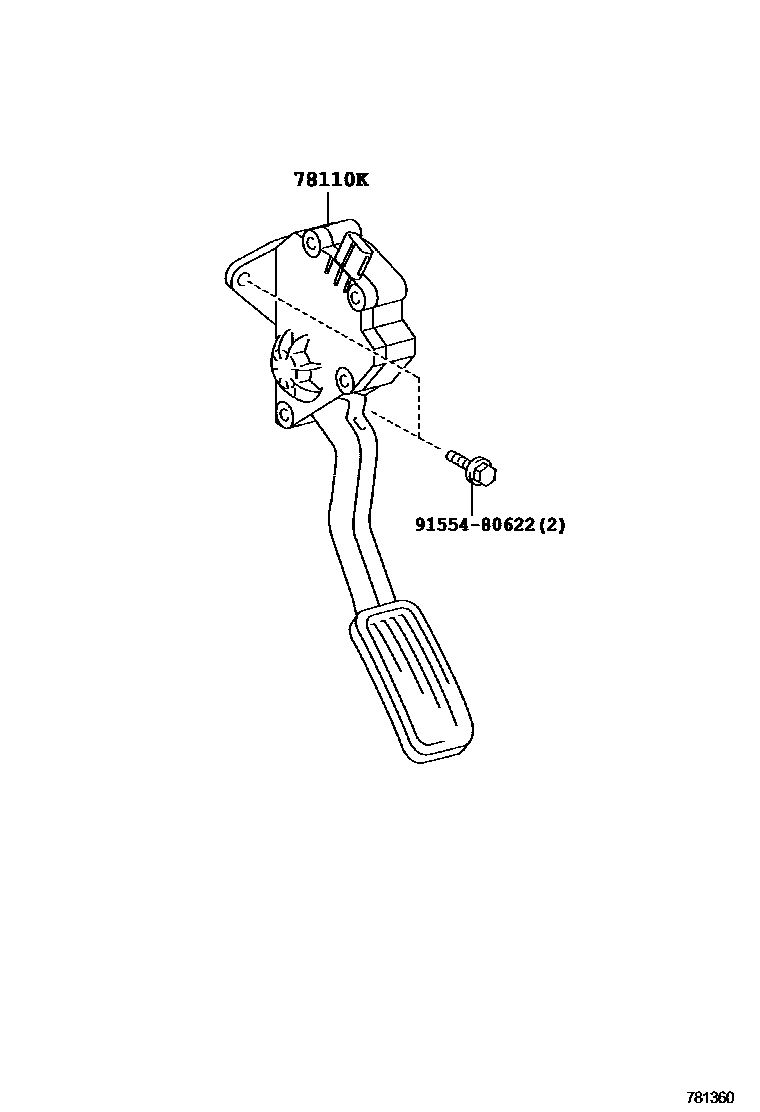

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-12050iZVW35..LHD201205-201601

sub78110-12052

main78110-12052iZVW35..LHD201602

main78110-12060iZVW35..RHD201205-201405

sub78110-12061

main78110-47010iZVW35..RHD201405-201407

sub78110-47011

main78110-47011iZVW35..RHD201408-201601

sub78110-47012

main78110-47012iZVW35..RHD201602

9155480622

main91554-80622

2 parts on this diagram · 2 diagrams in section
