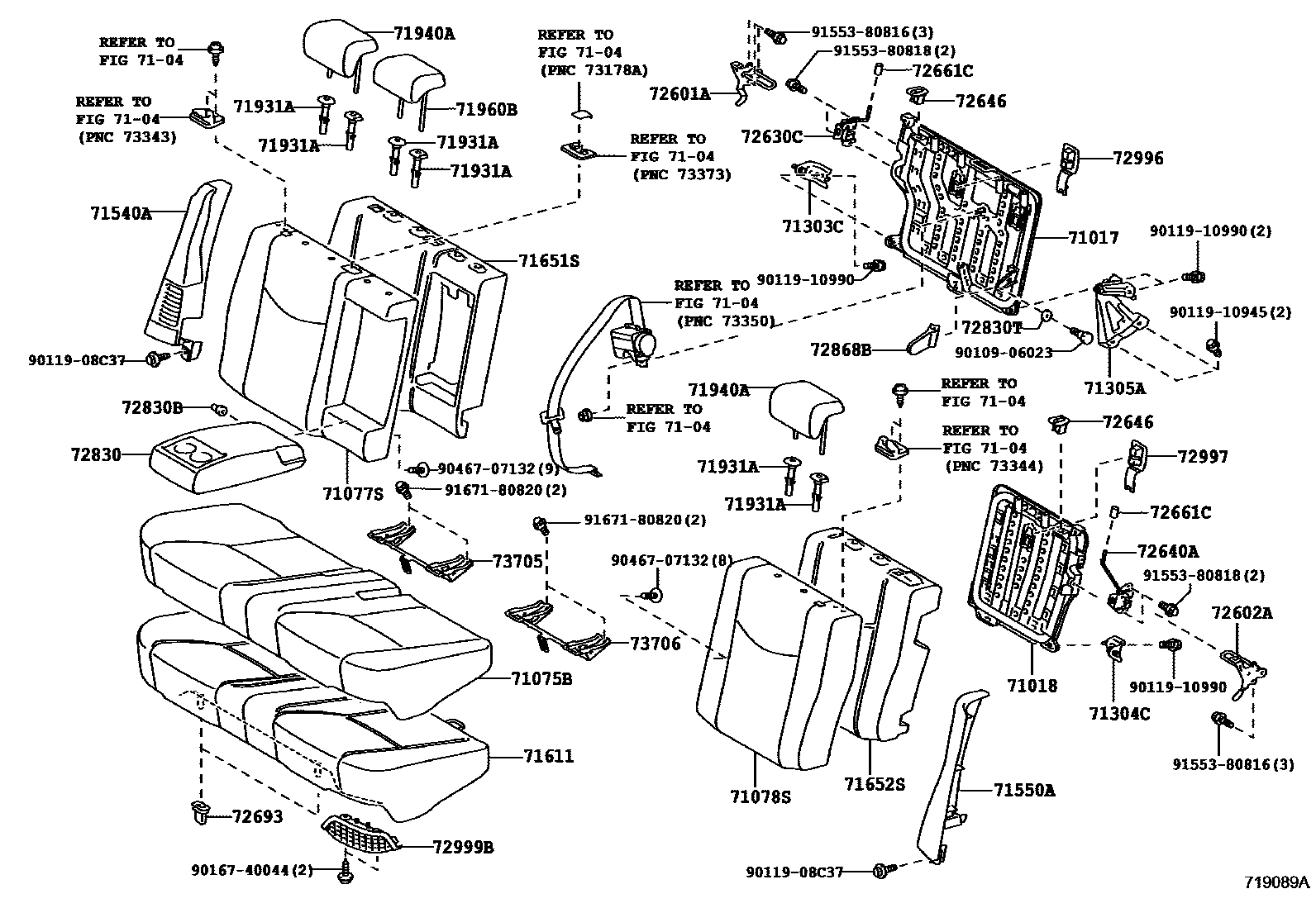

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47090i201205

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47050i201205

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47250-C4i201205-201604

BLACK,TRIM2#

main71075-47240-C2i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71075-47240-G2i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71075-47260-C4i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71075-47260-G5i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47371-C6i201205-201604

BLACK,TRIM2#

main71077-47242-C2i201205-201507

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71077-47242-G4i201205-201507

SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#

main71077-47301-C4i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71077-47301-G9i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47240-C6i201205-201604

BLACK,TRIM2#

main71078-47161-C2i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71078-47161-G4i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA/LT.GRAY,TRIM6#

main71078-47190-C4i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71078-47190-G9i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47020i201205

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47020i201205

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47030i201205

71540ABACK ASSY, REAR SIDE SEAT, RH

main71540-47061-C7i201205-201504

BLACK,TRIM2#

main71540-47061-G9i201205-201504

AQUA,TRIM6#

main71540-47062-C7i201505-201604

BLACK,TRIM2#

main71540-47040-C3i201205-201504

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71540-47040-G3i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71540-47041i201505-201507

SEAT COVER MATERIAL-FABRIC

71550ABACK ASSY, REAR SIDE SEAT, LH

main71550-47061-C7i201205-201604

BLACK,TRIM2#

main71550-47061-G9i201205-201507

AQUA,TRIM6#

main71550-47040-C3i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71550-47040-G3i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

71611PAD, REAR SEAT CUSHION

main71503-47110i201205

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47120i201205

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47060i201205

71931ASUPPORT, REAR SEAT HEADREST

main71930-47020-C0×3i201205-201604

W(LOCK),BLACK,TRIM2#

main71930-47020-G0×3i201205-201507

W(LOCK),AQUA,TRIM6#

main71931-47020-C0×3i201205-201604

W/O(LOCK),BLACK,TRIM2#

main71931-47020-G0×3i201205-201507

W/O(LOCK),AQUA,TRIM6#

71940AHEADREST ASSY, REAR SEAT

main71940-47300-C5×2i201205-201604

BLACK/LT.GRAY,TRIM2#

main71940-47120-C0×2i201205-201507

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71940-47120-G1×2i201205-201507

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71940-47150-C4×2i201507-201604

UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),BLACK,TRIM2#

main71940-47150-G5×2i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47160-C5i201205-201604

BLACK/LT.GRAY,TRIM2#

main71960-47070-C1i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71960-47070-G2i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71960-47090-C4i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71960-47090-G7i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47030i201205

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47020i201205

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47031i201205

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47031i201205

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-47010-C0×2i201205-201604

BLACK,TRIM2#

main72646-47010-G0×2i201205-201507

AQUA,TRIM6#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-C0×2i201205-201604

BLACK,TRIM2#

main72661-13030-G1×2i201205-201507

AQUA,TRIM6#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2i201205

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47170-C2i201205-201604

BLACK,TRIM2#

main72830-47080-C0i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main72830-47080-G1i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUQ,TRIM6#

main72830-47150-C1i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#; SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main72830-47150-G2supersedes 72830-47170-G4i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#; SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main72622-47010i201205

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main72622-47020i201205

72868BCOVER, CENTER ARMREST HINGE

main72868-47020-C0i201205-201604

BLACK,TRIM2#

main72868-47020-G0i201205-201507

AQUA,TRIM6#

72996COVER, REAR SEATBACK, RH

main72996-47030-B0i201205-201604

LT.GRAY,TRIM2#,6#

72997COVER, REAR SEATBACK, LH

main72996-47030-B0i201205-201604

LT.GRAY,TRIM2#,6#

72999BCOVER, REAR SEAT CUSHION SIDE, LH

main72999-47040-C0i201205-201604

BLACK,TRIM2#

main72999-47040-G0i201205-201507

AQUA,TRIM6#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47040i201205

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47050i201205

9010906023

main90109-06023

9011908C37

main90119-08C37

9011910945

main90119-10945

9011910990

main90119-10990

9016740044

main90167-40044

9046707132

main90467-07132

9155380816

main91553-80816

9155380818

main91553-80818

9167180820

main91671-80820

42 parts on this diagram · 1 diagram in section
