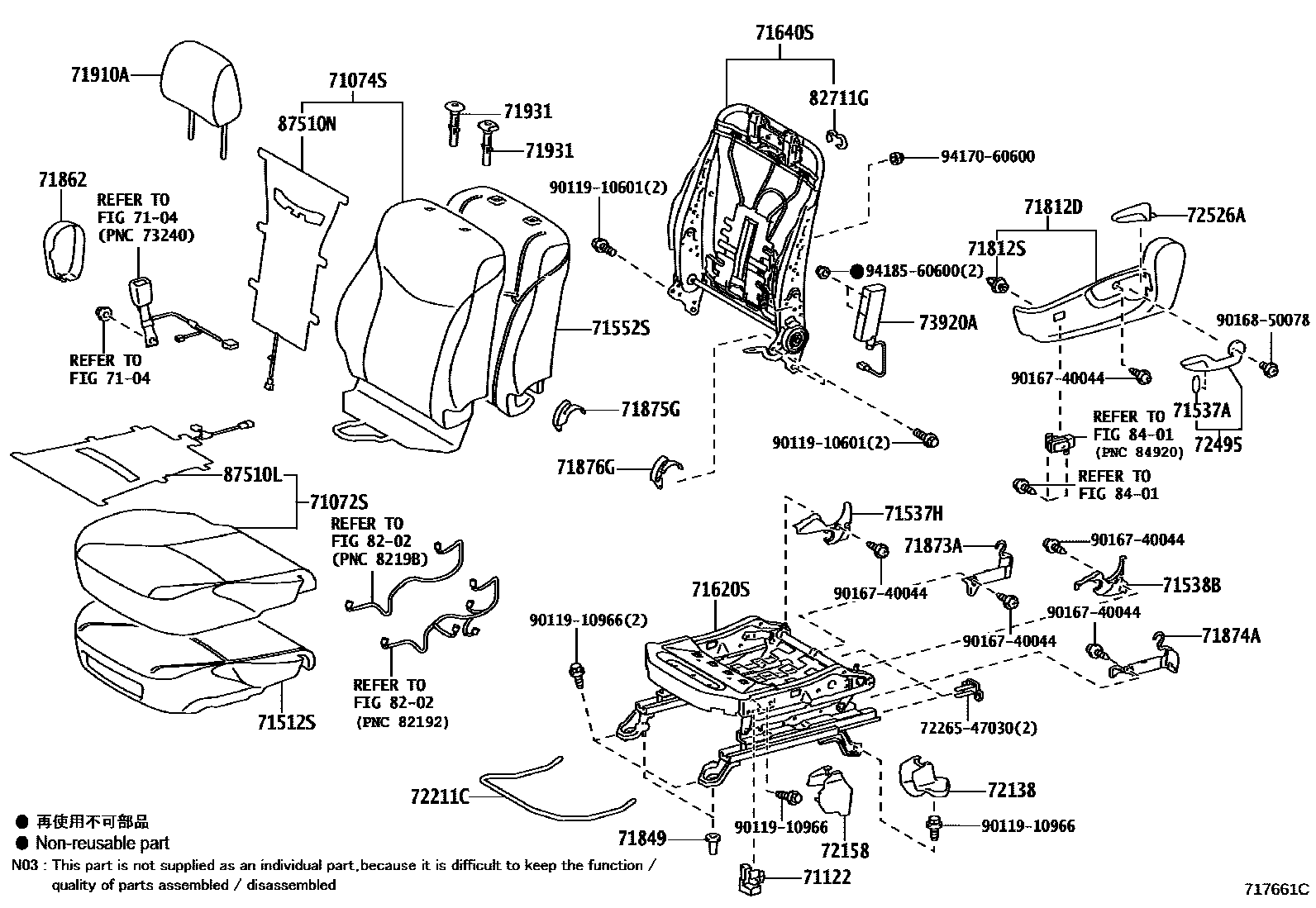

FRONT SEAT & SEAT TRACK

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-47450-C6i201205-201604

BLACK,TRIM2#

main71072-47460-C6i201205-201604

BLACK,TRIM2#

main71072-47440-C2i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71072-47440-G2i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71072-47470-C5i201205-201507

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71072-47470-G5supersedes 71072-47460-G7i201205-201507

SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

main71072-47490-C5i201507-201604

UPPER PACKAGE(STEERING:LEATHER)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH),BLACK,TRIM2#

main71072-47490-G5supersedes 71072-47450-G7i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

main71072-47510-C2i201205-201507

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71072-47510-G2supersedes 71072-47450-G7i201205-201507

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-47292-C6i201310-201604

BLACK,TRIM2#

main71074-47270-C2supersedes 71074-47291-C5i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71074-47270-G2supersedes 71074-47291-G6i201205-201310

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71074-47271-C3i201310-201507

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71074-47271-G3i201310-201507

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71074-47300-C4supersedes 71074-47290-C5i201205-201303

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71074-47300-G4supersedes 71074-47290-G6i201205-201303

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

main71074-47301-C4supersedes 71074-47291-C5i201303-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71074-47301-G4supersedes 71074-47291-G6i201303-201310

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

main71074-47302-C5i201310-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71074-47302-G5supersedes 71074-47292-G7i201310-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71122BRACKET, FRONT SEAT CUSHION, LH

main71122-47010i201205

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71502-47010i201205

main71512-47070i201205

71537APROTECTOR, FRONT SEAT CUSHION

main71537-47040i201205

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-47010-C0i201205-201604

BLACK,TRIM2#

main71537-47010-G0i201205-201507

AQUA,TRIM6#

main71537-47020-C0i201205-201604

BLACK,TRIM2#

main71537-47020-G0i201205-201507

AQUA,TRIM6#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-47010-C0i201205-201604

BLACK,TRIM2#

main71538-47010-G0i201205-201507

AQUA,TRIM6#

main71538-47020-C0i201205-201604

BLACK,TRIM2#

main71538-47020-G0i201205-201507

AQUA,TRIM6#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-47180i201205

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-47120i201205-201209

sub73214-75010

main71620-47121i201209

main71620-47180i201205-201209

sub73214-75010

main71620-47181i201209

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-47010i201205-201604

main71640-47050i201205-201604

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-47070-C0i201205-201604

BLACK,TRIM2#

main71812-47070-G0i201205-201507

AQUA,TRIM6#

main71812-47090-C0i201205-201604

BLACK,TRIM2#

main71812-47090-G0i201205-201507

AQUA,TRIM6#

71812SCLIP, FRONT SEAT CUSHION SHIELD, LH

main71769-47020i201205

71849CAP, SEAT ADJUSTER COVER, LH

main71848-47010×2i201205

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-47040-C0i201205-201604

BLACK,TRIM2#

main71862-47040-G0i201205-201507

AQUA,TRIM6#

main71862-47070-C0i201205-201604

BLACK,TRIM2#

main71862-47070-G0i201205-201507

AQUA,TRIM6#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040i201205

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-47040i201205

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040i201205

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040i201205

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-47030-C0i201205-201604

BLACK,TRIM2#

main71875-47030-G0i201205-201507

AQUA,TRIM6#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-47030-C0i201205-201604

BLACK,TRIM2#

main71876-47030-G0i201205-201507

AQUA,TRIM6#

71910AHEADREST ASSY, FRONT SEAT

main71910-47200-C6×2i201205-201604

BLACK/LT.GRAY,TRIM2#

main71910-47110-C1×2i201205-201310

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

main71910-47110-G2×2i201205-201507

SEAT COVER MATERIAL-FABRIC,AQUA,TRIM6#

main71910-47130-C4×2i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

main71910-47130-G5×2supersedes 71910-47200-G8i201205-201507

PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)&SEAT COVER MATERIAL-NATURAL LEATHER,AQUA,TRIM6#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-C0×2i201205-201604

W(LOCK),BLACK,TRIM2#

main71930-47020-G0×2i201205-201507

W(LOCK),AQUA,TRIM6#

main71931-47020-C0×2i201205-201604

W/O(LOCK),BLACK,TRIM2#

main71931-47020-G0×2i201205-201507

W/O(LOCK),AQUA,TRIM6#

72138COVER, SEAT TRACK, OUTER LH

main72138-47040-C0i201205-201604

BLACK,TRIM2#,6#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-47040-C0i201205-201604

BLACK,TRIM2#,6#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-47020i201205

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-47020i201205

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-47010-C0i201205-201604

BLACK,TRIM2#

main72495-47010-G0i201205-201507

AQUA,TRIM6#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-47010-C0i201205-201604

BLACK,TRIM2#

main72526-47010-G0i201205-201507

AQUA,TRIM6#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-47050i201205

8202

82711GCLAMP, WIRING HARNESS

main82711-12120i201205-201604

8401

87510LHEATER ASSY, FRONT SEAT CUSHION, LH

main87510-47070i201205

main87510-47080i201205

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-47030i201205

7226547030COVER, SEAT TRACK UPPER RAIL, RH

main72265-47030

9011910601

main90119-10601

9011910966

main90119-10966

9016740044

main90167-40044

9016850078

main90168-50078

9417060600

main94170-60600

9418560600

main94185-60600

42 parts on this diagram · 4 diagrams in section
